OddCameras.com              Mamiya Press and Super 23

This page deals with the Mamiy cameras which have rear bellows, the Mamiya Press and the Super 23.

The Mamiya Press was - as the name suggests - a
very popular press photographer's camera for the 6x7 and 6x9 format, with a large, coupled and reliable view/rangefinder, introduced in 1960. There was a 90mm standard lens, a very good 65mm wide angle with its finder and a 150mm tele lens with its mask to be clipsed into the viewfinder. Since the Press camera had built-in bellows for compensation of converging lines, there were also a ground glass and sheet film magazines available.

The Super 23 was a major redesign of the Press camera in 1967. It had a bigger view/rangerfinder with bright framelines and parallax compensation, built-in masks for the standard lenses (100mm, 150mm, and 250mm), and a sturdier lens fixation to be able to carry the new bright but heavier lenses. There were now lenses from a 50mm super wide-angle (equivalent to 21mm with 24x36mm film) to the large and heavy 250mm F5 telephoto lens.

Mamiya Press

../jpgother/mamiya_press_IMG_9227.JPG

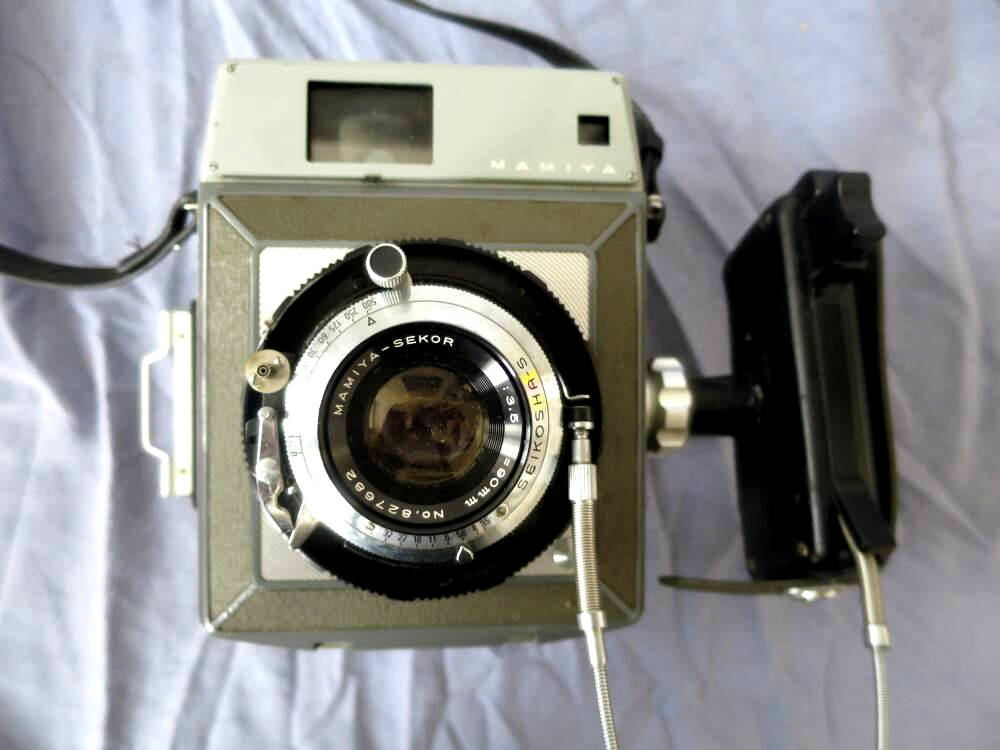

A Mamiya Press with its handle, the original 90mm lens and a ground glass/sheet film holder.

../jpgother/mamiya_press_IMG_9228.JPG

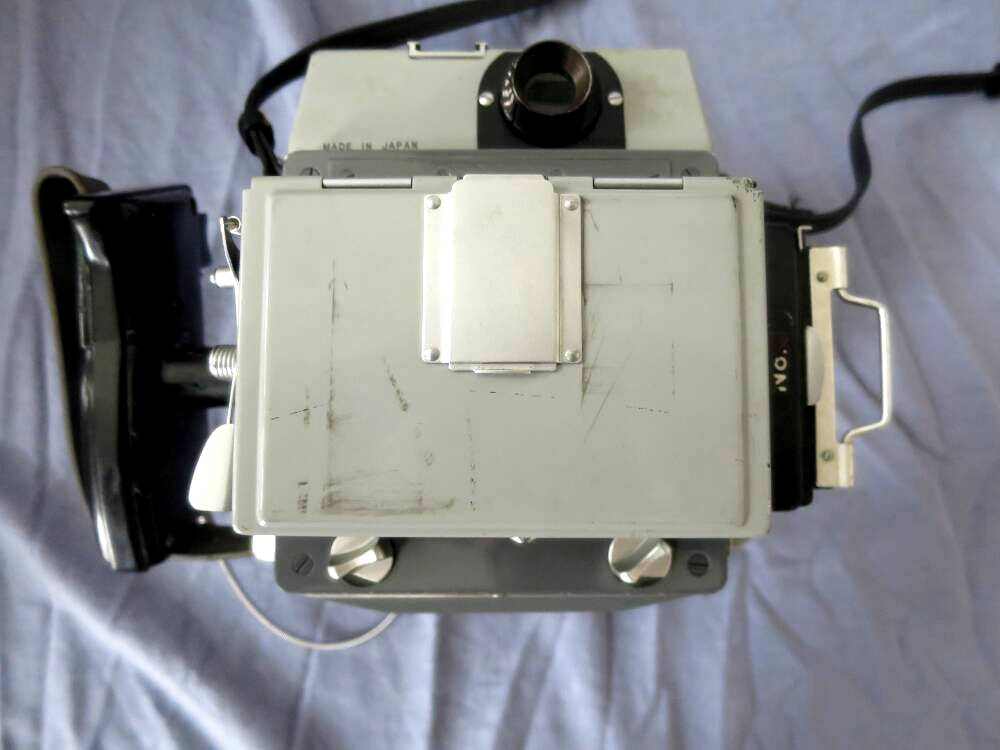

Seen from the back. Parallax compesation has to be set by shifting the eyepiece of the finder.

../jpgother/mamiya_press_IMG_9229.JPG

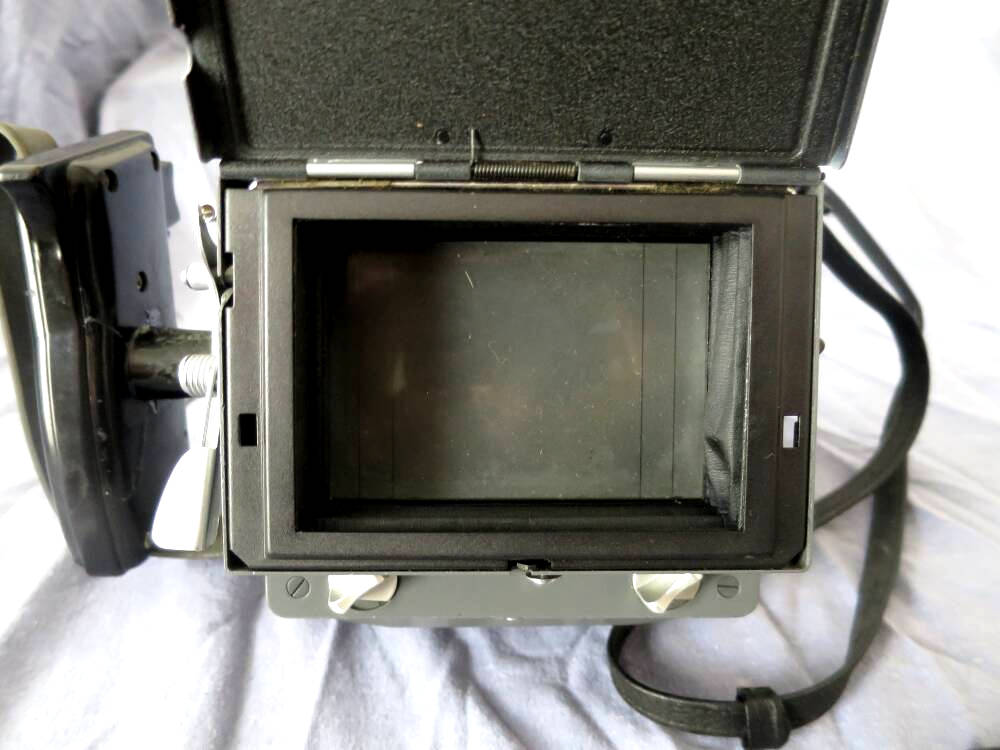

Hood of the ground glass open.

../jpgother/mamiya_press_IMG_9230.JPG

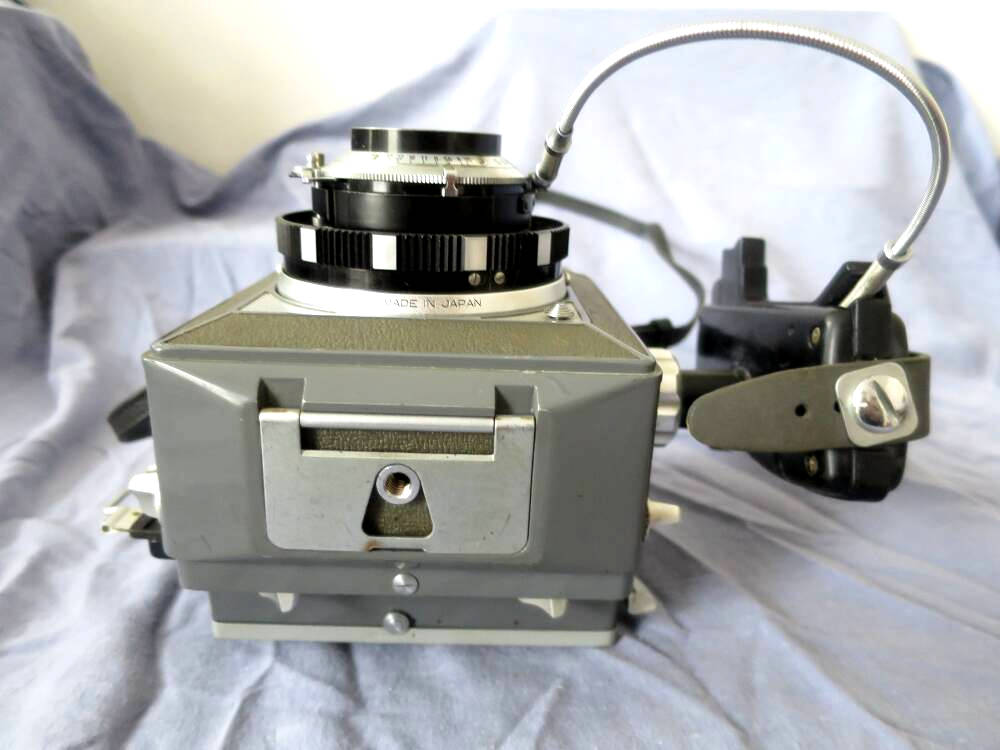

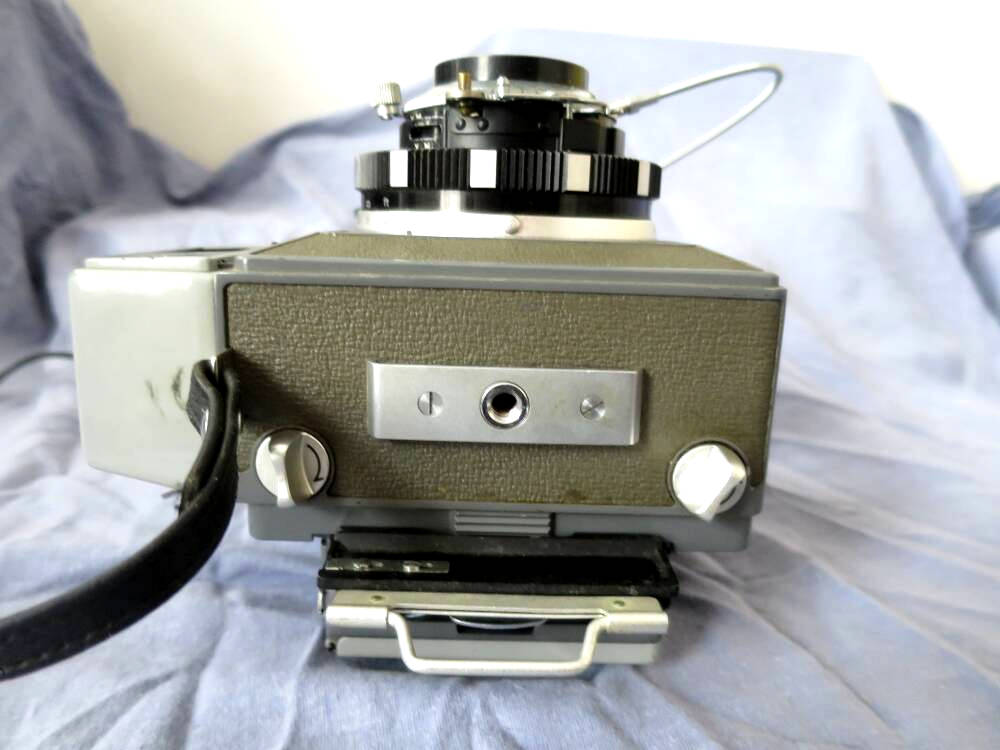

Bottom. Tripod socket. The hinged metal plate can be swung forward and keep the camera standing on a flat surface.

../jpgother/mamiya_press_IMG_9232.JPG

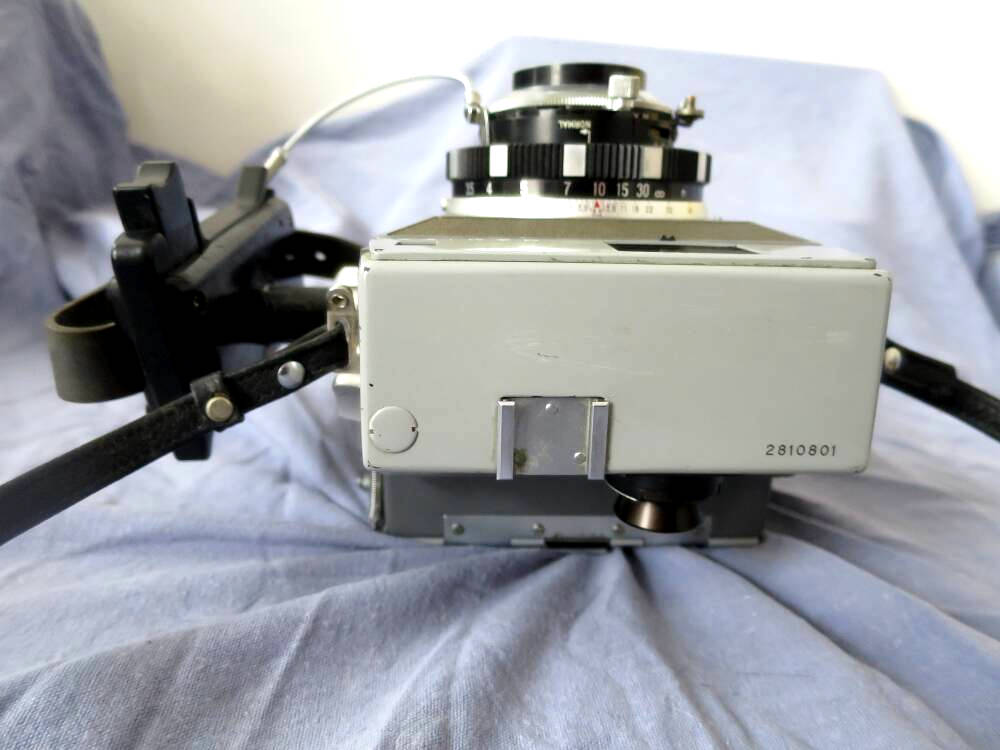

Top. the accessory shoe is offset.

../jpgother/mamiya_press_IMG_9233.JPG
Right side.

../jpgother/mamiya_press_IMG_9231.JPG
Left side. Flash fixation.

This is a typical Press camera set-up. I boughr this camera from an American photographer who said that it served him in the Vietnam war. I cannot confirn this, anyway, it's an early model.

Sheet film

../jpgother/mamiya_23_foc_screen_IMG_9240.JPG

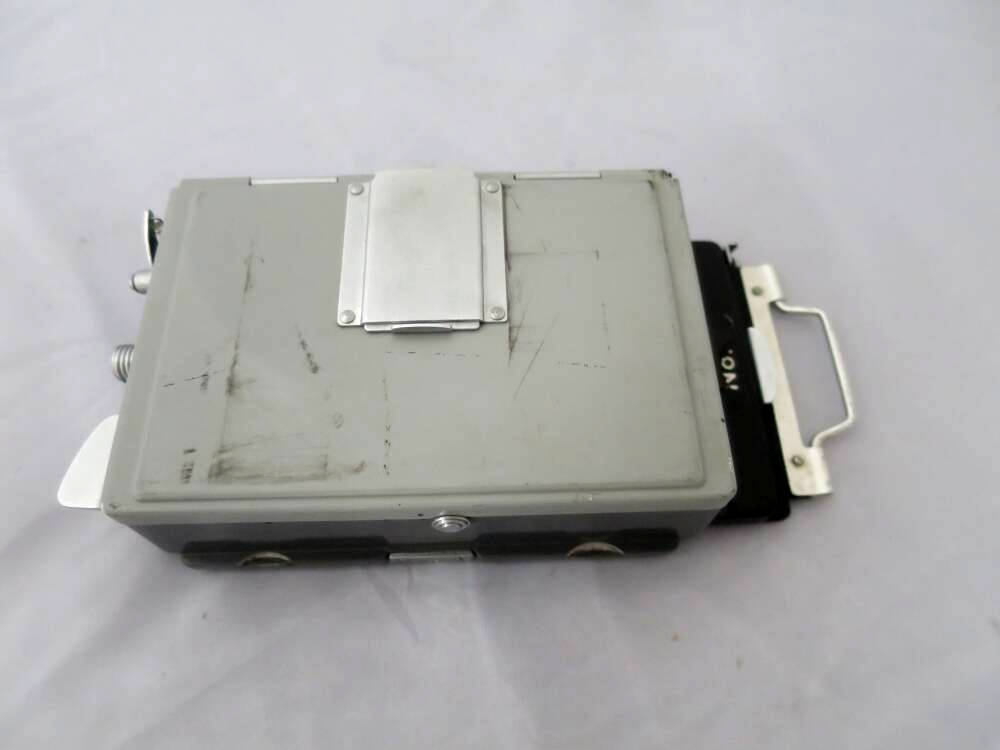

Focussing screen/sheet film holder detached.

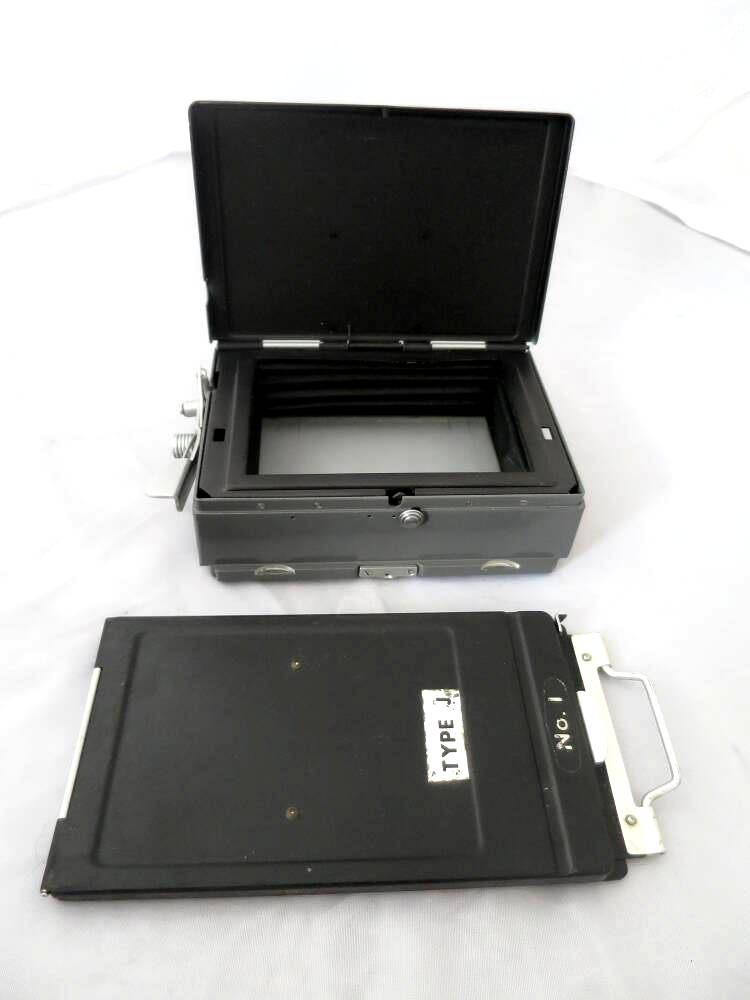

../jpgother/mamiya_23_foc_screen_IMG_9242.JPG
Hood open and sheet film holder type "J", which can accept 6.5x9 (21/2x31/2") plates and film + film from a full sheet cut into 4 quarter sheets.

../jpgother/mamiya_23_foc_screen_IMG_9243.JPG

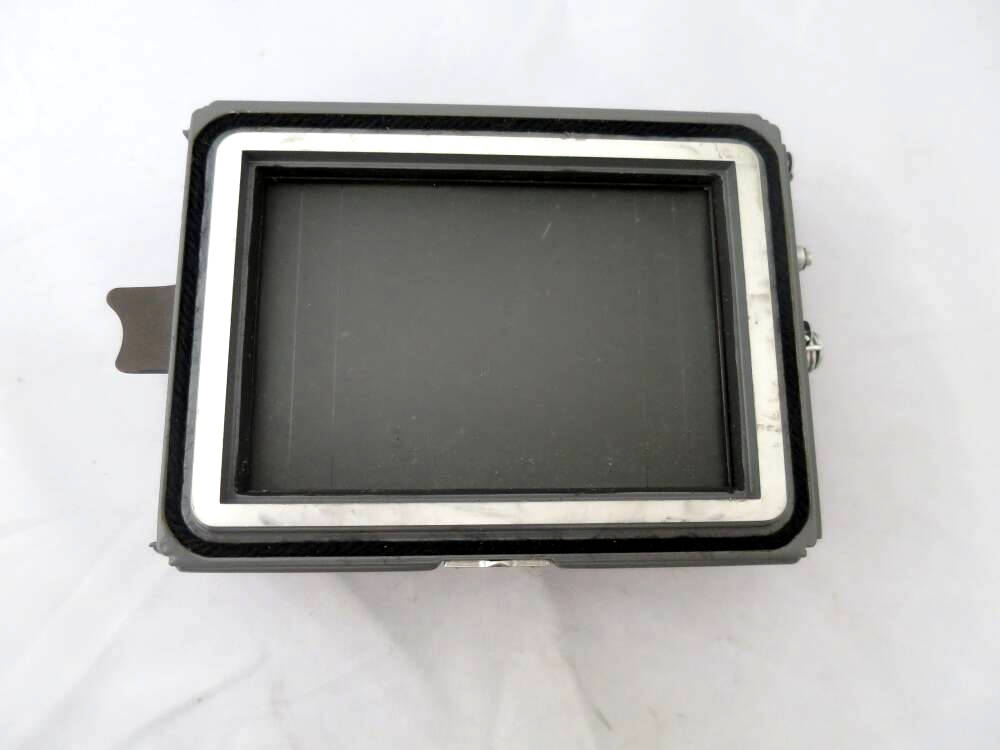

Holder seen from the camera side.

../jpgother/mamiya_sheet_holder_IMG_9424.JPG

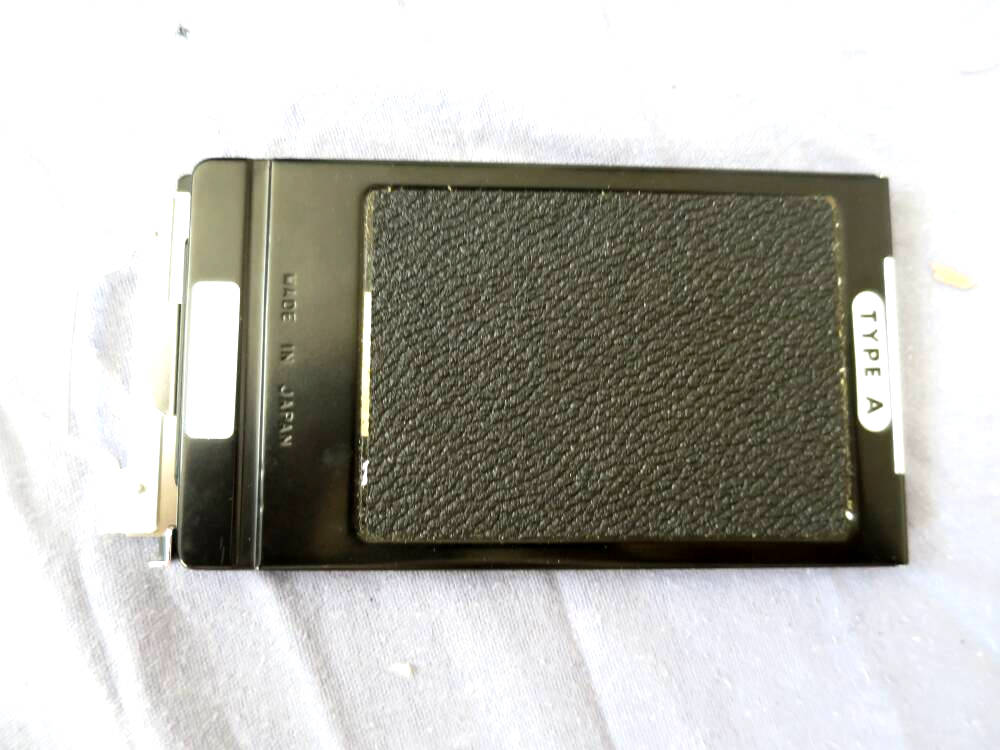

This is the other sheet film holder, type "A",
which can accept 6.5x9 (21/2x31/2") plates and 21/4x31/4 cut film.

../jpgother/mamiya_sheet_holder_IMG_9425.JPG
Slide side.

../jpgother/mamiya_sheet_holder_IMG_9426.JPG

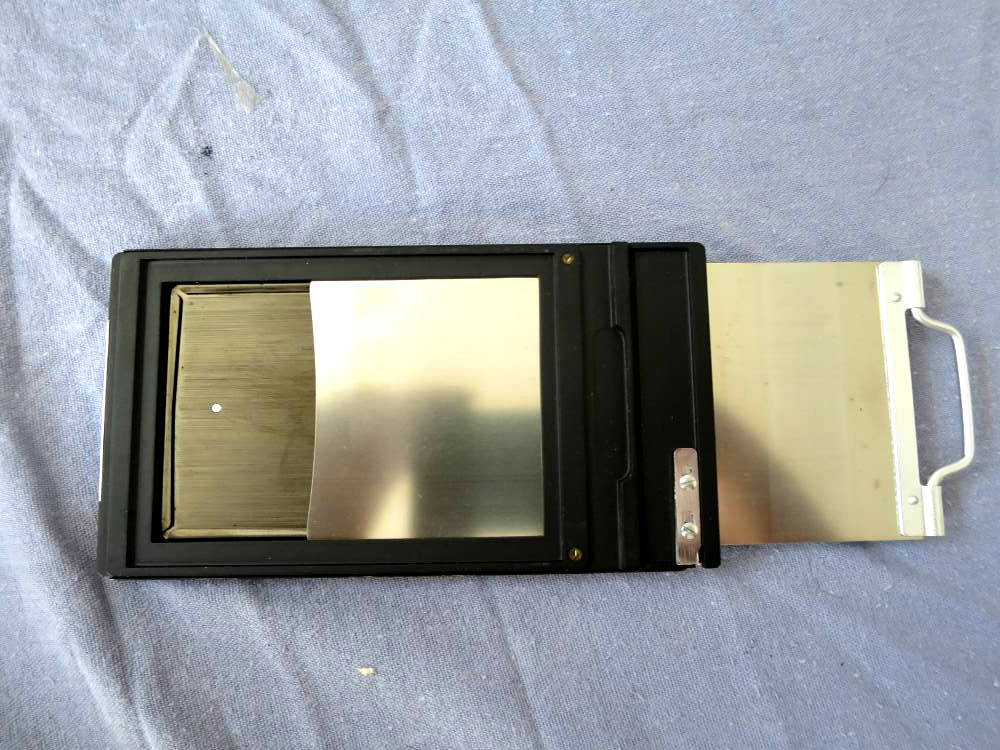

Slide half open. You can see the sheath for
 21/4x31/4 cut film.

../jpgother/mamiya_sports_finder_IMG_9420.JPG

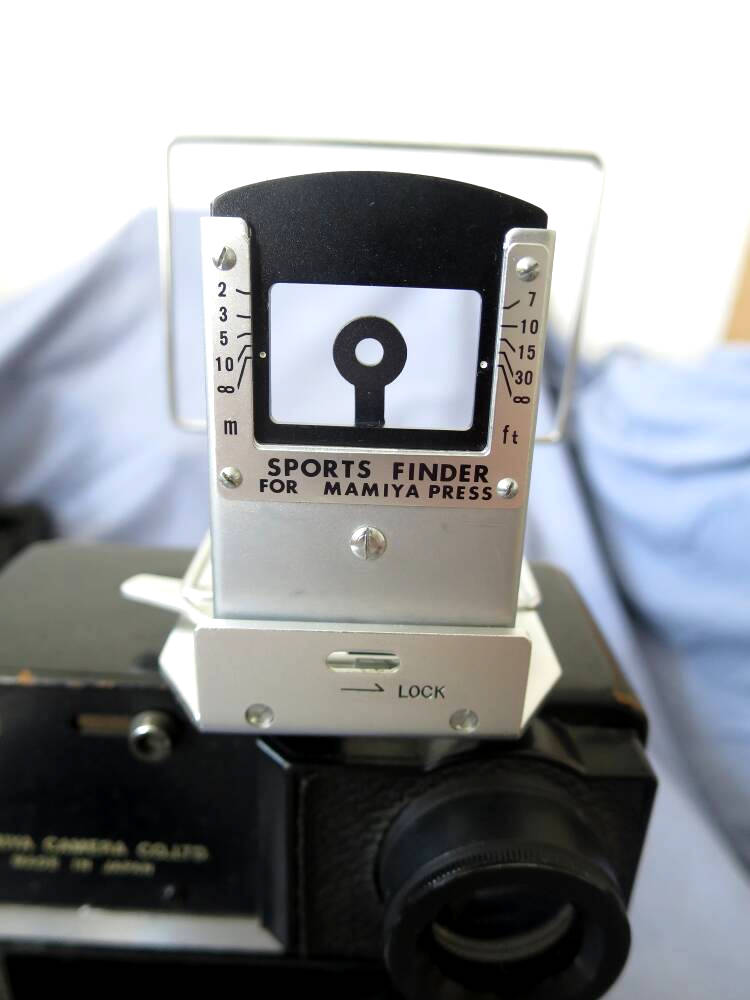

Sports finder with box and case. It has an offst fixation for the old Mamiya Press. On the Press it would be centered. Parallax compensation is done by moving the eyepiece.

../jpgother/mamiya_sports_finder_IMG_9421.JPG
90mm frame, set to infinity.

../jpgother/mamiya_sports_finder_IMG_9422.JPG

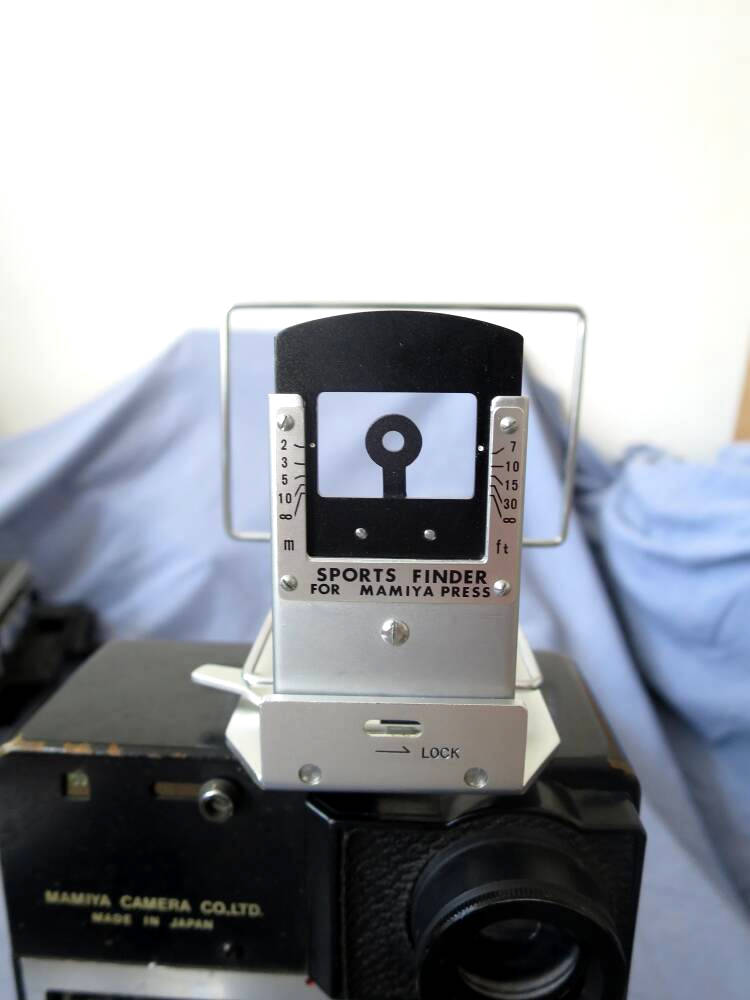

90mm frame, set to 2m.

../jpgother/mamiya_sports_finder_IMG_9423.JPG
150mm frame.


Roll film


../jpgother/mamiya_23_IMG_9178.JPG
6x9 roll film holder, attached to a Mamiya Super 23. These holders are big, but keep the film absolutely flat. There is a 6x7 version as well.

../jpgother/mamiya_rollfilm_back_IMG_9409.JPG

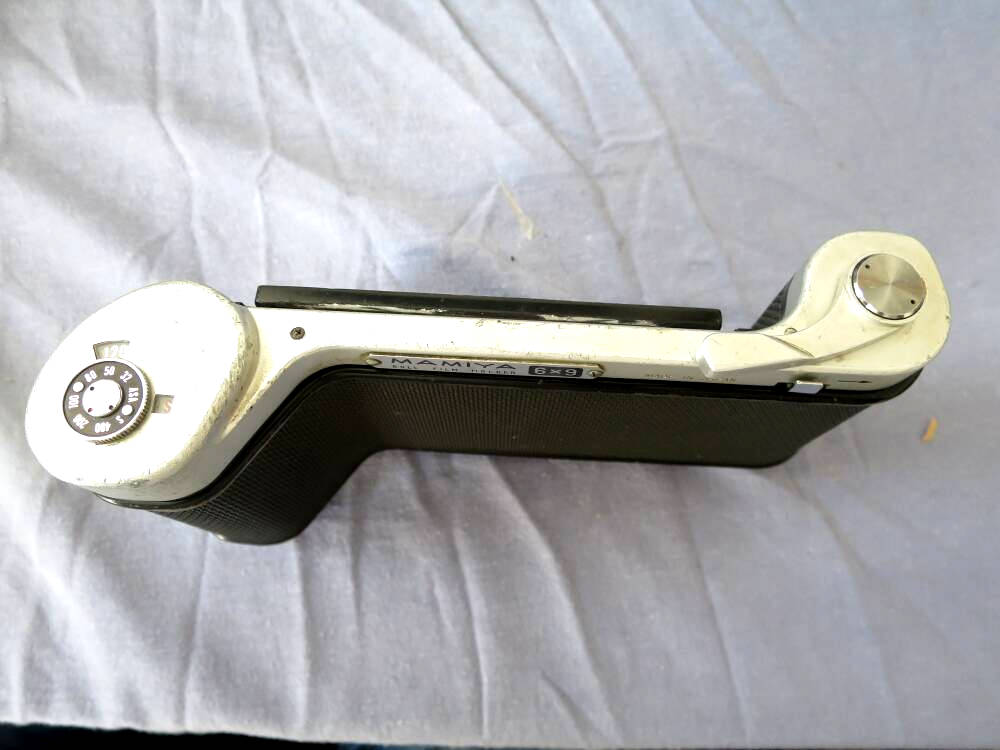

Seen from above. Film ISO reminder, window for pressure plate setting 120/220, film counter window and lever for film advance.

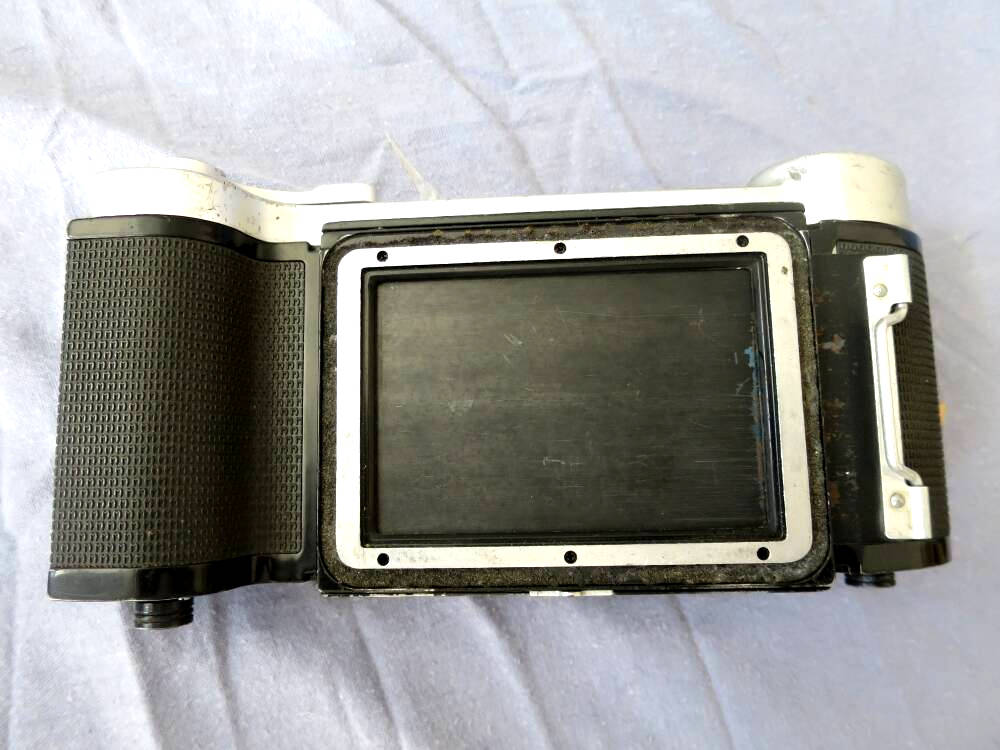

../jpgother/mamiya_rollfilm_back_IMG_9410.JPG
Camera side with dark slide.

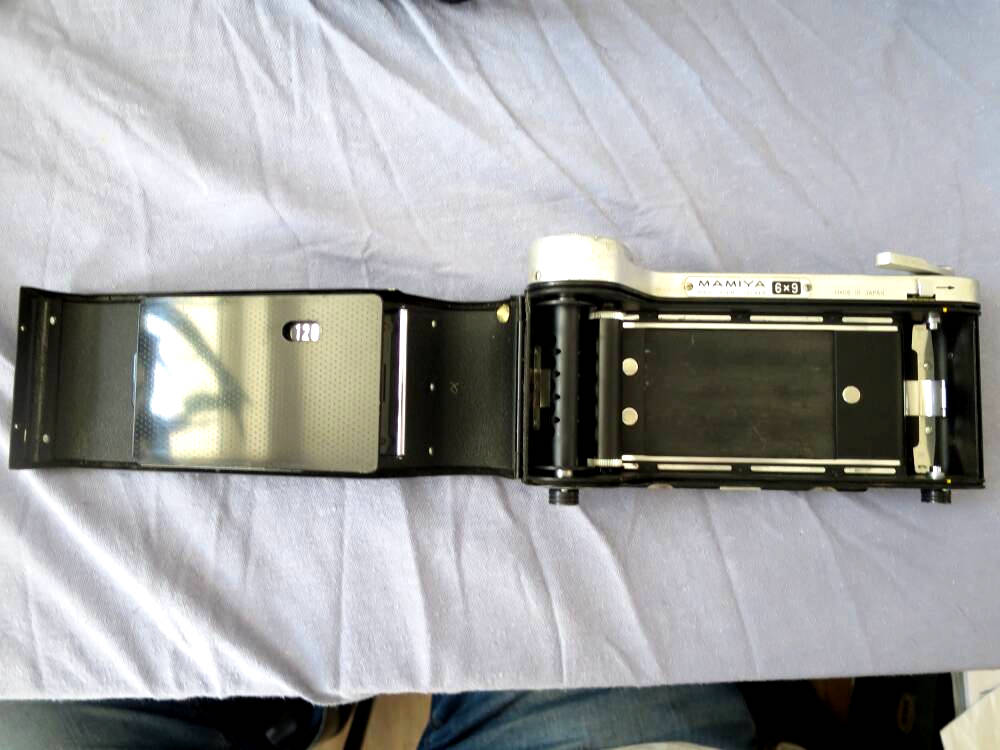

../jpgother/mamiya_rollfilm_back_IMG_9411.JPG
Back open.

../jpgother/mamiya_rollfilm_back_IMG_9412.JPG

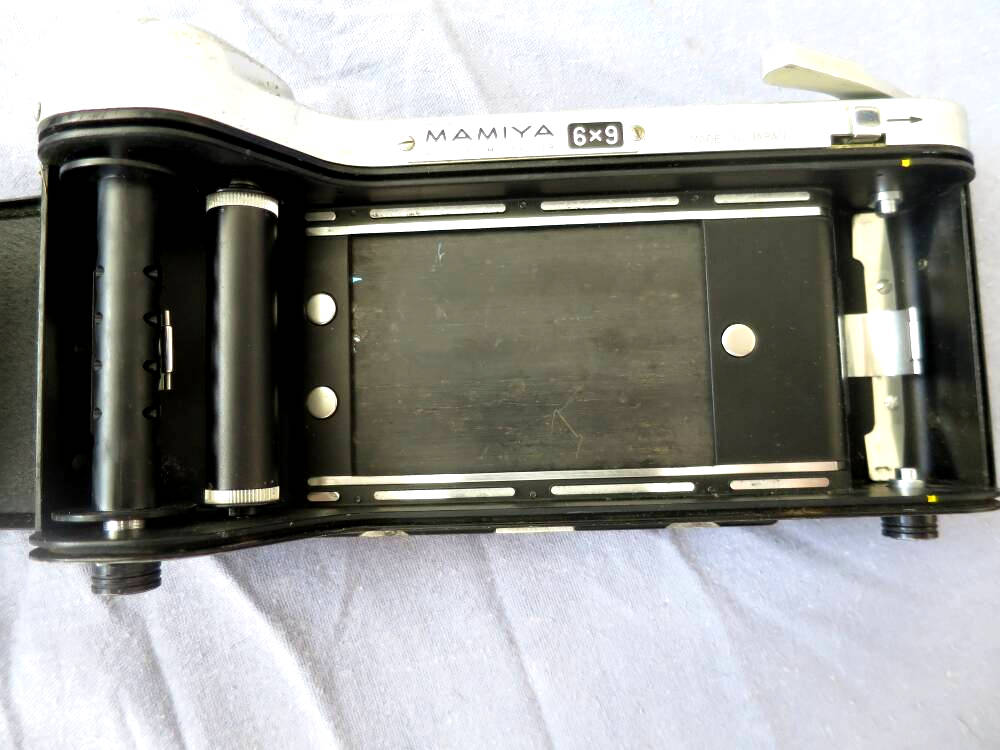

Film chamber. Put the film on the left side and the winding spool to the right. Tear the leader across the back, engage into the spool and wind until the arrow meets the yellow marks. Close and wind until it stops for the first photo.

../jpgother/mamiya_multi_format_film_back_IMG_9446.JPG

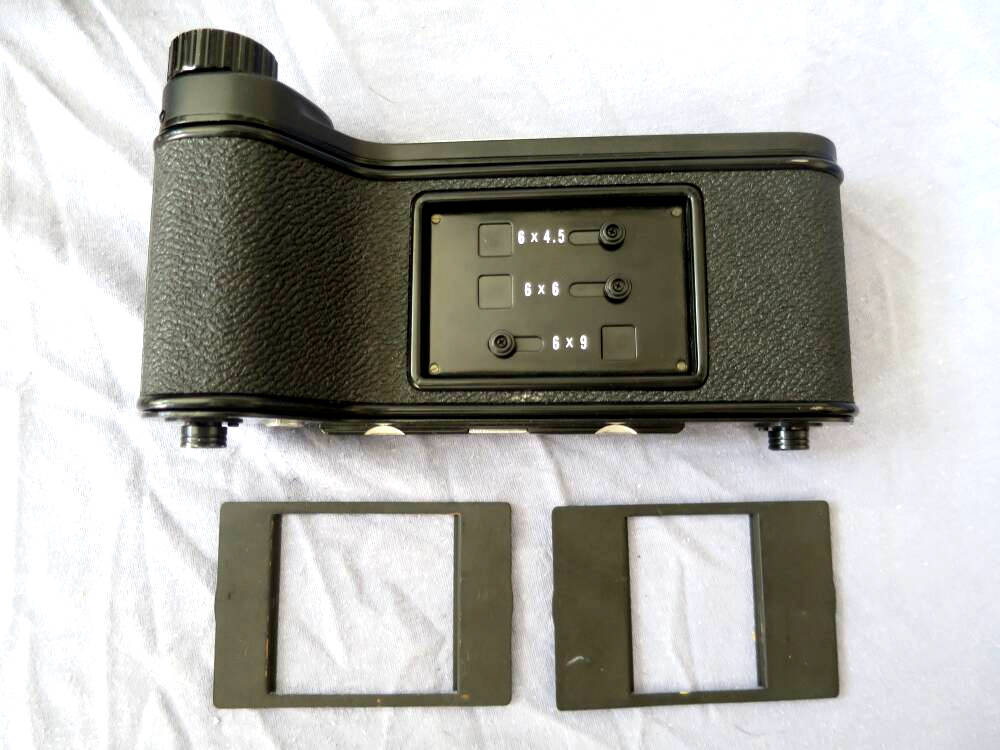

The "K" multi-format film back. You can choose between 6x9, 6x6 and 6x4.5 format. You will need the masks for the back, shown above and the masks for the viewer. However, there is no automatic advance, you have to use the according red window.

../jpgother/mamiya_multiback_06.JPG
Viewer mask for 6x6 and 6x4.5

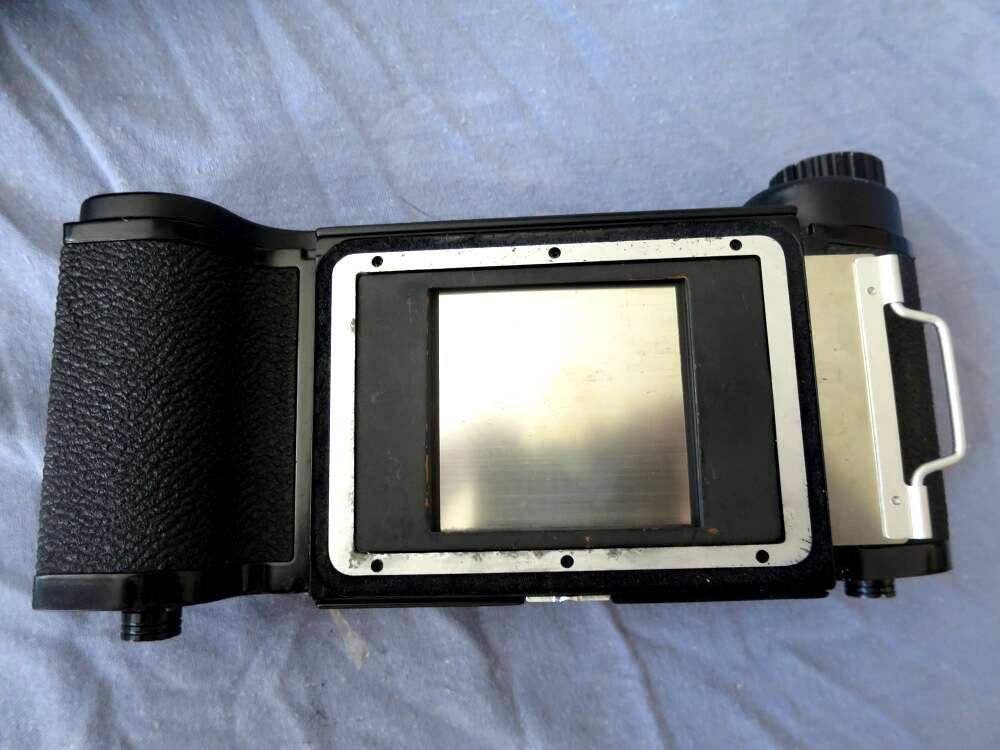

../jpgother/mamiya_multi_format_film_back_IMG_9447.JPG
6x6 mask installed.

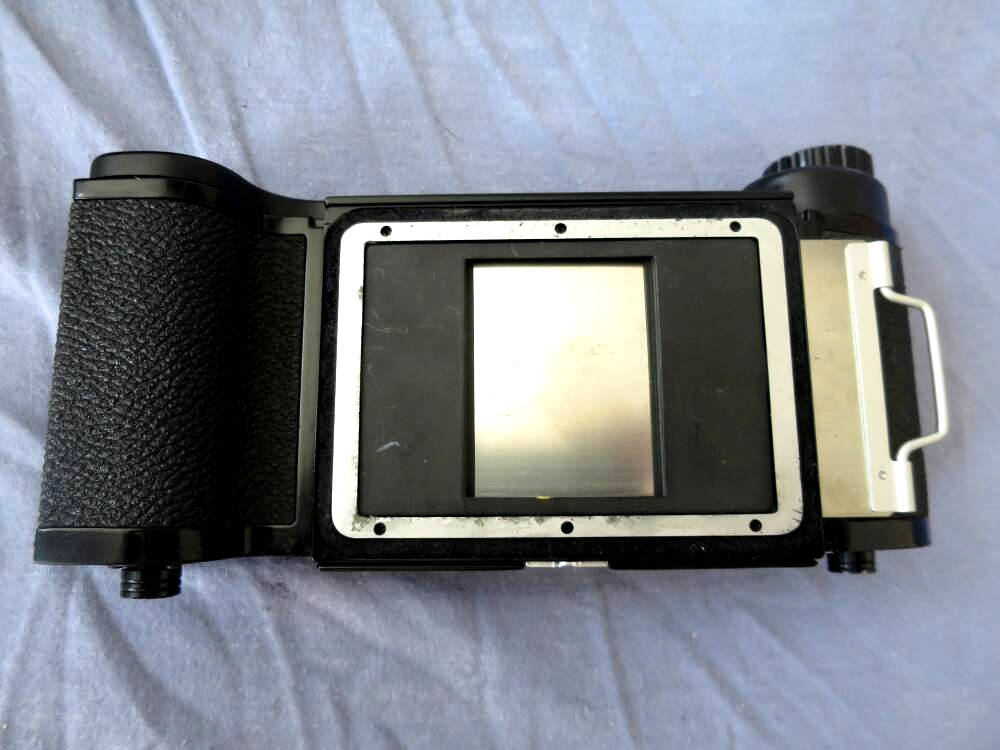

../jpgother/mamiya_multi_format_film_back_IMG_9448.JPG
6x4.5 mask instaled.

Maniya Super 23

../jpgother/mamiya_23_IMG_9177.JPG
Mamiya Super 23. Front.

../jpgother/mamiya_23_IMG_9178.JPG
With roll film back attached.

../jpgother/mamiya_23_IMG_9181.JPG

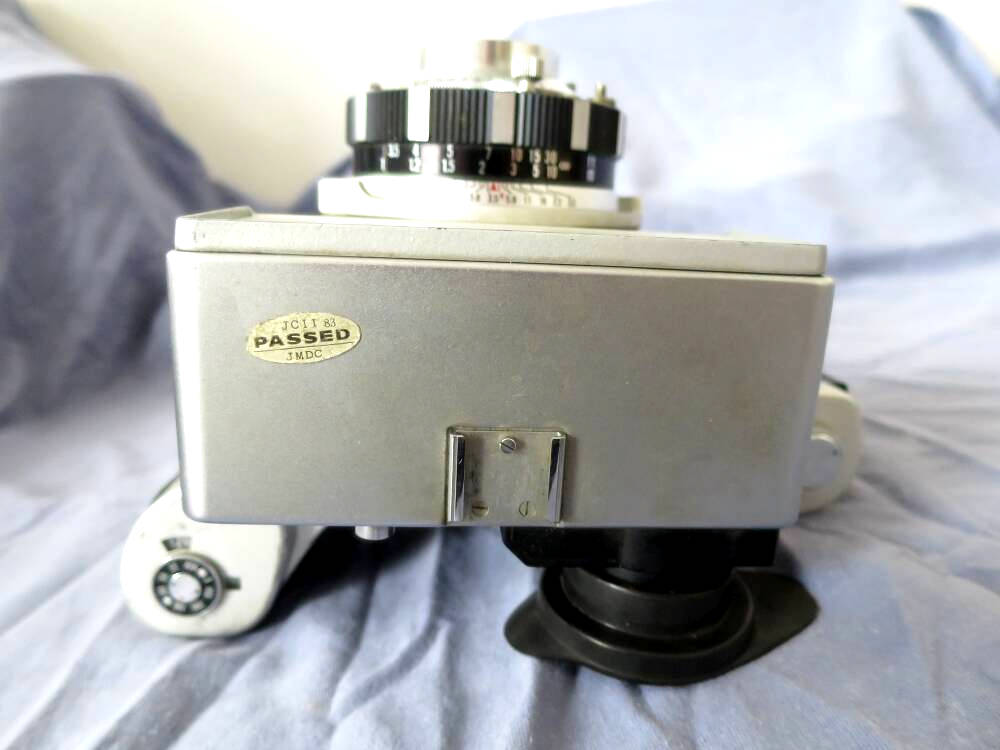

Seen from above.

../jpgother/mamiya_23_IMG_9179.JPG
Bottom. Tripod socket. There is a metal piece on the edge of the front that can be extended to let the camera stand on a flat surface.

../jpgother/mamiya_23_IMG_9183.JPG
Right side. Grip socket.

../jpgother/mamiya_23_IMG_9180.JPG

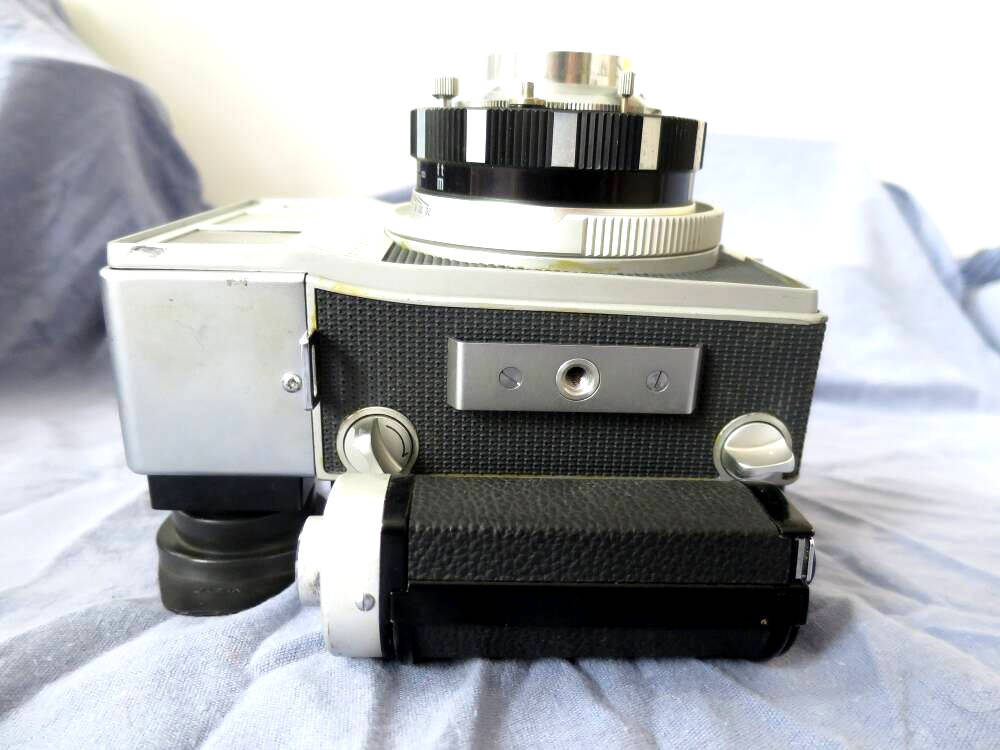

Left side. Flash fixation.

../jpgother/mamiya_right_angle_foc_holder_IMG_9434.JPG

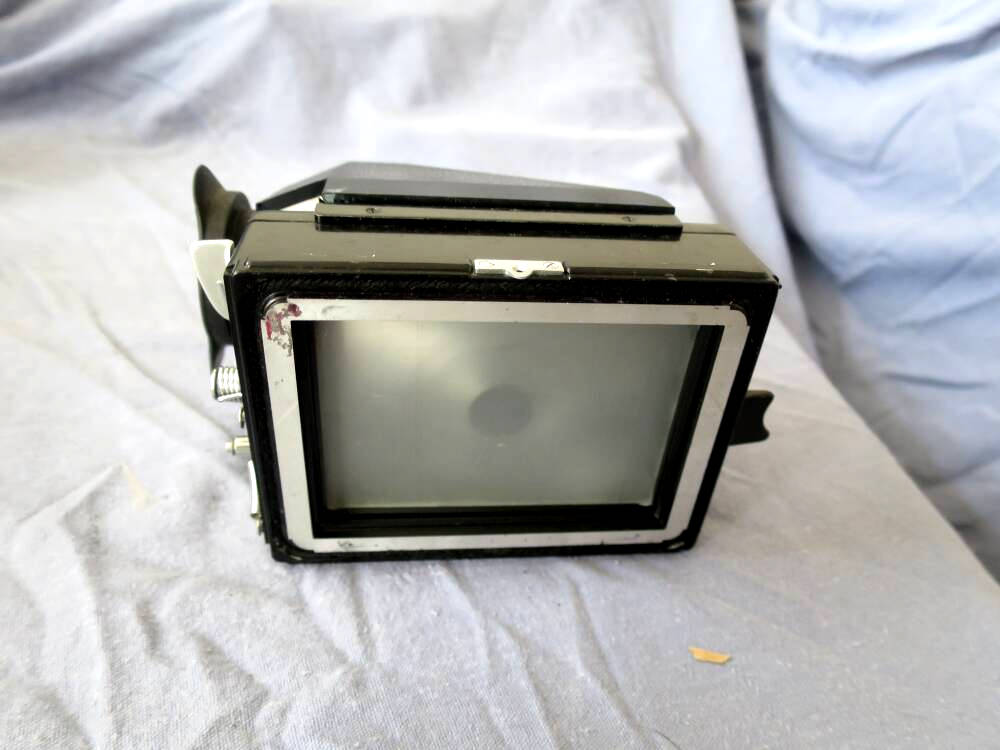

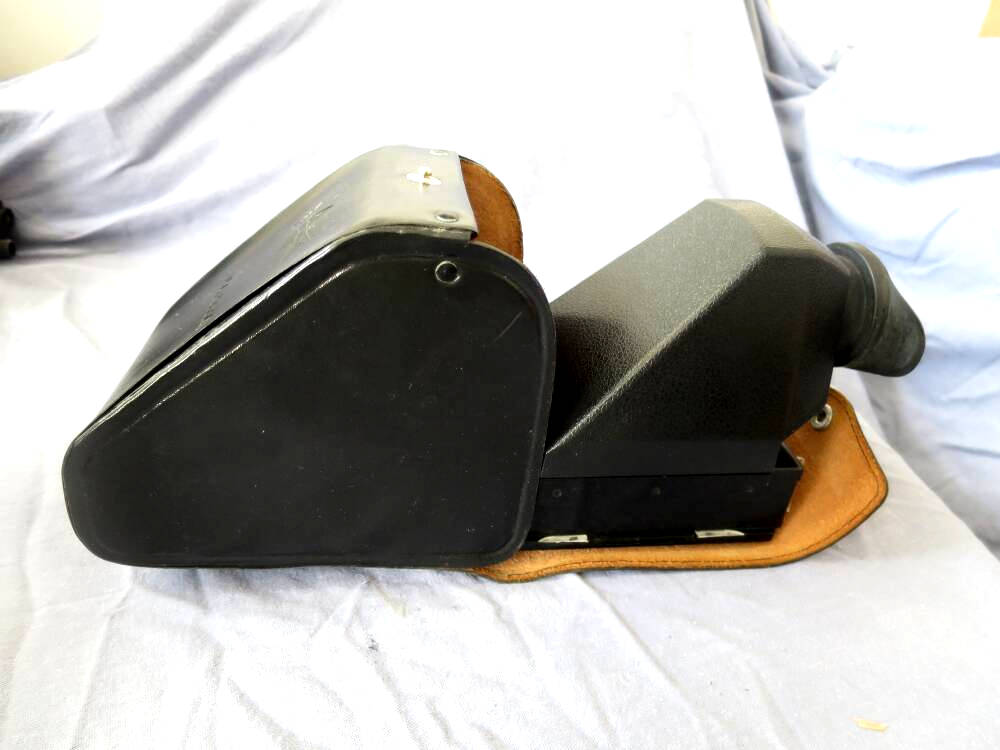

Right angle finder/sheet film holder and its case. It gives a non-inversed image of the normally inversed ground glass image.

../jpgother/mamiya_right_angle_foc_holder_IMG_9436.JPG
Camera side.

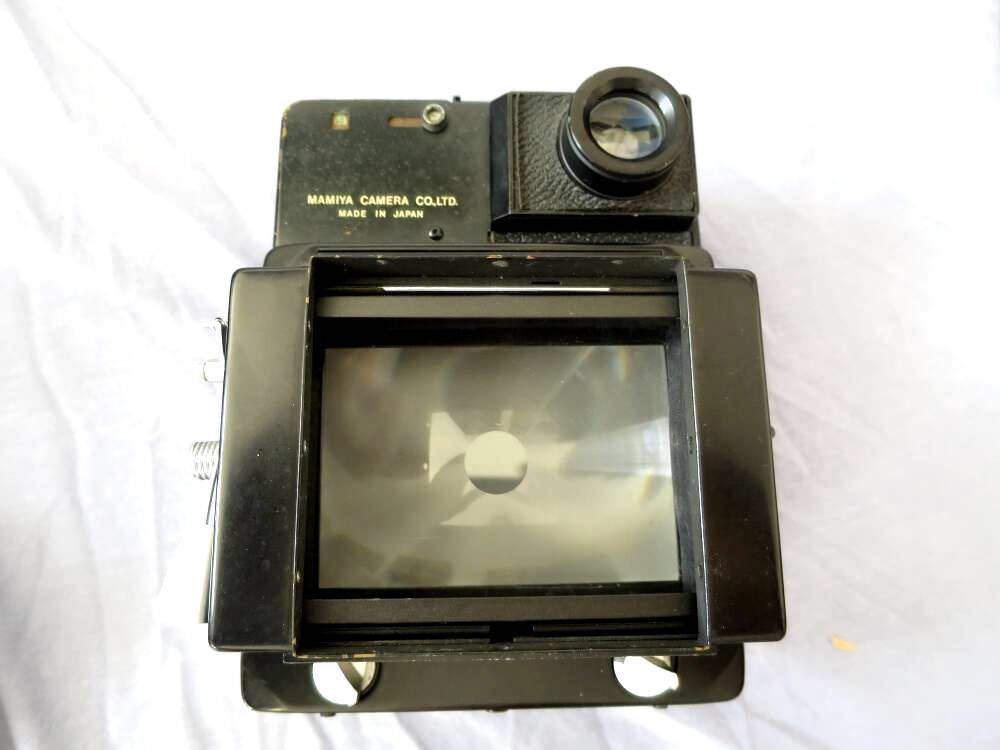

../jpgother/mamiya_right_angle_foc_holder_IMG_9438.JPG
Attached and viewer housing taken off.

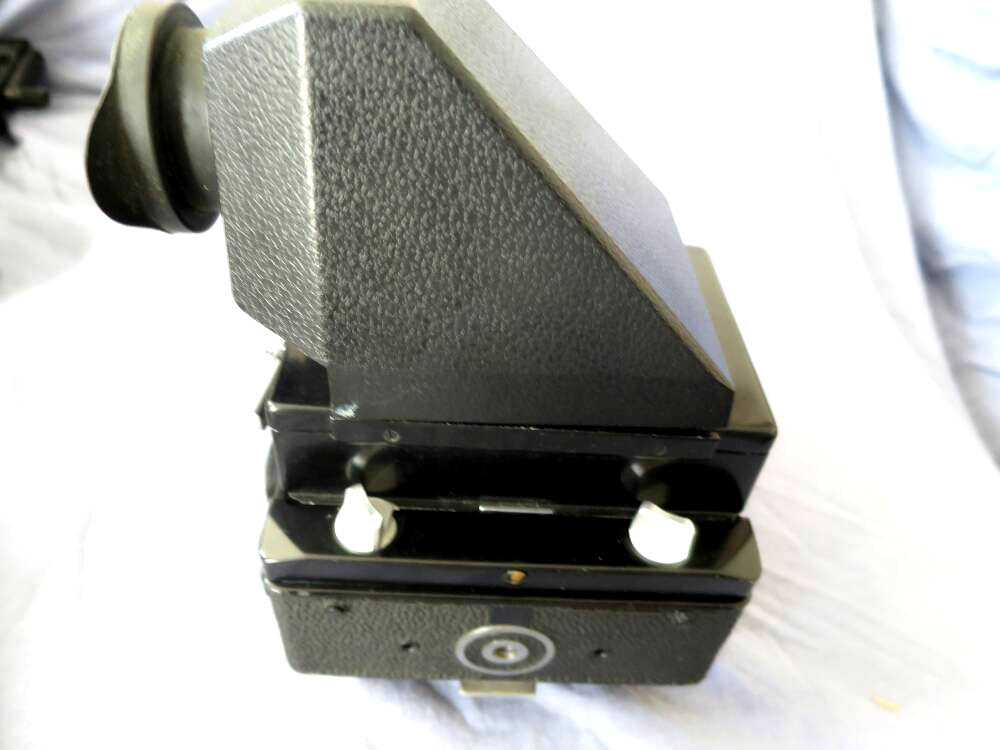

../jpgother/mamiya_right_angle_foc_holder_IMG_9440.JPG
Portrait position.

../jpgother/mamiya_right_angle_foc_holder_IMG_9441.JPG

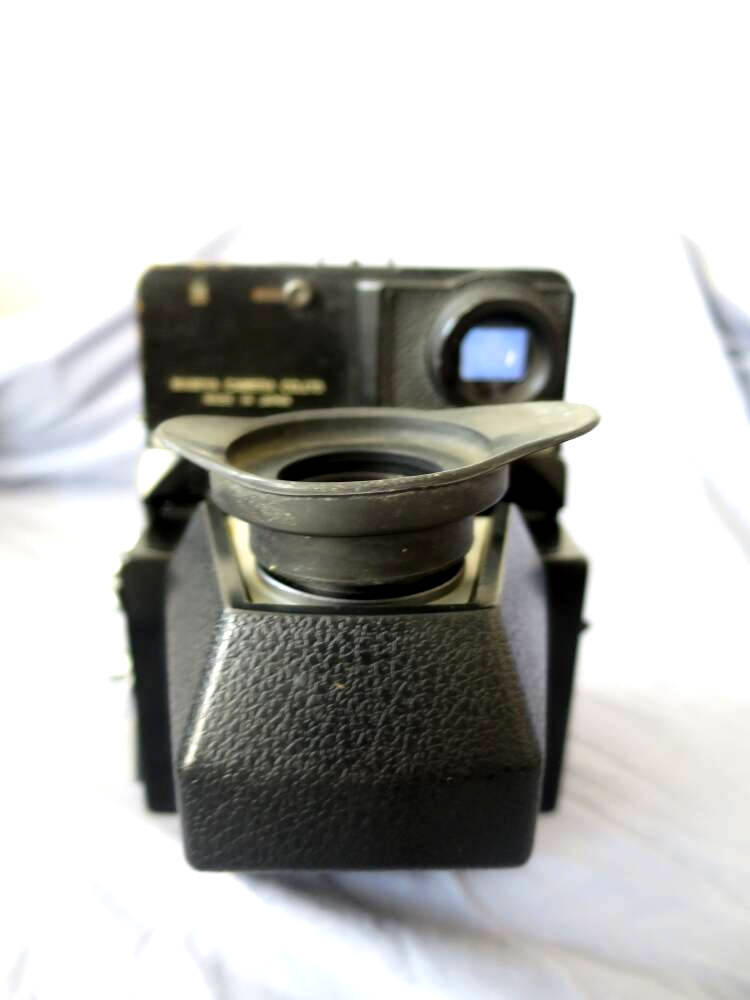

Landscape position.

../jpgother/mamiya_right_angle_foc_holder_IMG_9442.JPG

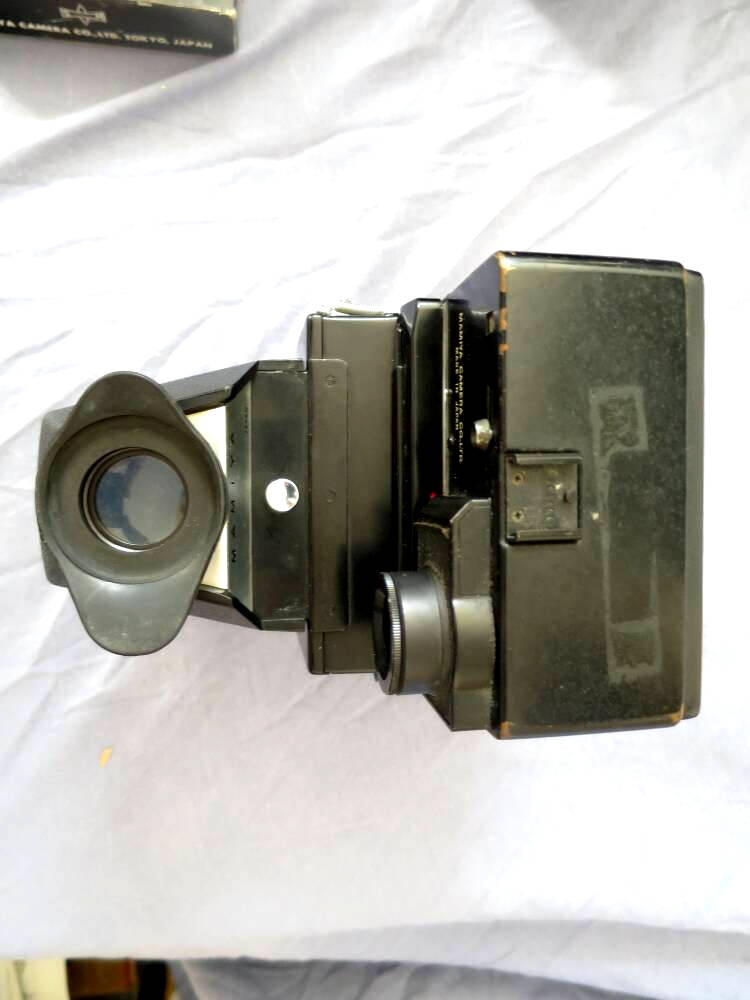

Seen from above.


Mamiya Super 23 Graflex

../jpgother/mamiya_23_graflex_IMG_9255.JPG

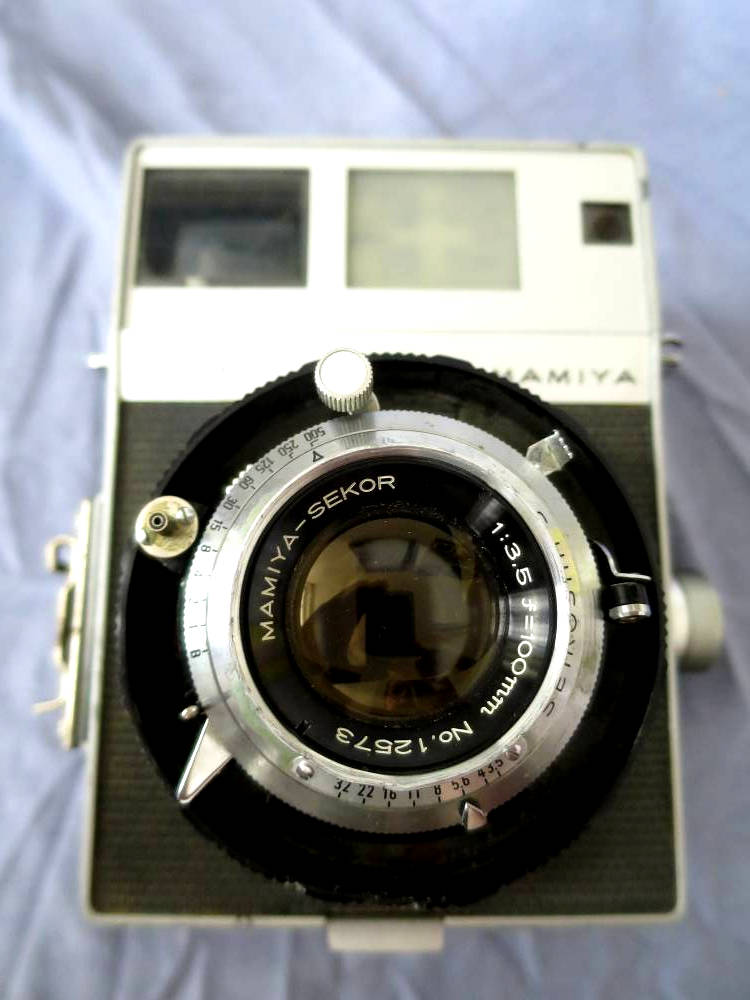

Camera, front. This is a very rare model, a Mamiya Super 23 with Graflex back.

../jpgother/mamiya_23_graflex_IMG_9256.JPG

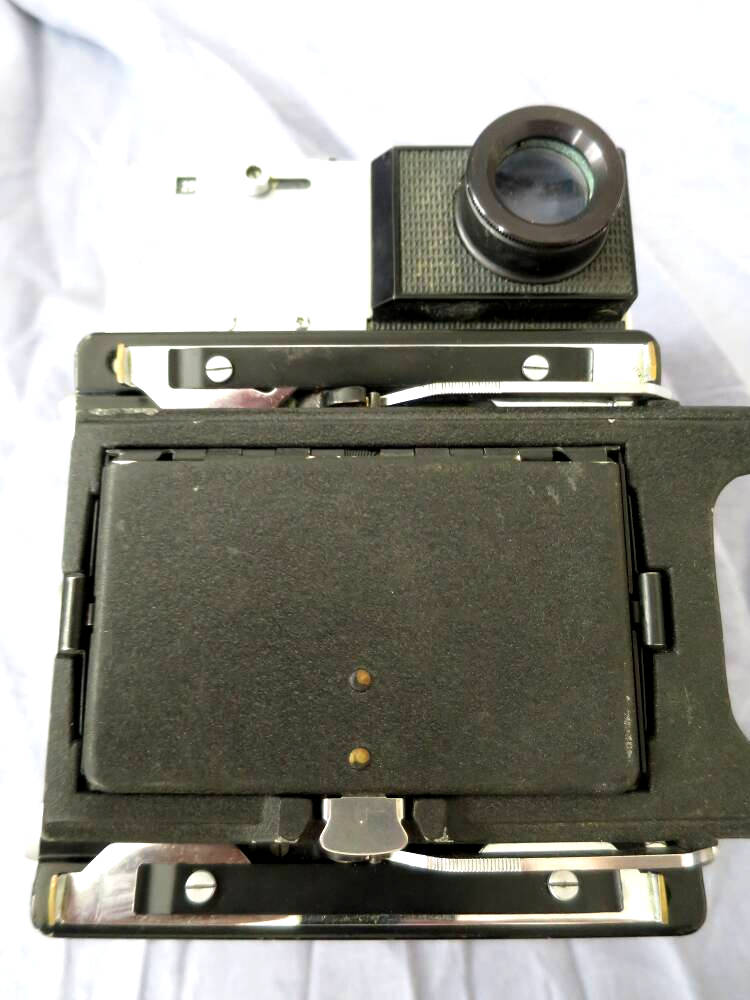

Body, back side. Graflok focussing screen and 2x3 (6x9cm) film holder.

../jpgother/mamiya_23_graflex_IMG_9259.JPG

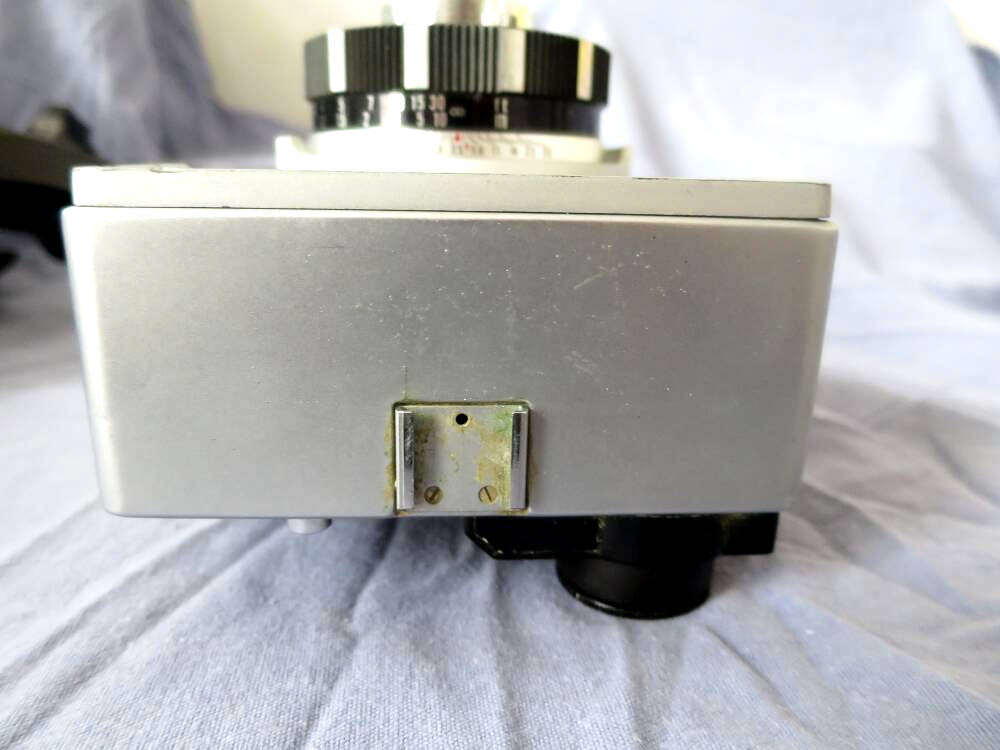

Seen from above..

../jpgother/mamiya_23_graflex_IMG_9257.JPG

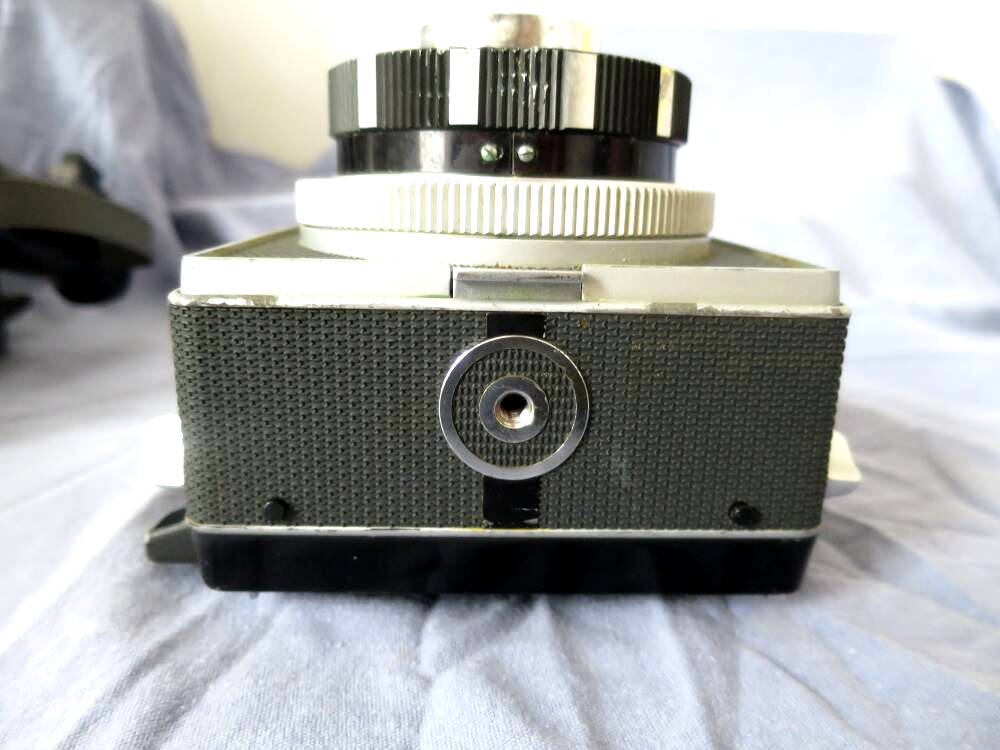

Bottom. Tripod socket and extendable stand.

../jpgother/mamiya_23_graflex_IMG_9258.JPG

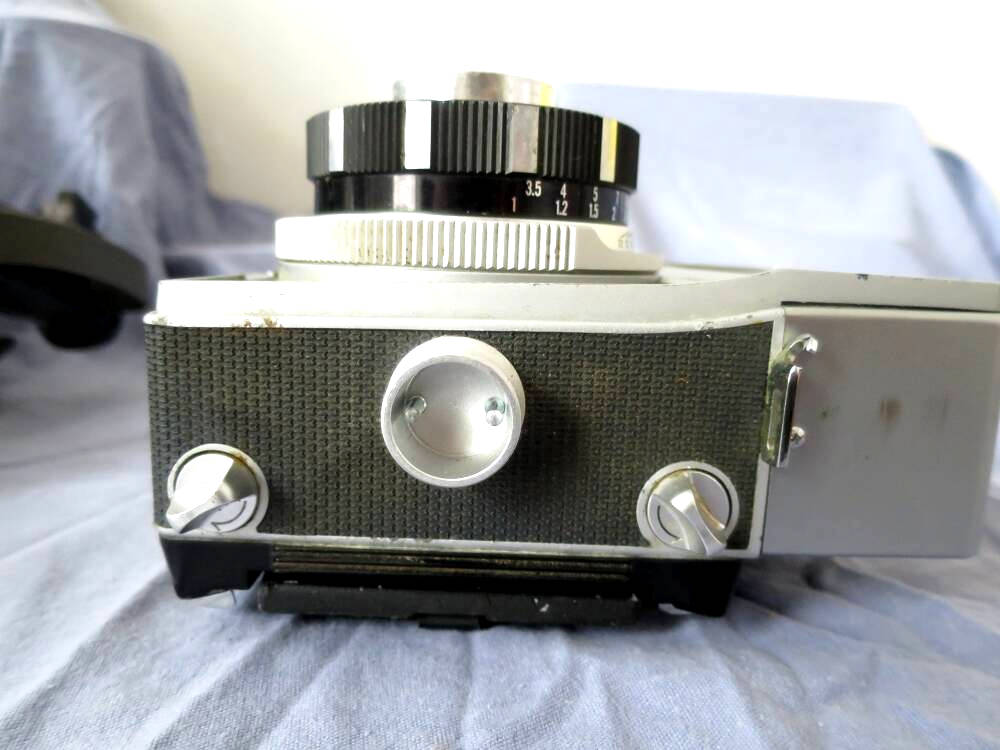

Right side. Grip socket..

../jpgother/mamiya_23_graflex_IMG_9260.JPG

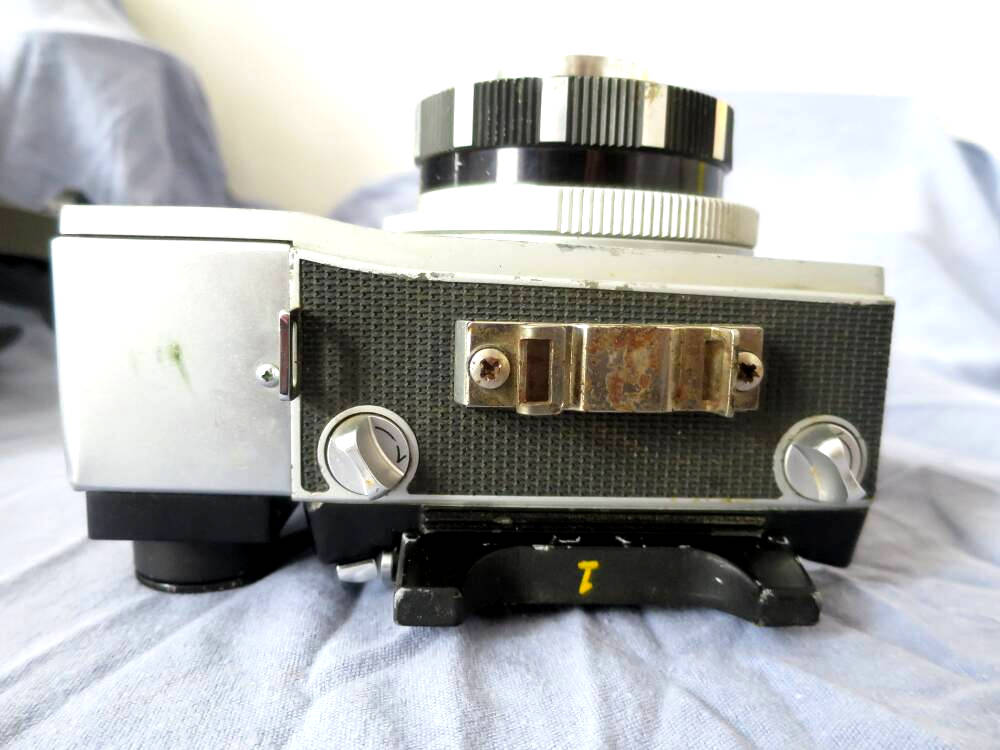

Left side. Special torch flash fixation.

../jpgother/mamiya_23_graflex_IMG_9261.JPG

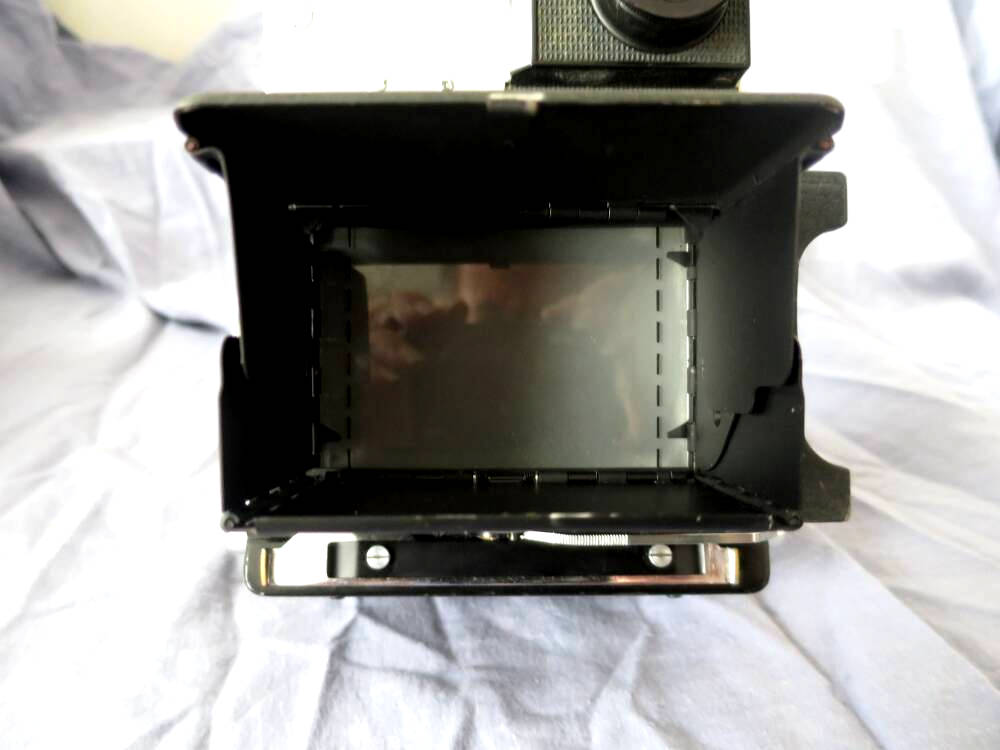

Focussing hood open.

../jpgother/mamiya_23_graflex_IMG_9262.JPG

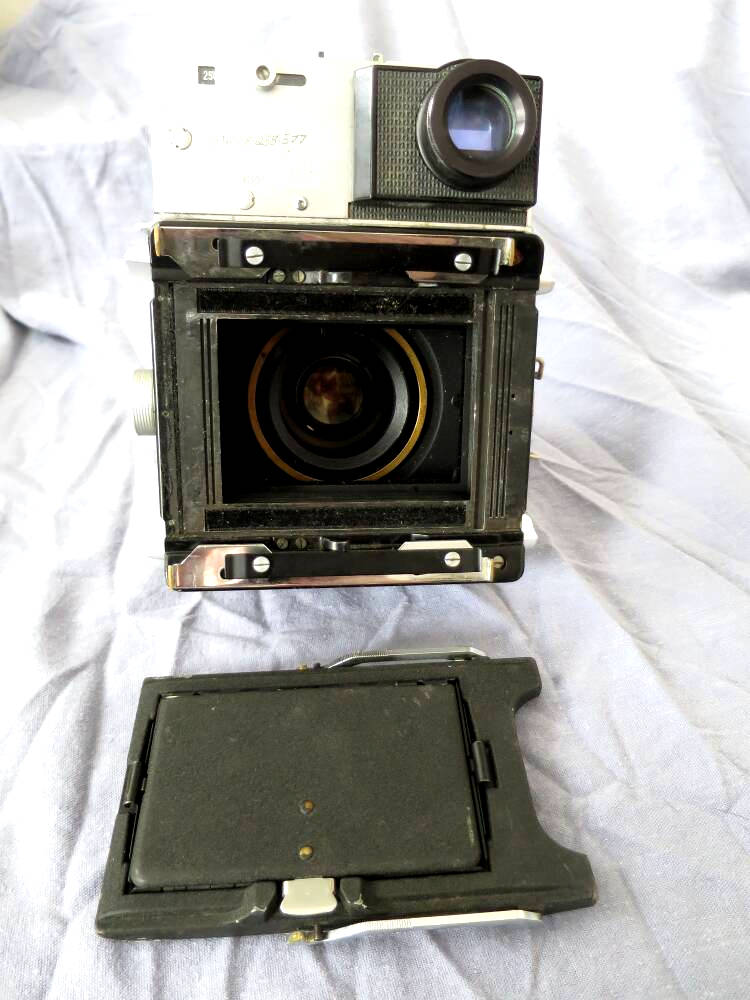

Graflok screen off.

../jpgother/mamiya_23_graflex_IMG_9263.JPG
Screen from camera side.

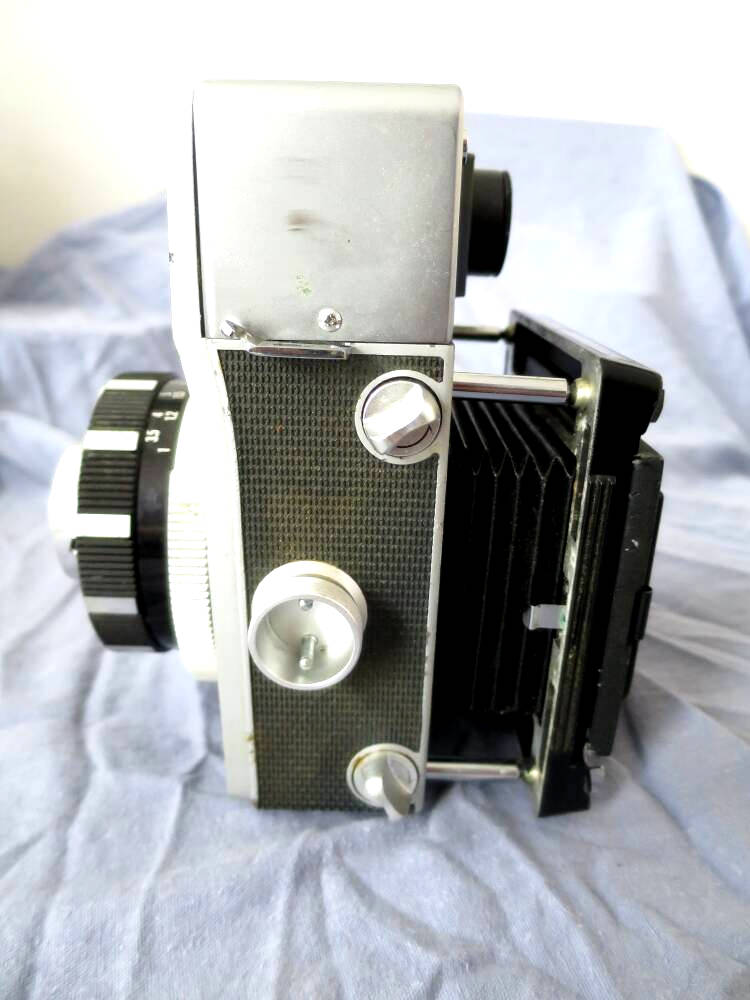

../jpgother/mamiya_23_graflex_IMG_9266.JPG
Back, full bellows extension.

../jpgother/mamiya_23_graflex_IMG_9269.JPG
Back tilted.

Graflex Backs

../jpgother/graflex_rh8_IMG_9368.JPG

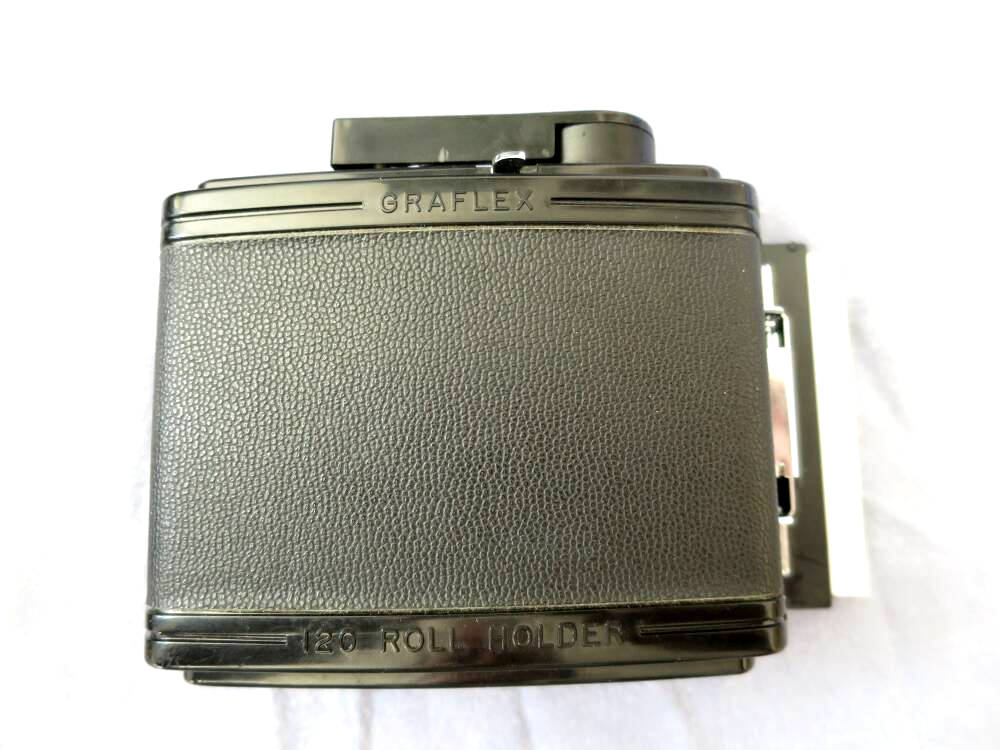

Graflex RH8 roll film back.

../jpgother/graflex_rh8_IMG_9369.JPG
Seen from above, Advance lever and exposure counter.

../jpgother/graflex_rh8_IMG_9370.JPG

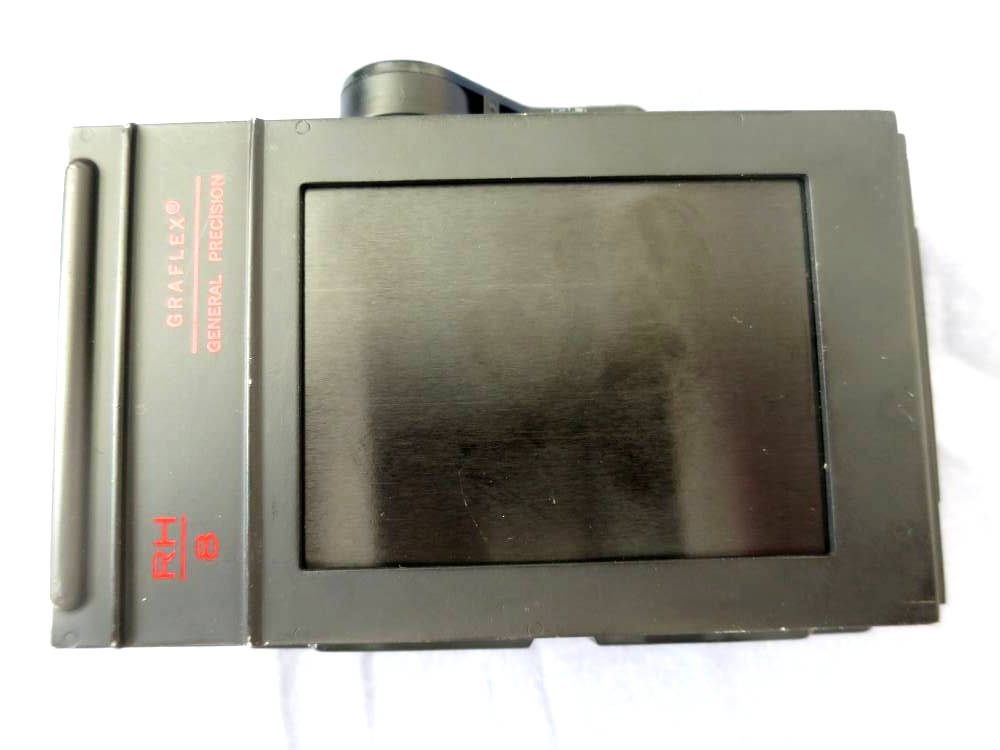

Camera side. Dark slide.

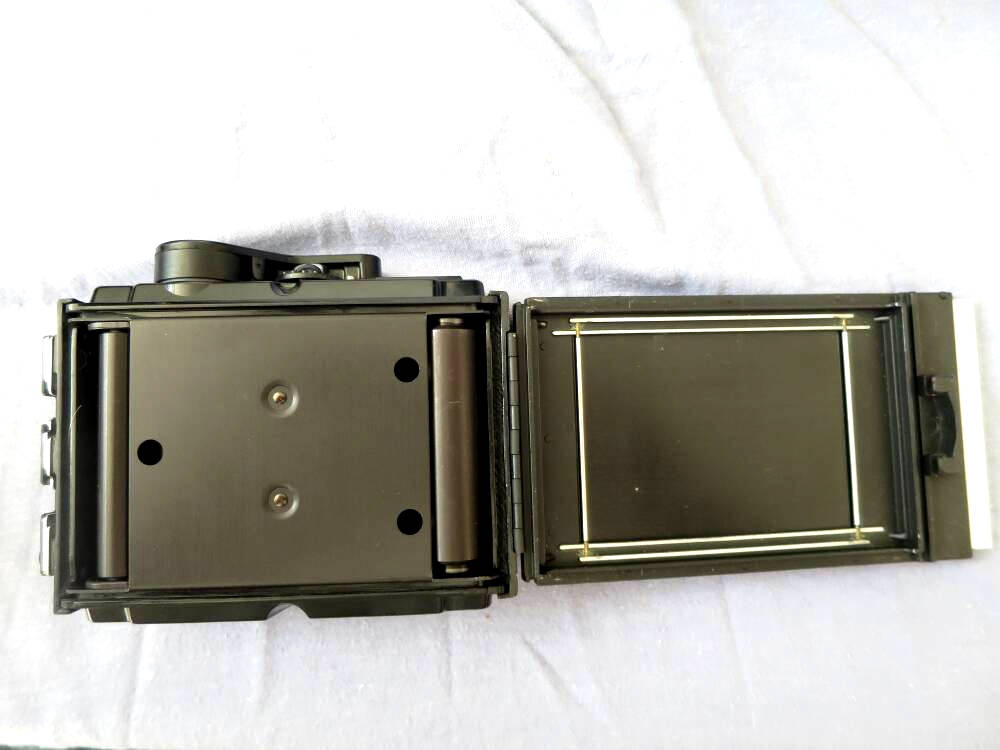

../jpgother/graflex_rh8_IMG_9372.JPG

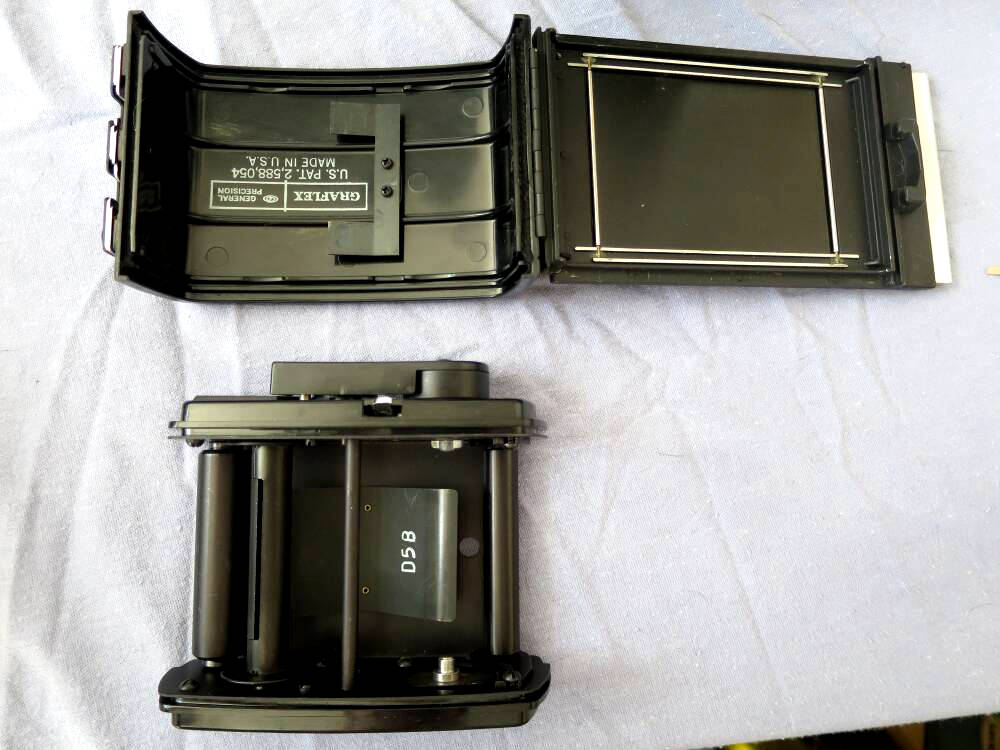

Holder open.

../jpgother/graflex_rh8_IMG_9373.JPG
Spool unit

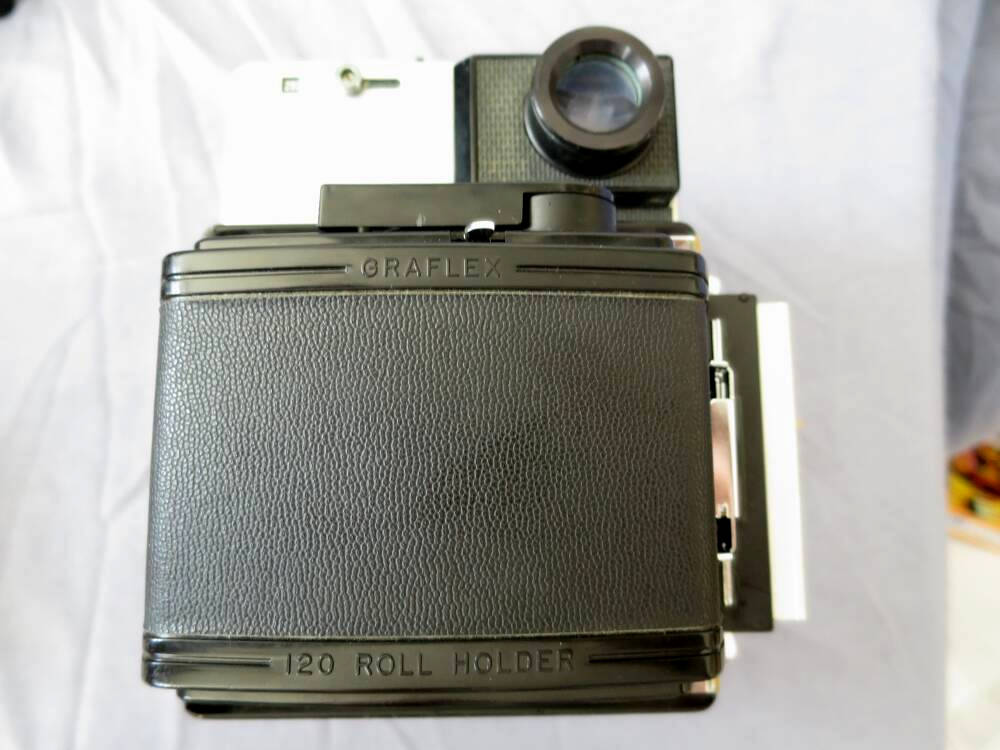

../jpgother/graflex_rh8_IMG_9371.JPG
Back attached to camera.

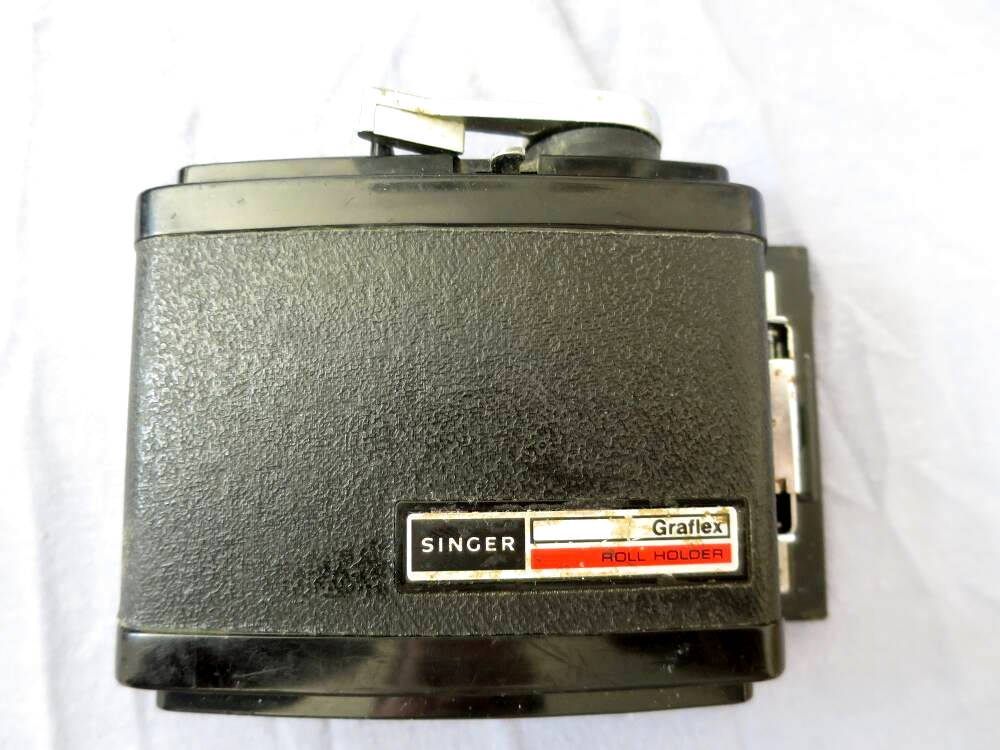

../jpgother/graflex_rh10_IMG_9374.JPG
Graflex RH10 holder. This is an older one.

../jpgother/graflex_rh10_IMG_9375.JPG

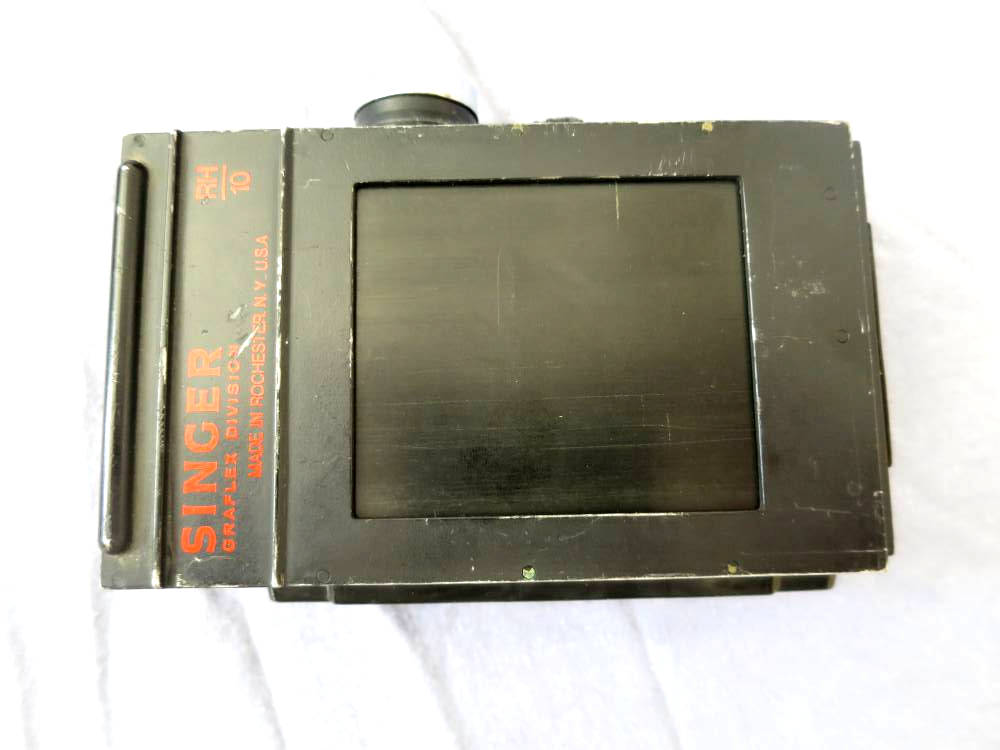

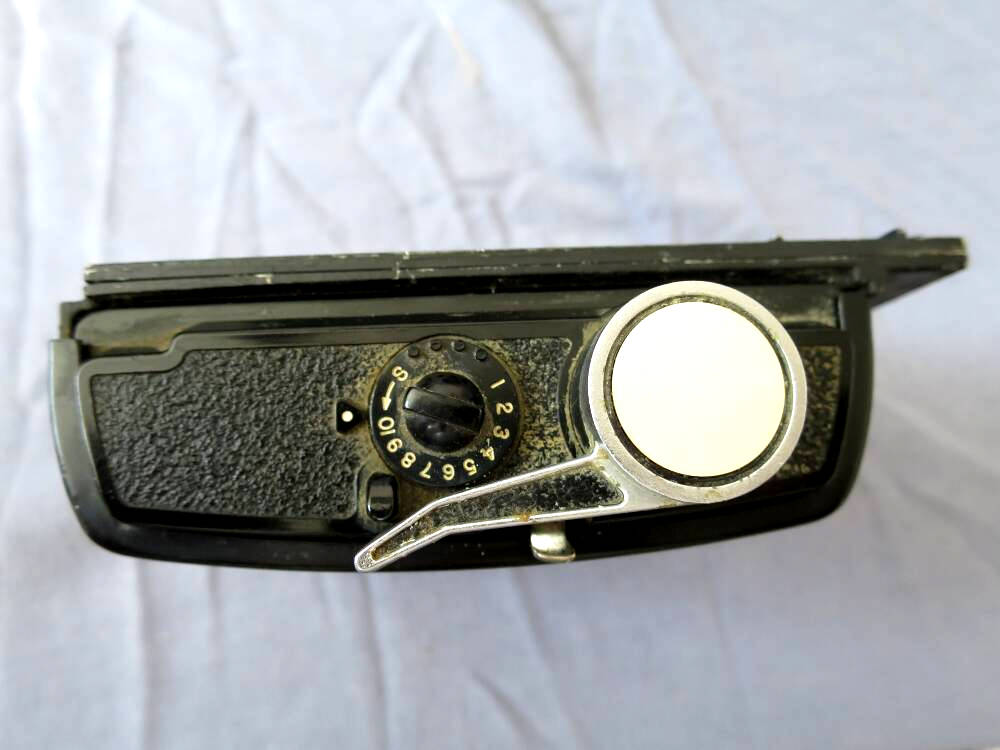

Seen from above. Advance lever and exposure counter.

../jpgother/graflex_rh10_IMG_9376.JPG
Camera side. Dark slide.

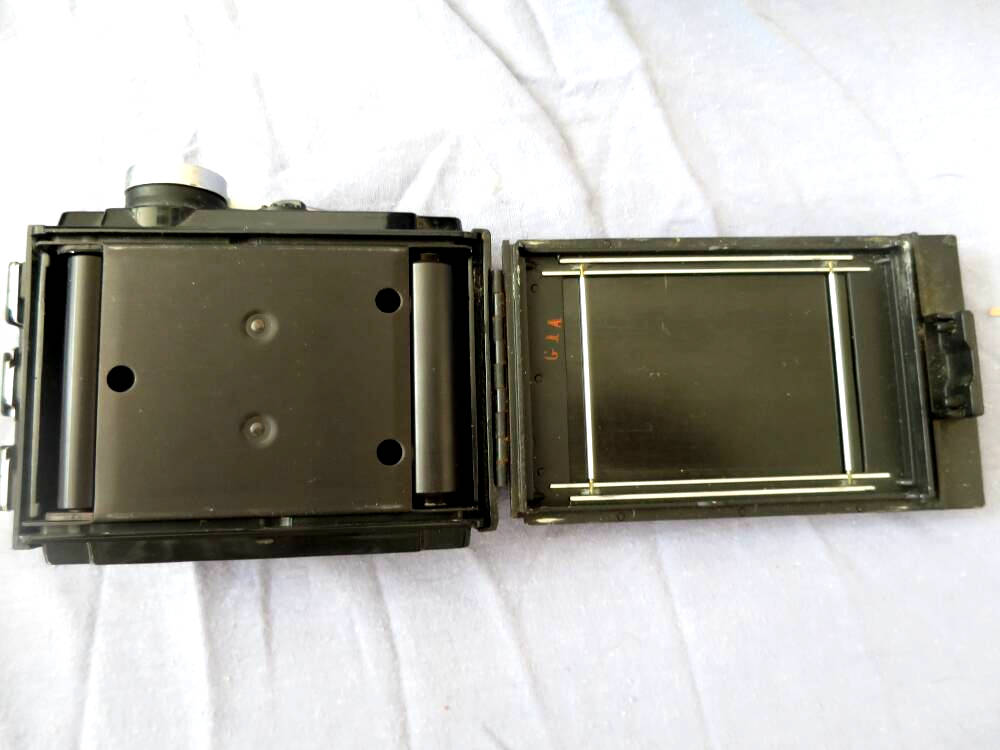

../jpgother/graflex_rh10_IMG_9377.JPG
Holder open.

../jpgother/graflex_rh10_IMG_9378.JPG
Spool unit.

../jpgother/graflex_rh10_IMG_9379.JPG

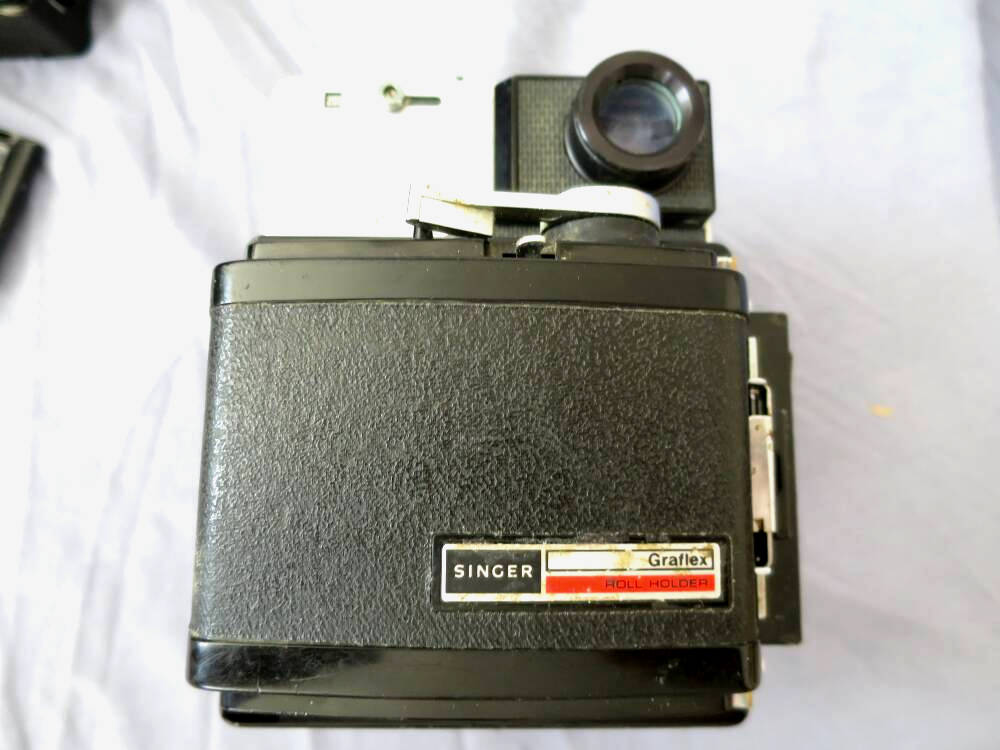

Attached to the camera.

There is also a Horseman Polaroid back that fits into the 2x3 graflok holder. You can only use it with the 100mm lens in retracted position. The film plane of the Horseman back is further away from the fixation, the lens compensates it when retracted, so you can reach infinity. But it doesn't make much sense, the holder is expensive and the Universal with its Polaroid back allows the use of a variety of lenses.
