OddCameras.com                         Rollei Magic II

The Rollei Magic II is an automatic Twin Lens Reflex 6x6 camera, made by Franke & Heidecke, Braunschweig, Germany. It has a Prontormat-S shutter, specially designed by Prontor for this camera and
front-cell focusing instead of moving the whole lens board as on the Rolleiflexes. There was a model I with only automatic exposure only, made from 1960 to 1962 and the model II, shown here, made from 1962 to 1968. Very few were made, about 25 000 for model I and only 12 600 for model II.

Lenses:

Taking lens: Schneider-Kreuznach Xenar 1:3.5 f=75mm.
Viewing lens: Heidosmat 1:3.5 f=75mm, Xenar-type

Shutter: Prontor Prontormat-S model 602 k
Automatic exposure: speeds 1/30 to 1/500s, diaphragms 3.5 to 22.
Manual settings: B, 1/30 to 1/500s, diaphragms 3.5 to 22.
Film speed: 12 to 1600 ISO.
Dimensions: 88 x 106 x 147 mm
Weight: 1000 gr.


Some pictures:

jpgodd/rollei_magic_II_IMG_1696.JPG

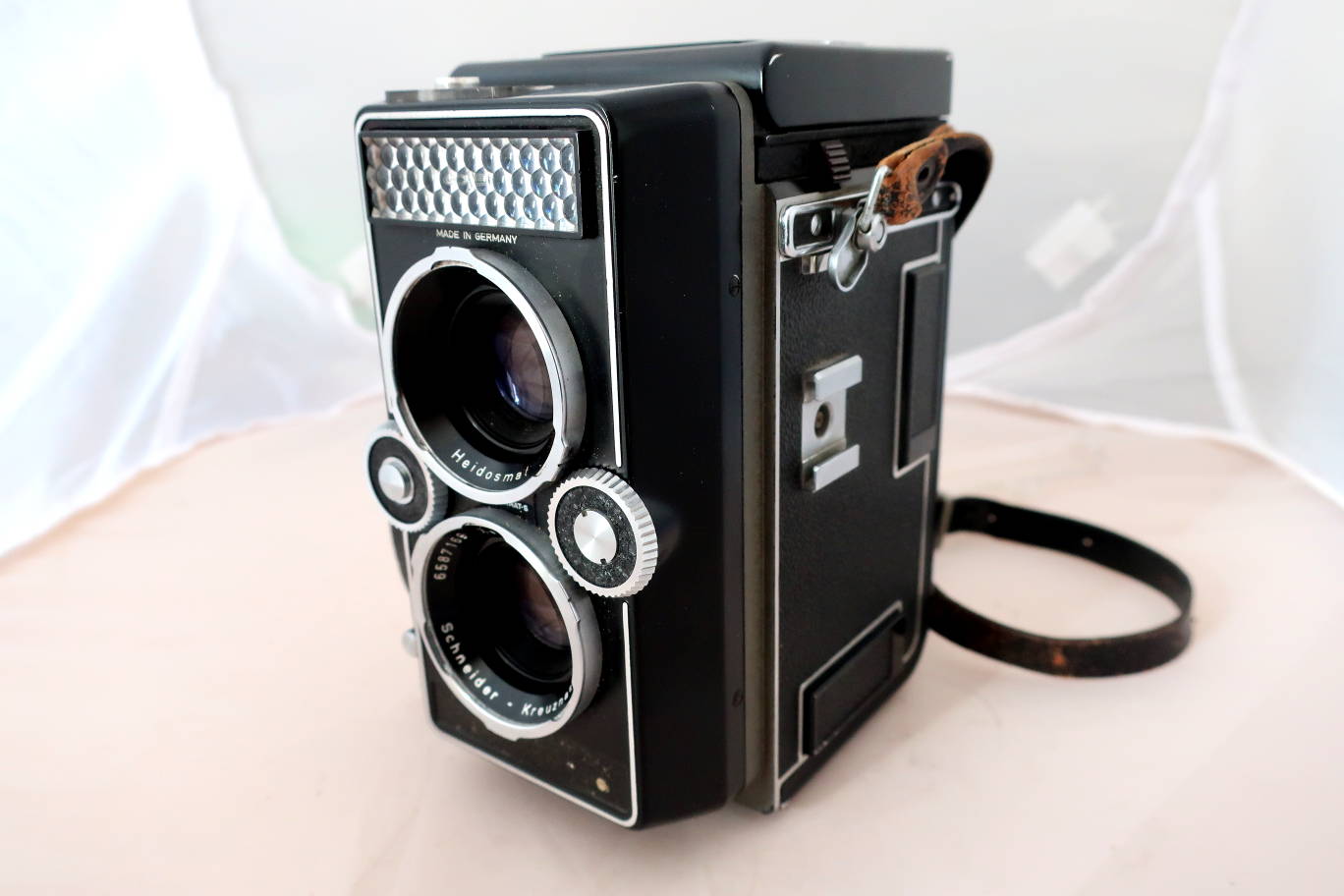

The camera, hood closed

jpgodd/rollei_magic_II_IMG_1698.JPG

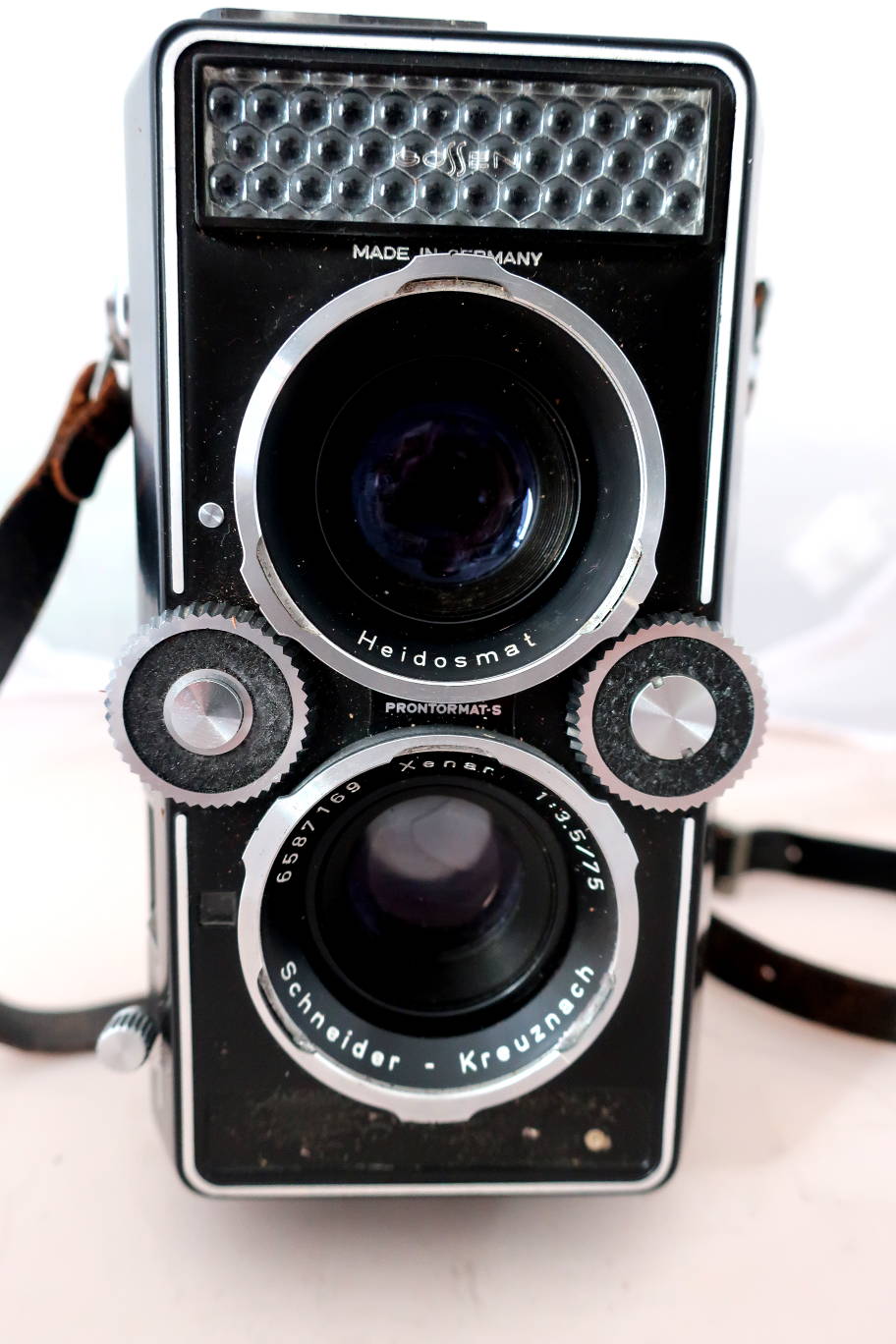

Camera front. This one lacks the Rollei Magic II sign. Filters are bayonet 2, they can automatically be taken into account by the exposure system, filter value visible in the little window to the left of the taking lens in case of. The dial to the left is exposure setting with a push button in its center, to right it's the focusing dial.

jpgodd/rollei_magic_II_IMG_1701.JPG

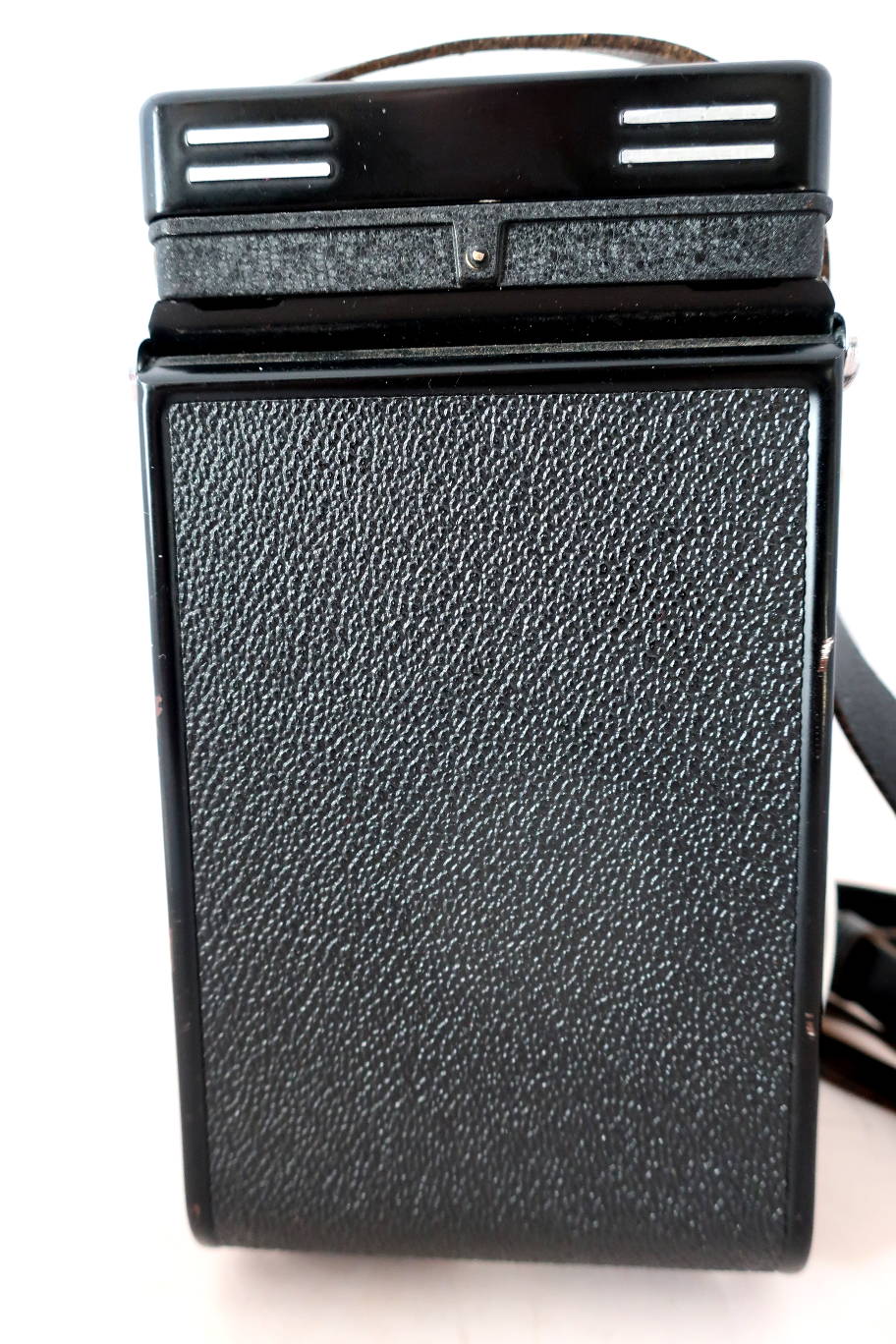

Camera back.

jpgodd/rollei_magic_II_IMG_1705.JPG

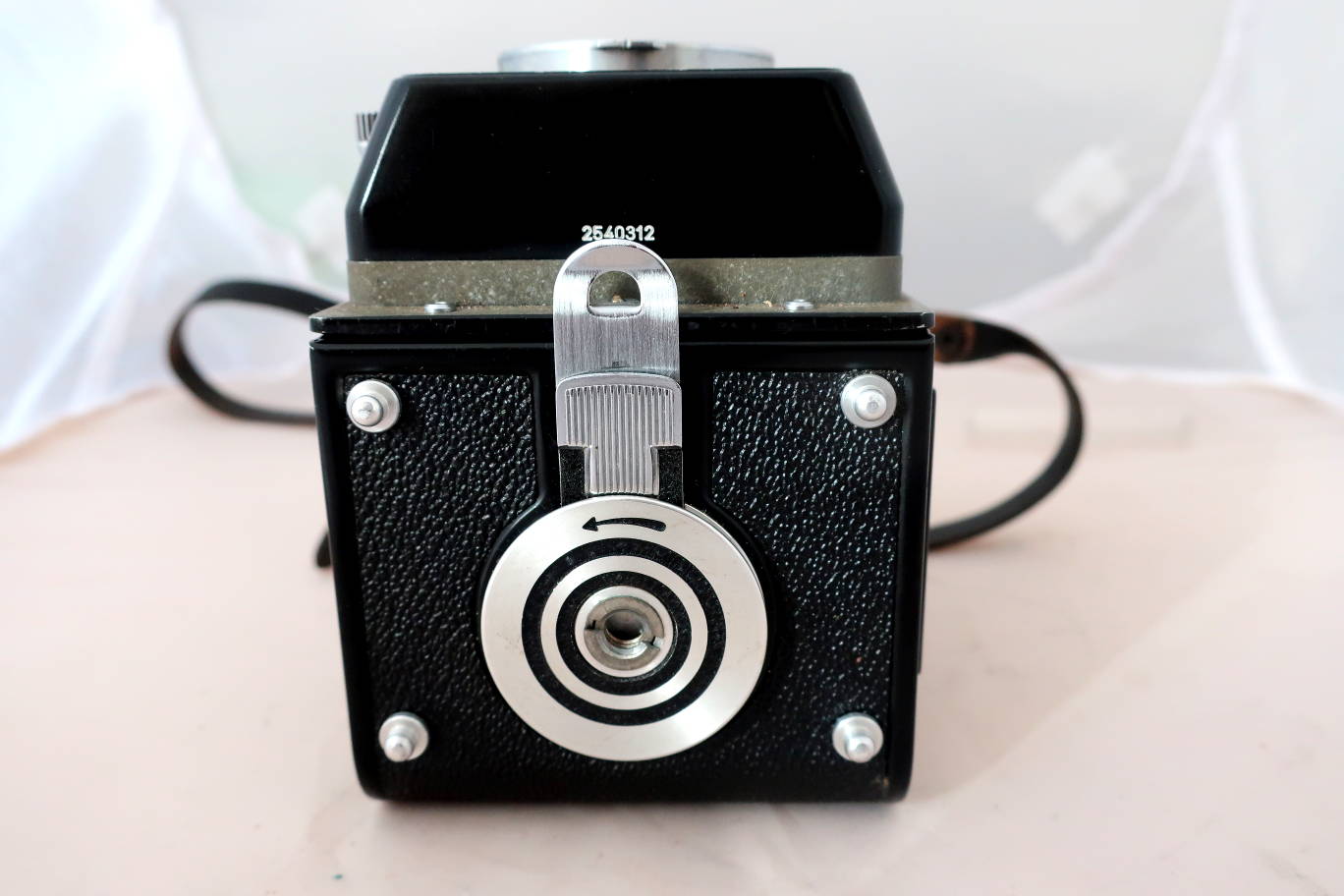

Camera bottom. Tripod mount and camara back opening lever

jpgodd/rollei_magic_II_IMG_1704.JPG

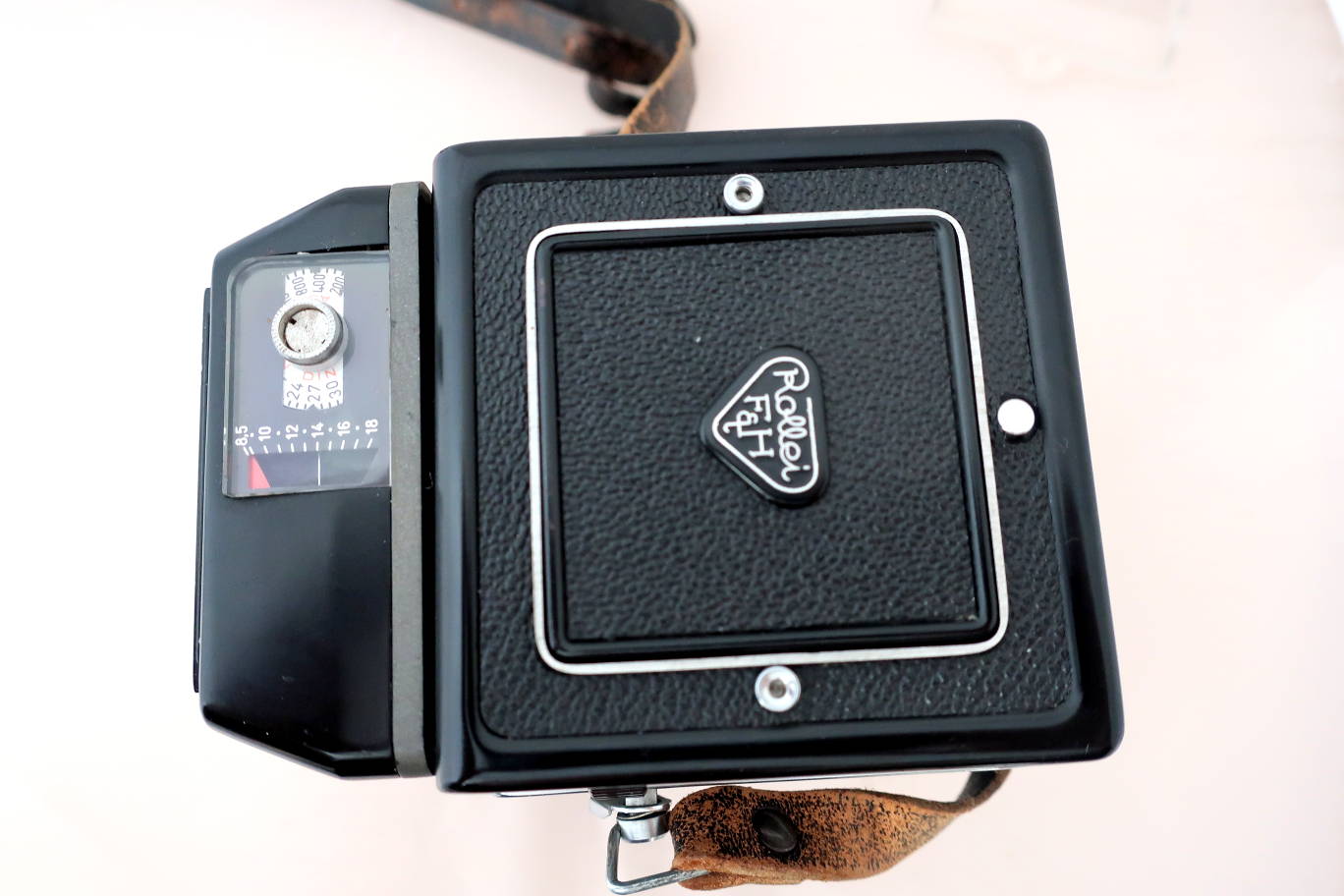

Seen from above. ISO setting and exposure meter needle. In automatic mode the exposure meter results are taken into account by the shutter/aperture system.

jpgodd/rollei_magic_II_IMG_1700.JPG

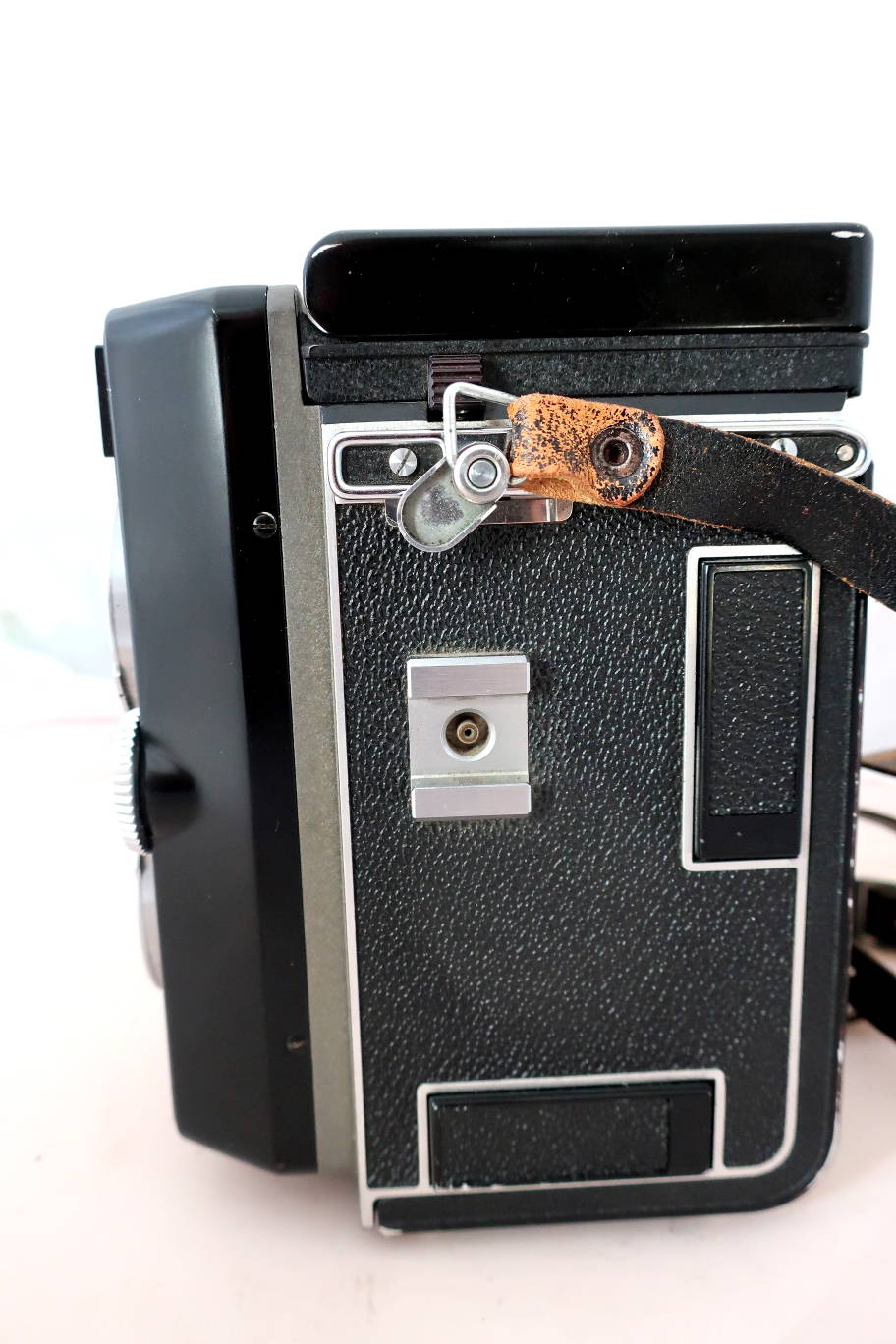

Camera right side. The big tabs liberate the pegs whn the back is opend. Accessory shoe with PC flash socket.

jpgodd/rollei_magic_II_IMG_1718.JPG

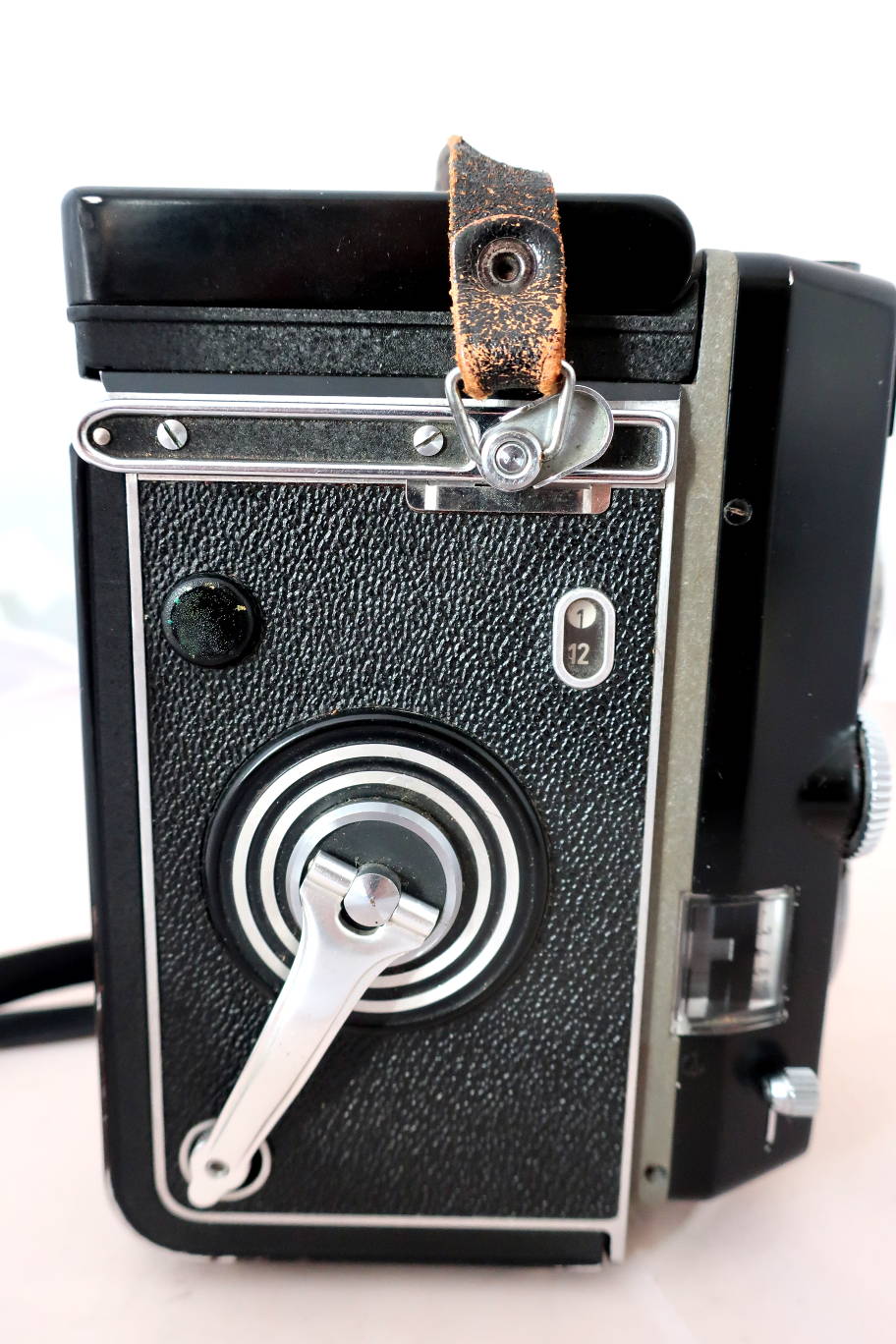

Camera left side. Wind handle, film counter. On the front: exposure system, set to AUTO, all scales are blinded except distance setting (frontmost). Near the bottom: shutter lever and cable release socket.

jpgodd/rollei_magic_II_IMG_1708.JPG

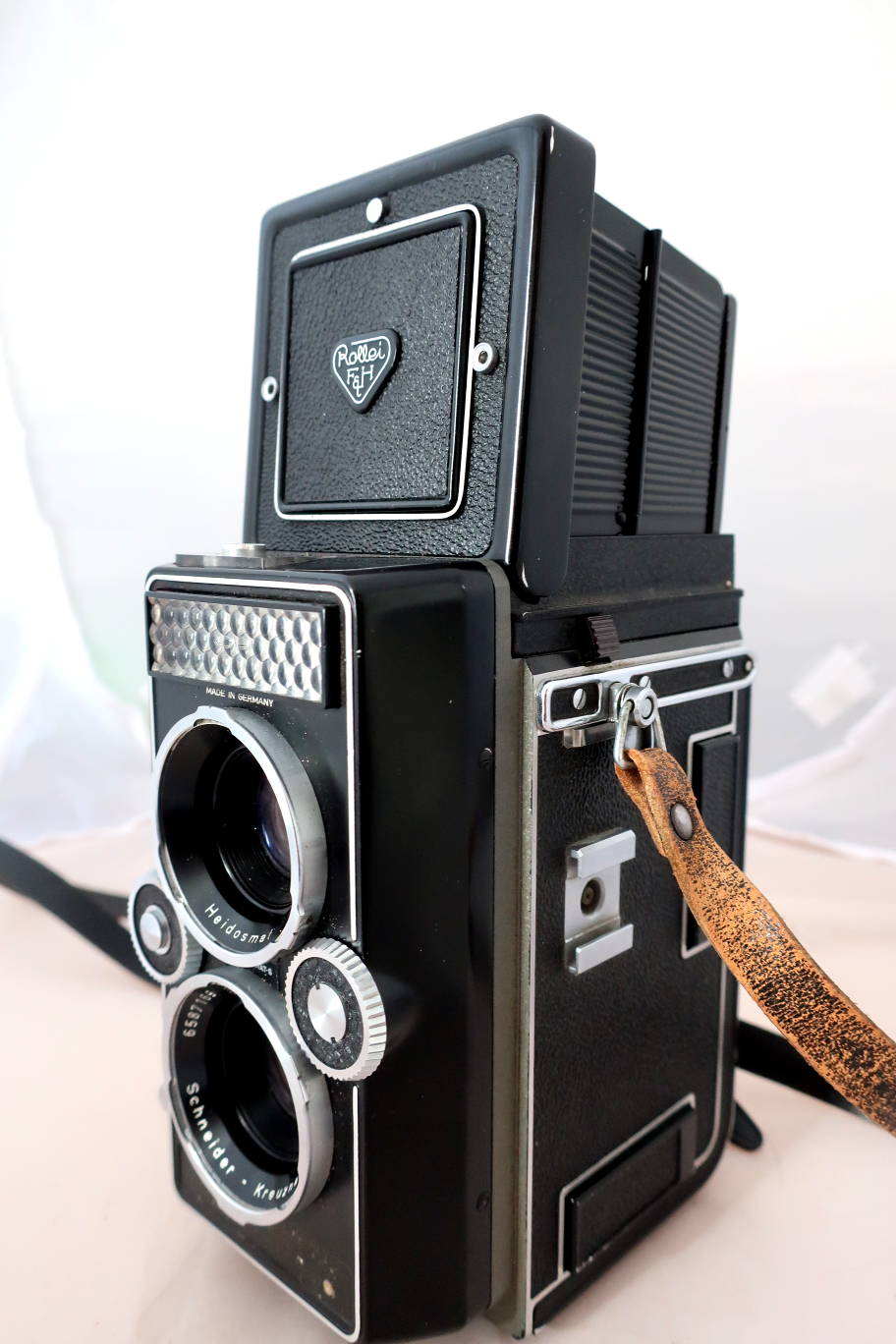

Camera open.

jpgodd/rollei_magic_II_IMG_1710.JPG

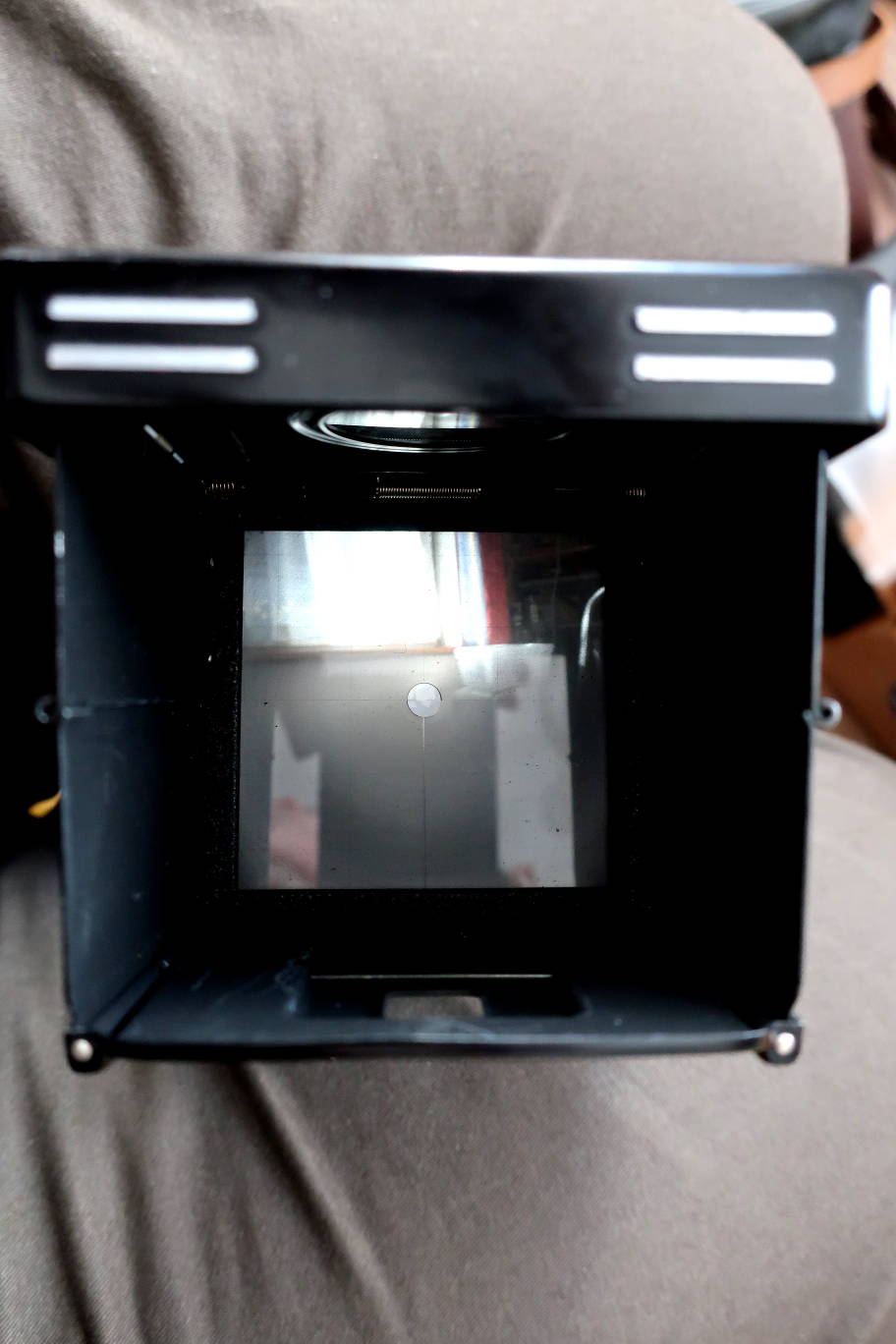

Luminous screen.

jpgodd/rollei_magic_II_IMG_1714.JPG

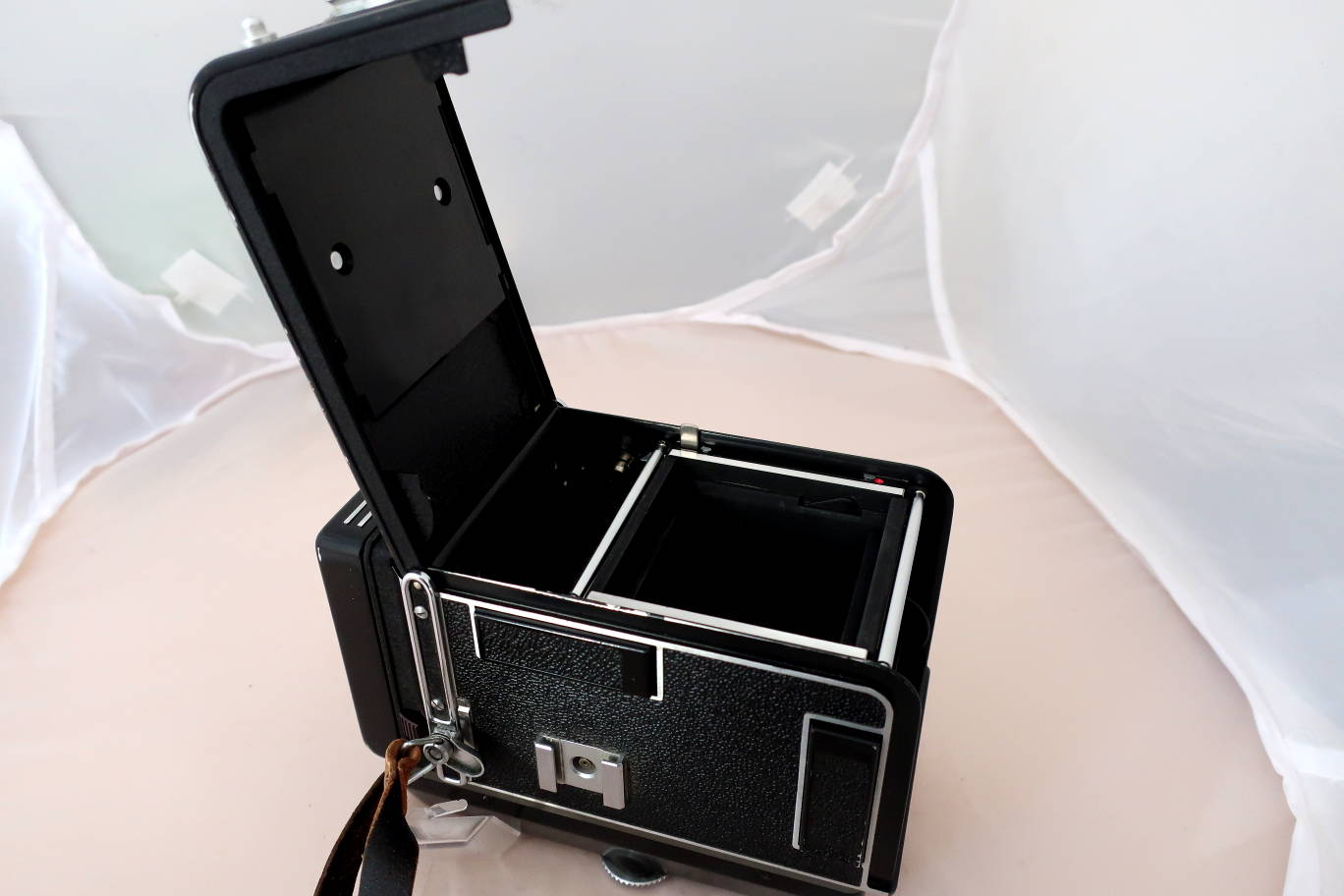

amera back open.

jpgodd/rollei_magic_II_IMG_1715.JPG

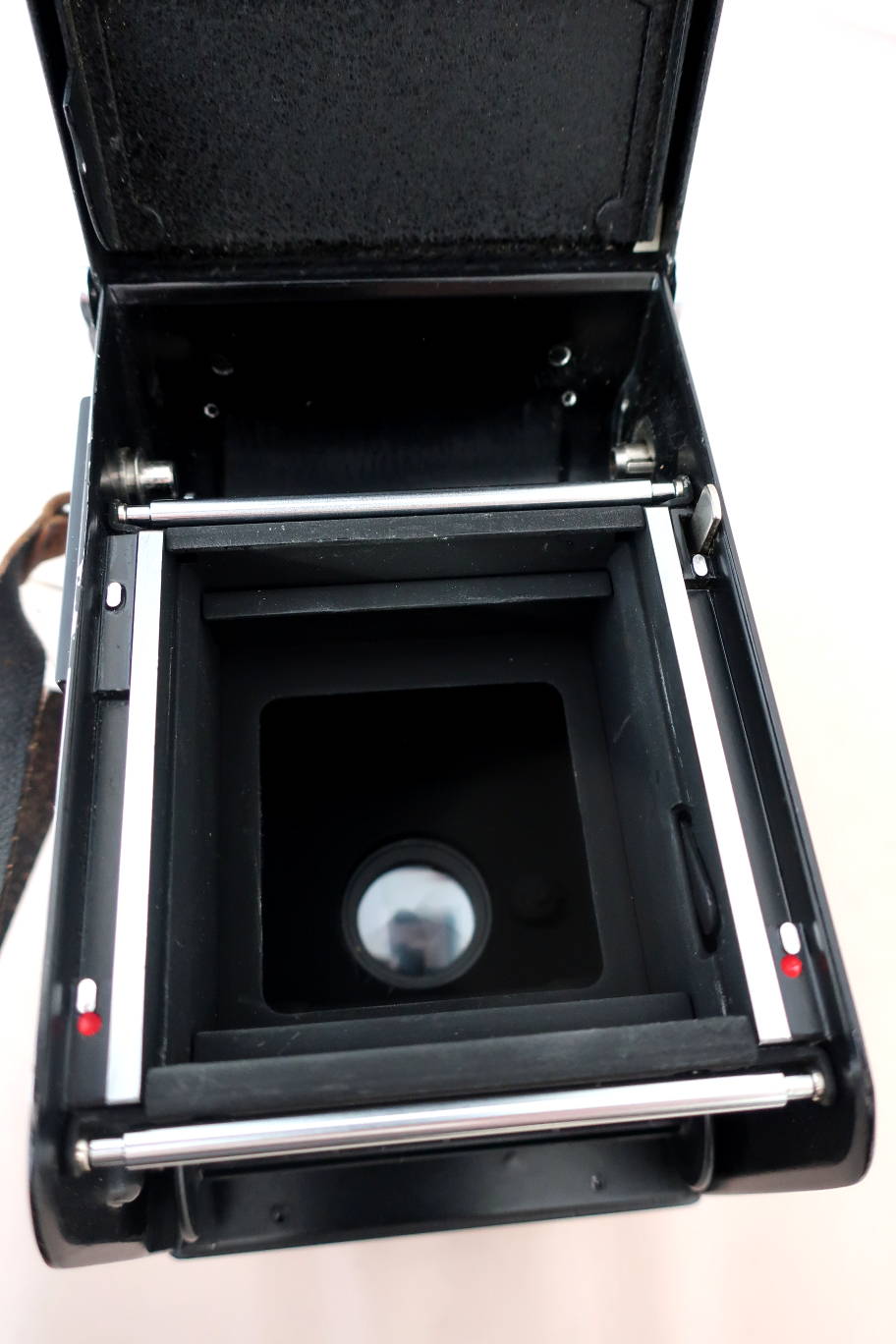

Film chamber.

jpgodd/rollei_magic_II_IMG_1716.JPG

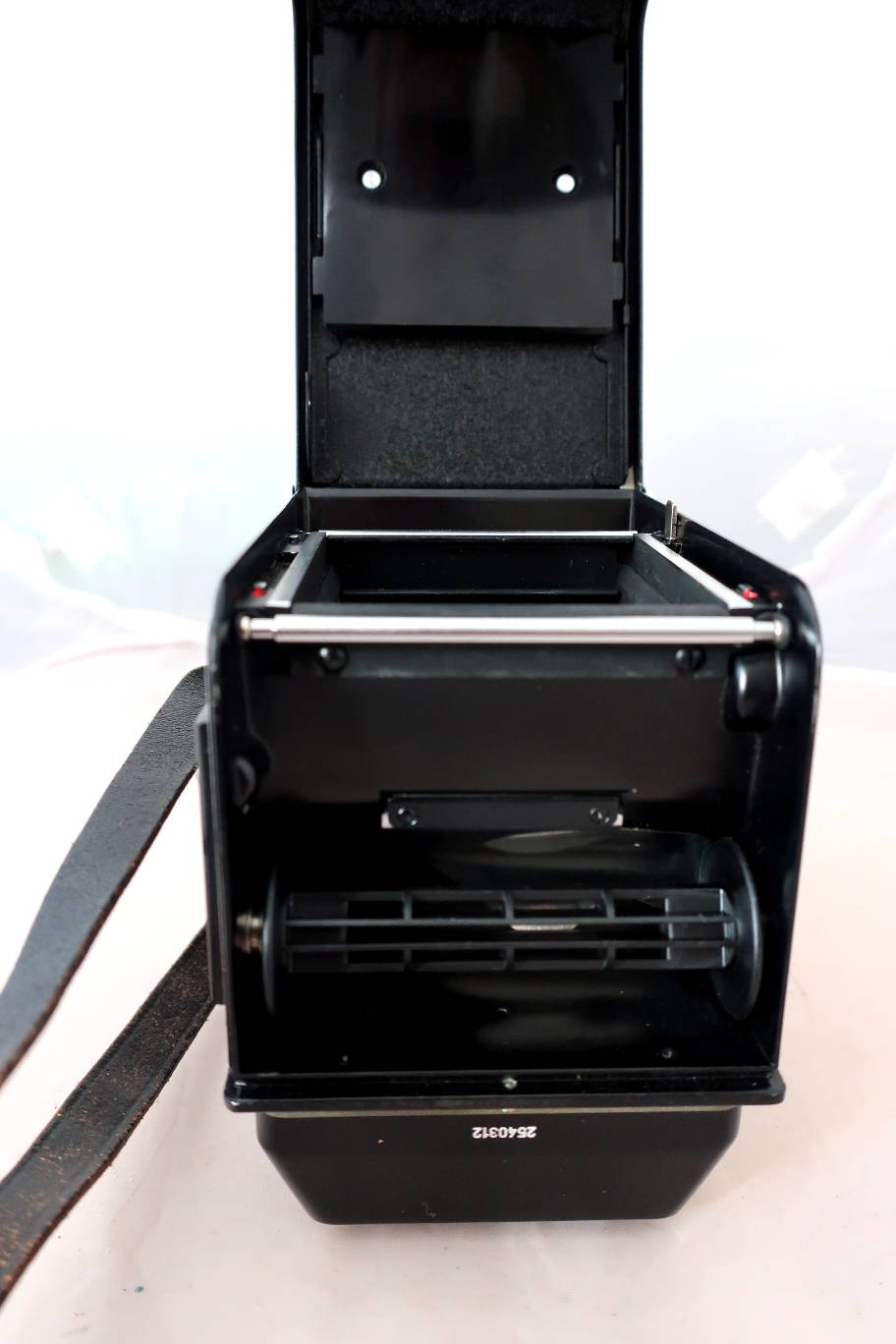

Film spool chamber.

jpgodd/rollei_magic_II_IMG_1717.JPG
With film and arrow at indication mark.

jpgodd/rollei_magic_II_IMG_1712.JPG

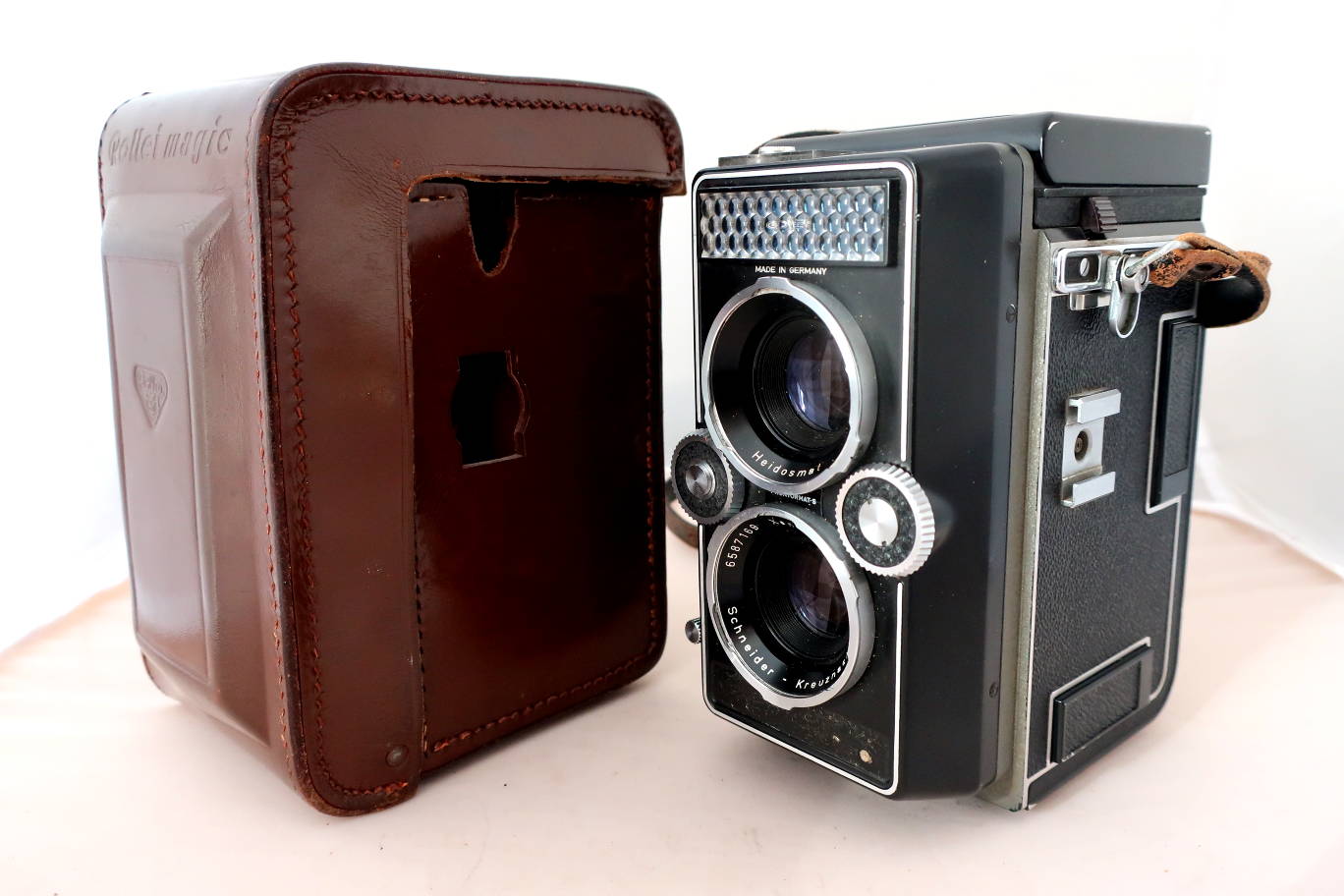

Camera and Eveready case.


The Rollei Magic is a nice idea for an automatic medium format camera, easy to use. The model II is much more interesting as you can set the aperture and speed yourself if you want so. After more than 50 years some of the selenium meters are dead. It is often said that you can use a model II with a dead meter in manual mode, but the shutter seems to be fragile, so check, if the values are consistent. The whole shutter/aperture system can be affected by cold weather.

The camera lacks slow speeds. The front is quite heavy, it's not as equilibrated as a Rolleiflex or Rolleicord. It's a must-have for collectors, but a less interesting model for photographers. Nevertheless the lenses are fine and it takes good photos, Rollei quality style.
