OddCameras.com              Mamiya Universal Lenses

This page deals with the lenses for the Mamiya Universal, the Super 23 and the Press system. It will also show the lens attachments as extension rings and the Polaroid Splitters.

Here are most of lenses for the Mamiya system:

../jpgother/mamiya_uni_lenses_IMG_9272.JPG

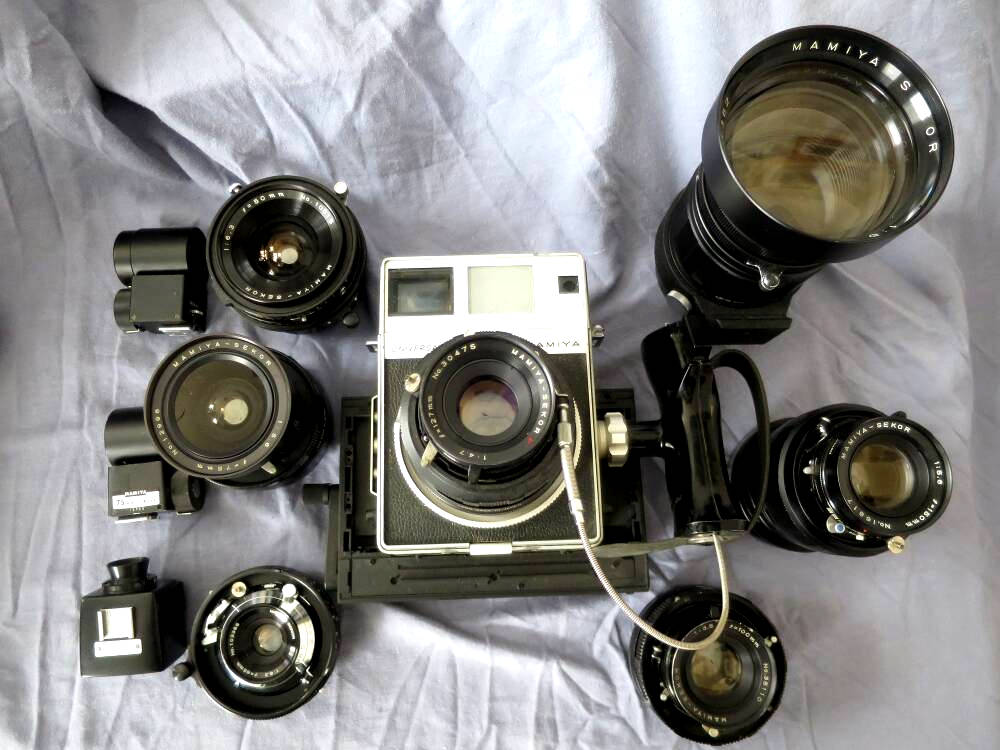

A Universal with a Fuji Instax back and the 127mm lens mounted. On the left side from top: 50mm and finder, 75mm and finder, 65mm and finder. On the right side from bottom: 100m F3.5, 150mm and 250mm F5. All lenses are coupled to the rangsfinder. There is a 100m F2.8 and a 250mm F8, the latter not coupled to the rangefinder which I do not own.

Let us have a look at the different lenses, from the shortest to the longest.

50mm

../jpgother/mamiya_uni_50mm_IMG_9285.JPG

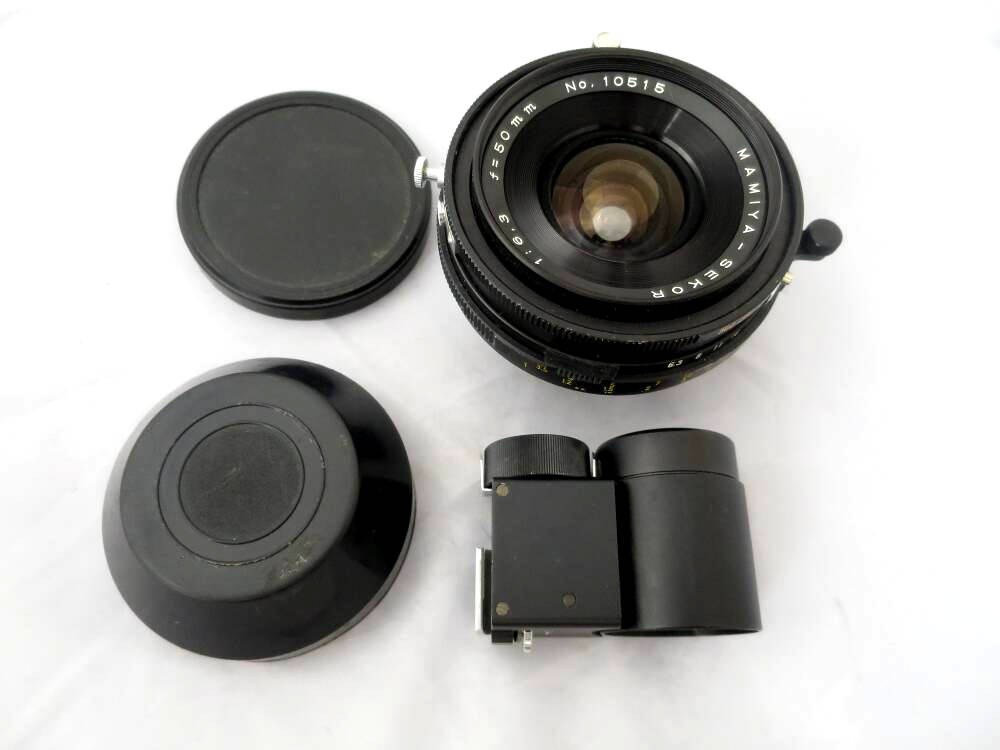

The lens, its caps and the finder.

../jpgother/mamiya_uni_50mm_IMG_9467.JPG

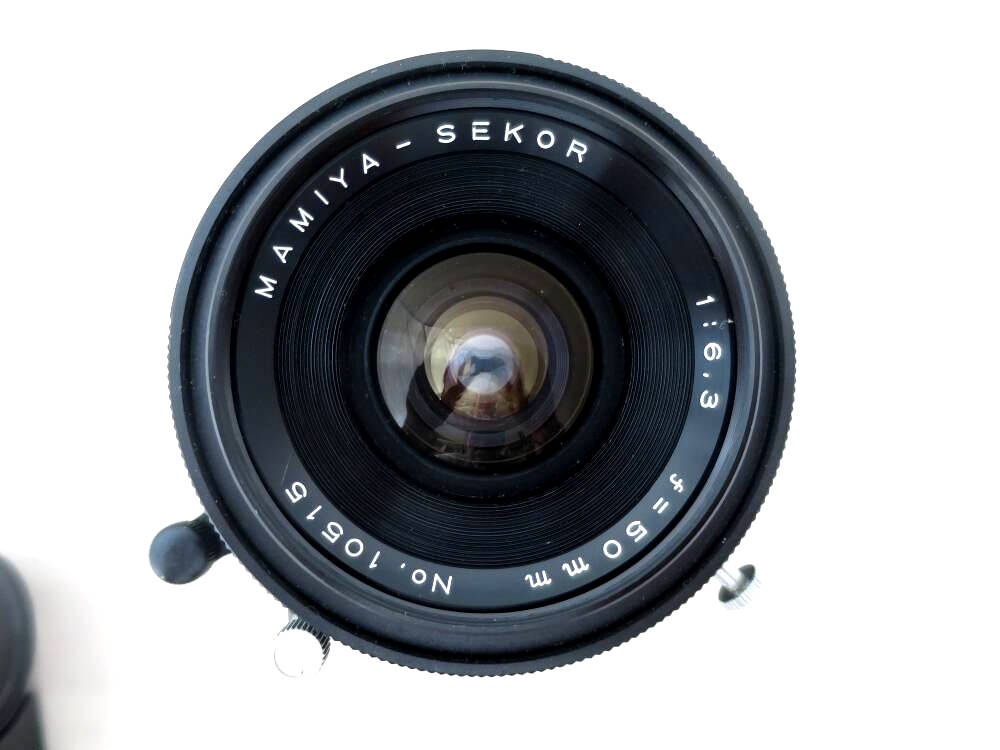

From front.

../jpgother/mamiya_uni_50mm_IMG_9468.JPG

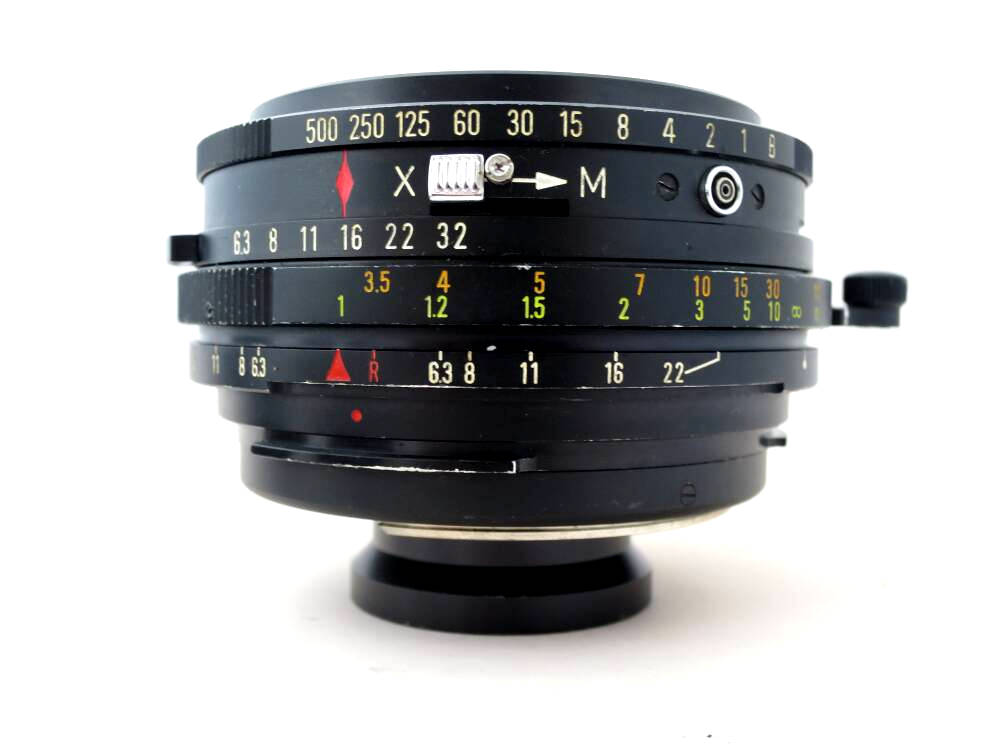

This is a short lens.

../jpgother/mamiya_uni_50mm_IMG_9289.JPG

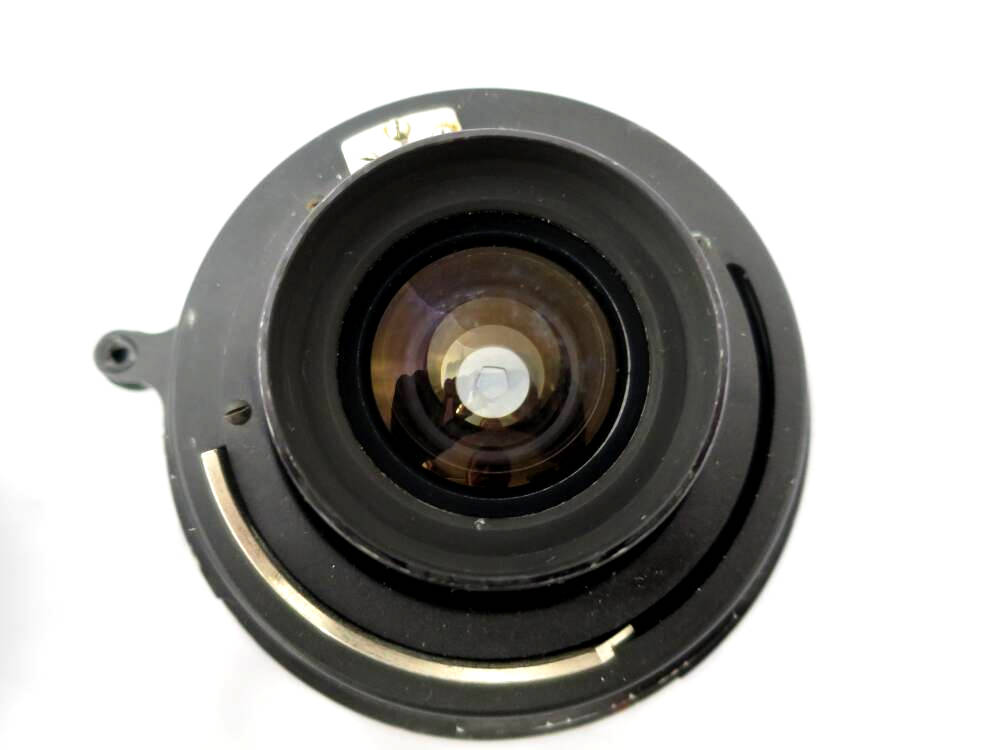

Seen from the back.

../jpgother/mamiya_uni_50mm_IMG_9290.JPG

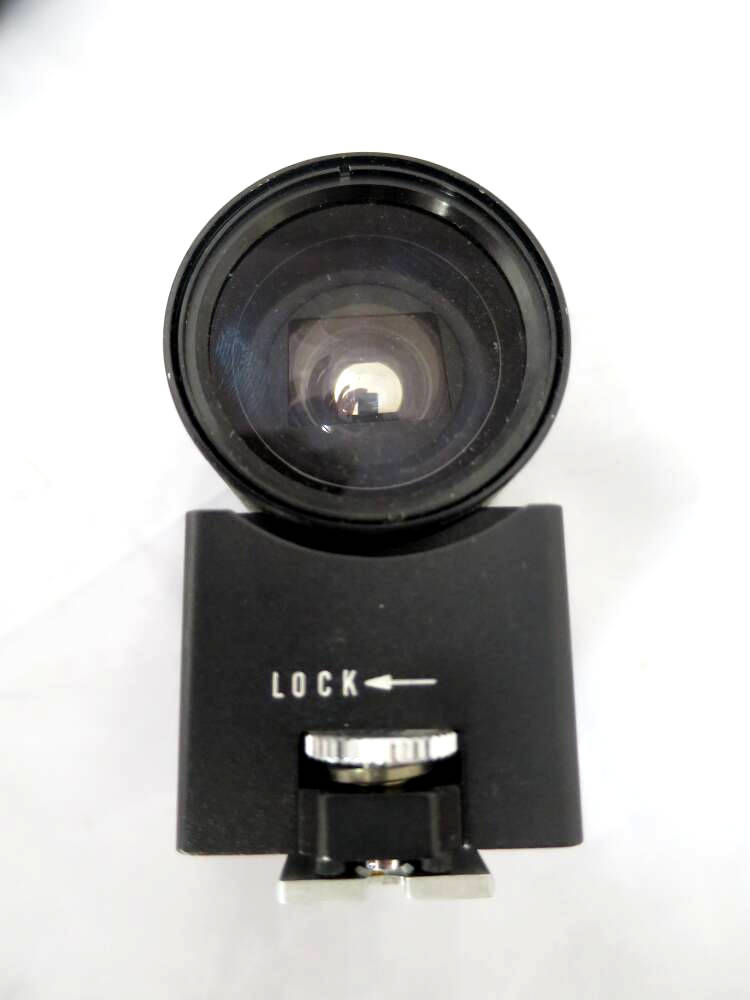

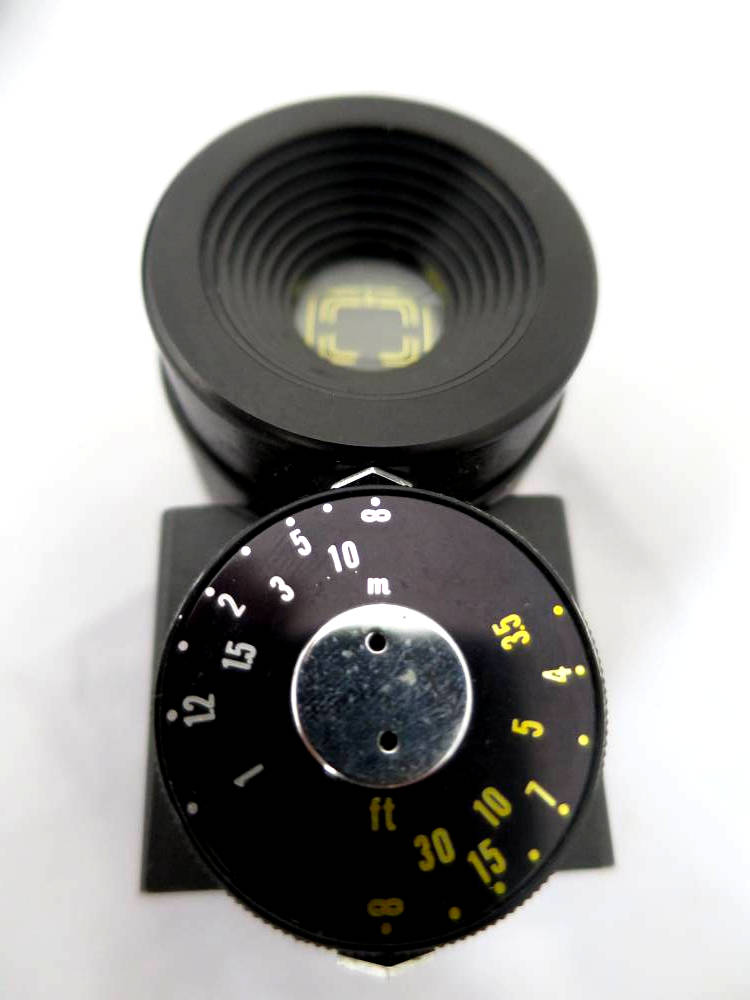

Finder seen from front.

../jpgother/mamiya_uni_50mm_IMG_9291.JPG
This is a multi-formt finder with frames for the Polaroid format lenses, 75mm, 127mm and 150mm. The whole viewing area is approx the 50mm size.

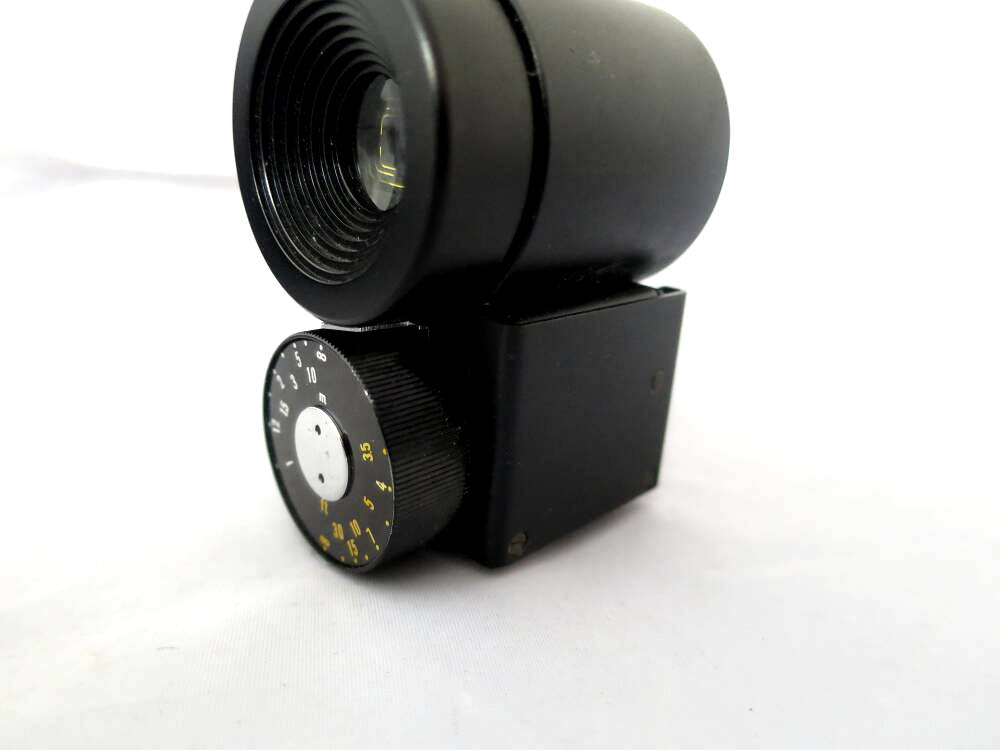

../jpgother/mamiya_uni_50mm_IMG_9292.JPG
Set to infinity.

../jpgother/mamiya_uni_50mm_IMG_9293.JPG

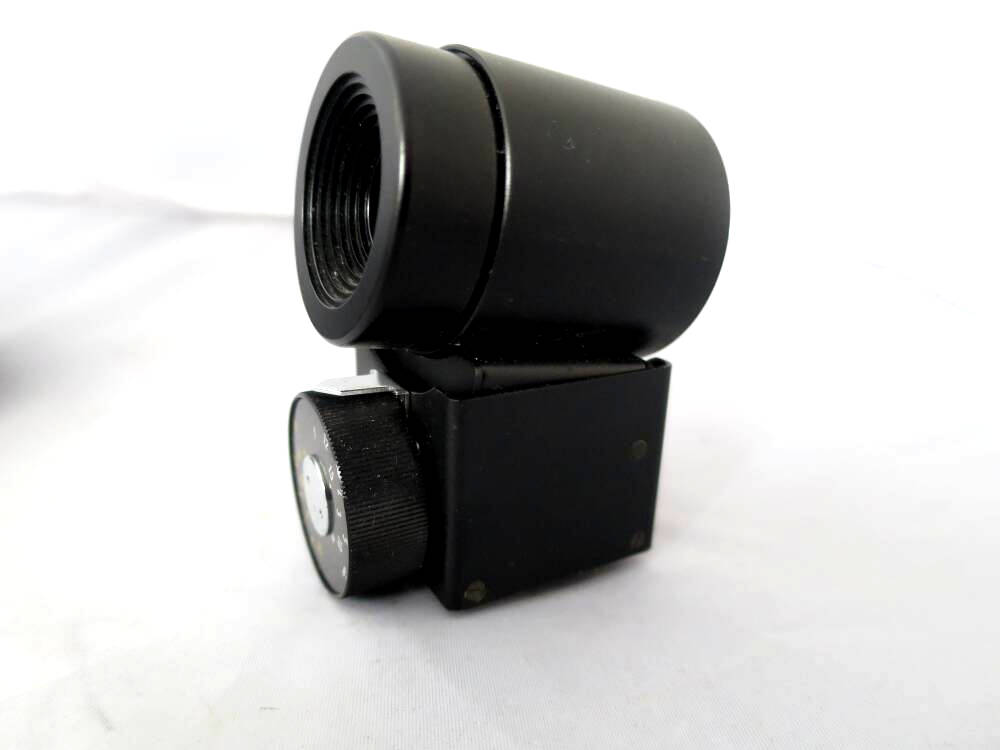

Set to 1m.

The 50mm lens is a
super wide-angle lens, for 6x9 format it's the equivalent to a 21mm lens in 24x36mm. It's a very nice and sharp lens. On Polaroid format there is some vignetting at the corners. The lens is coupled to the rangefinder. For the field of view and the parallax compensation you need a finder.

65mm

../jpgother/mamiya_uni_65mm_IMG_9209.JPG
The lens and the finder.

../jpgother/mamiya_uni_65mm_IMG_9204.JPG
From front.

../jpgother/mamiya_uni_65mm_IMG_9205.JPG

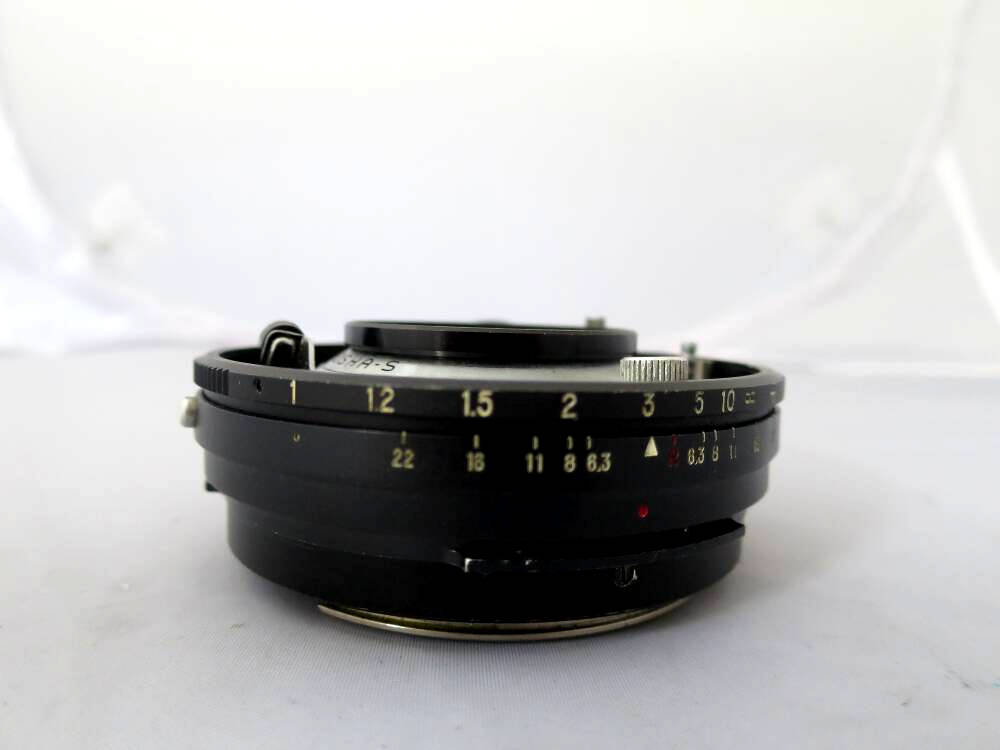

This is an ultra compact lens.

../jpgother/mamiya_uni_65mm_IMG_9208.JPG
Seen from the back.

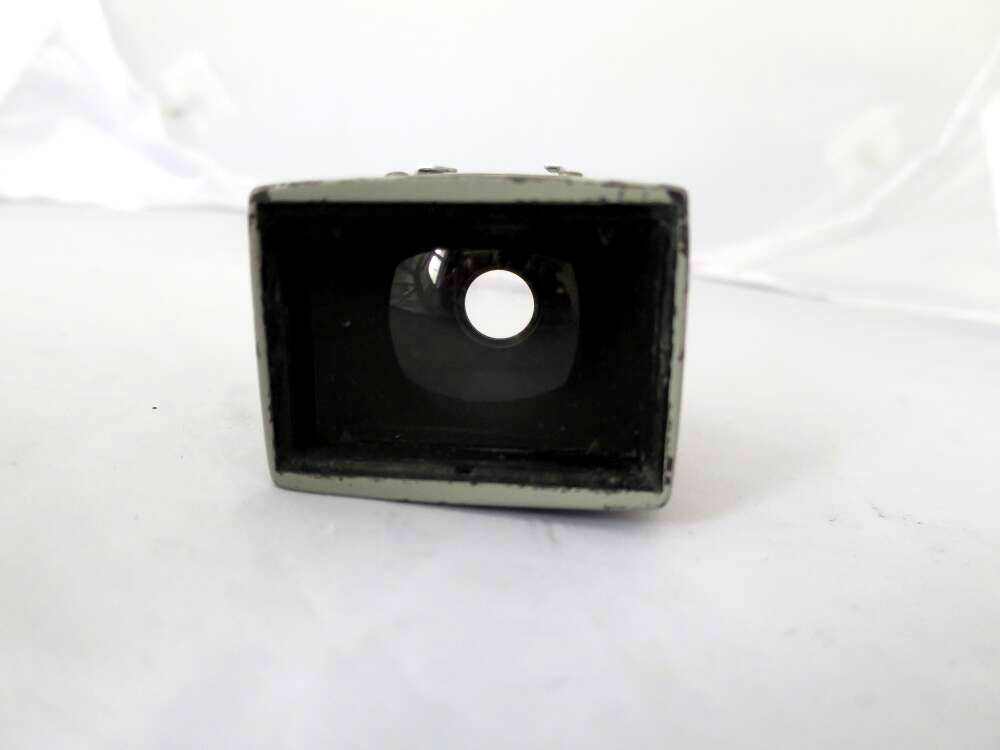

../jpgother/mamiya_uni_65mm_IMG_9210.JPG
Finder seen from front.

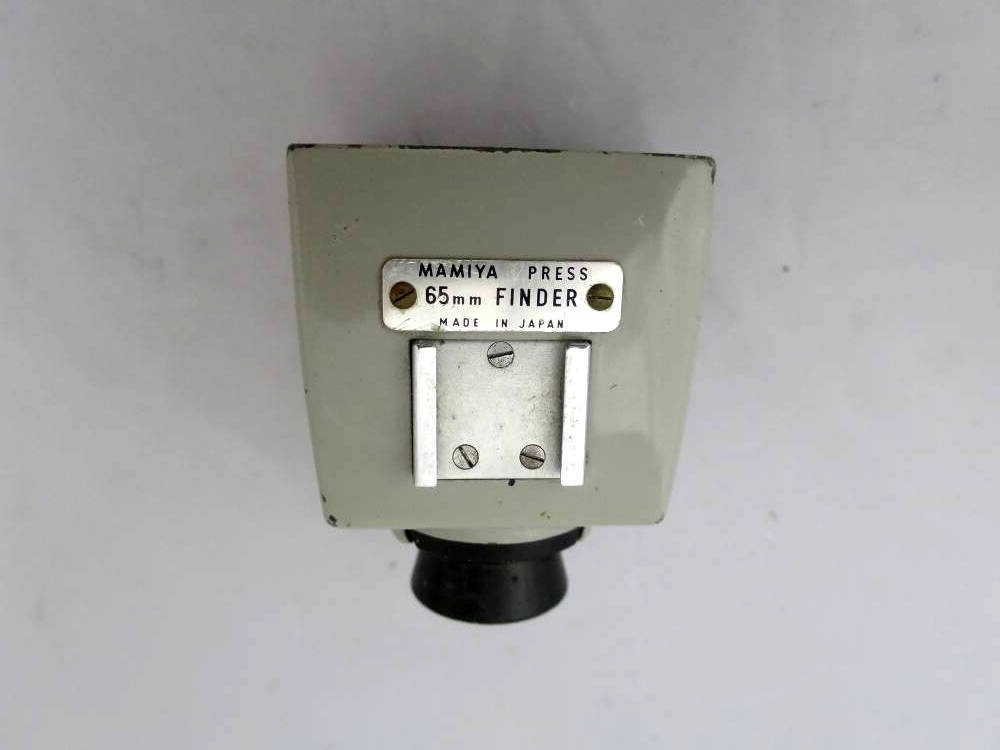

../jpgother/mamiya_uni_65mm_IMG_9211.JPG
Seen from top, you still have an accessory shoe.

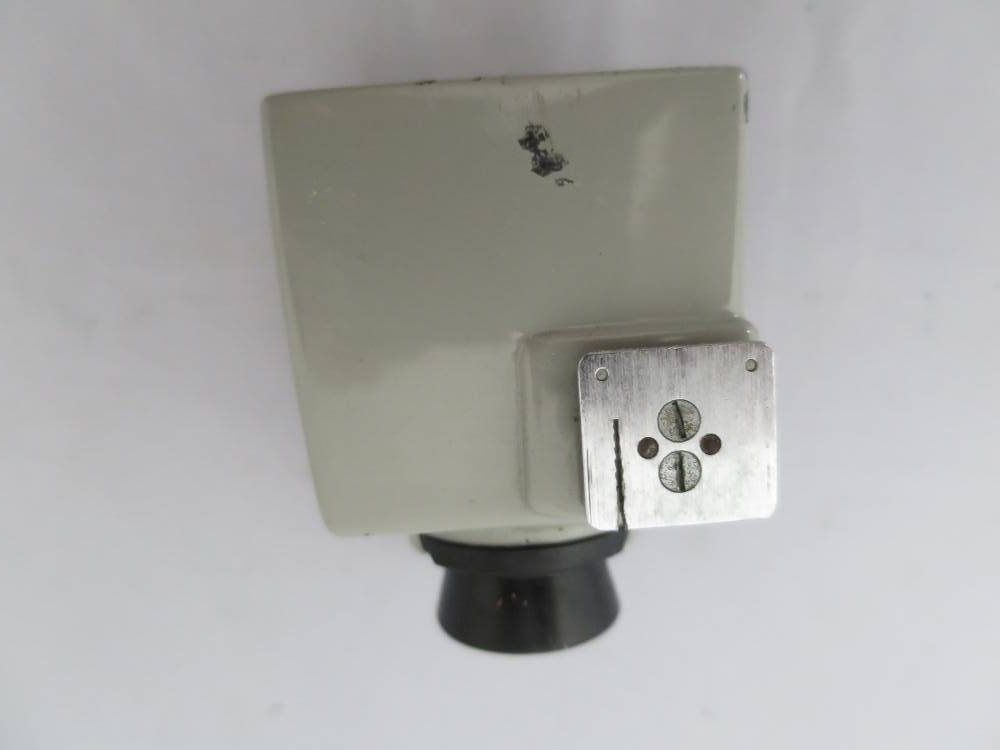

../jpgother/mamiya_uni_65mm_IMG_9212.JPG
This is an old version for the offset accessory shoe of the Press model.

../jpgother/mamiya_uni_65mm_IMG_9216.JPG

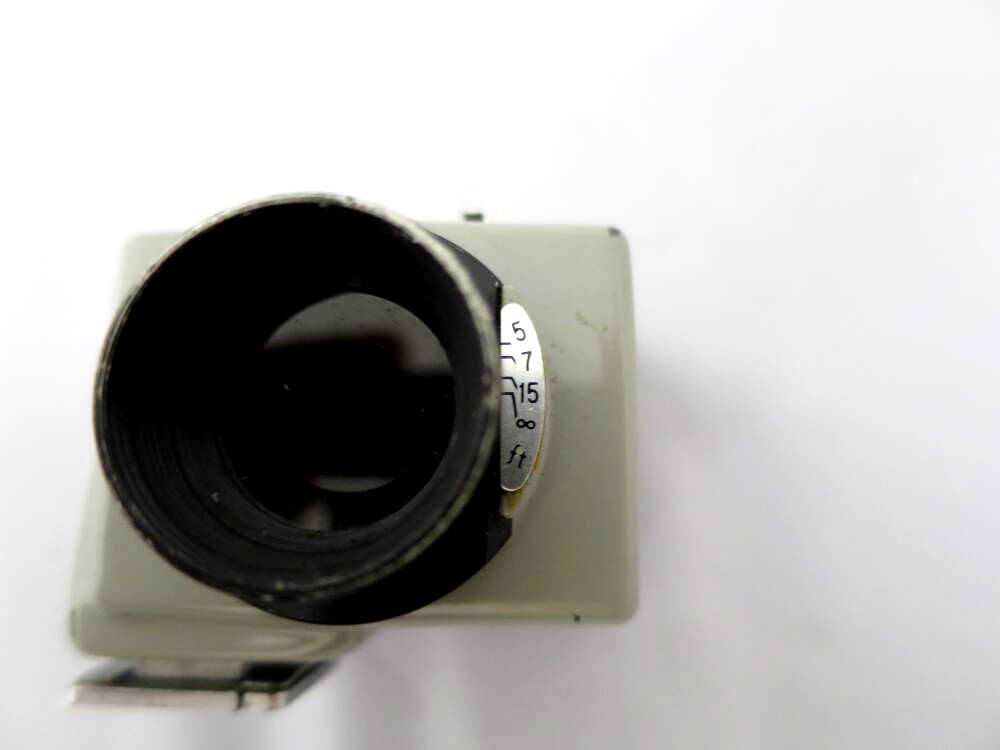

Set to infinity.

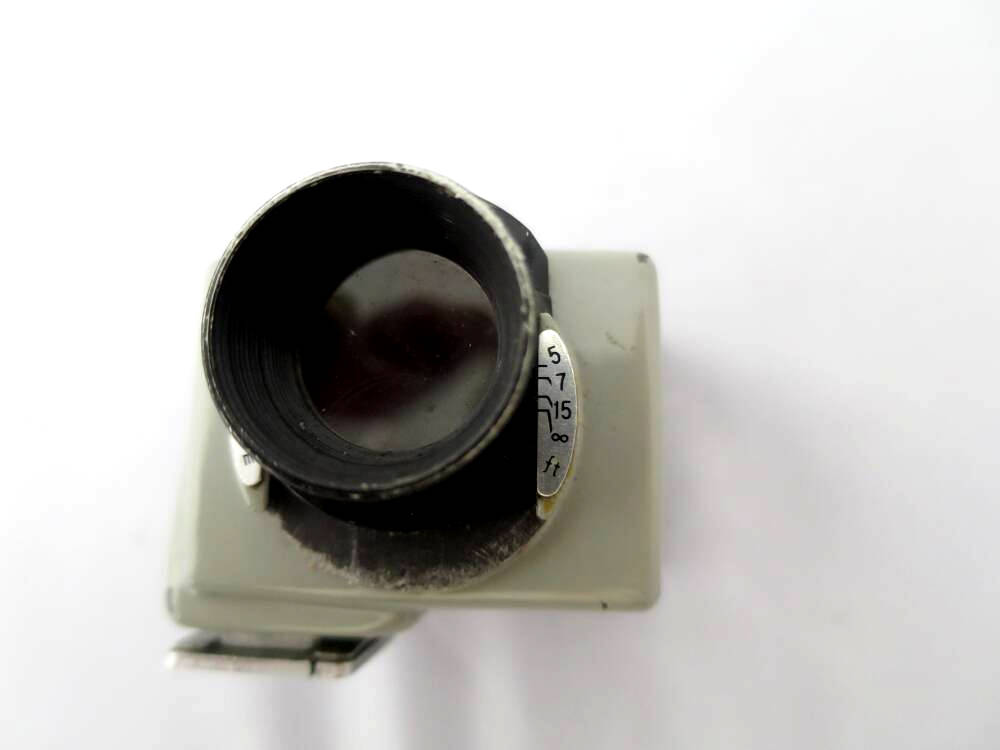

../jpgother/mamiya_uni_65mm_IMG_9215.JPG
Set to 1.5m or 5 feet.

../jpgother/mamiya_uni_65mm_IMG_9265.JPG
A newer version with black finder.

The 65mm lens is a
wide-angle lens, equivalent to 28mm in 24x36mm format. It's a very nice and sharp lens. On Polaroid format there is some vignetting at the corners. The lens is coupled to the rangefinder. For the field of view and the parallax compensation you need a finder.

75mm

../jpgother/mamiya_uni_75mm_IMG_9274.JPG

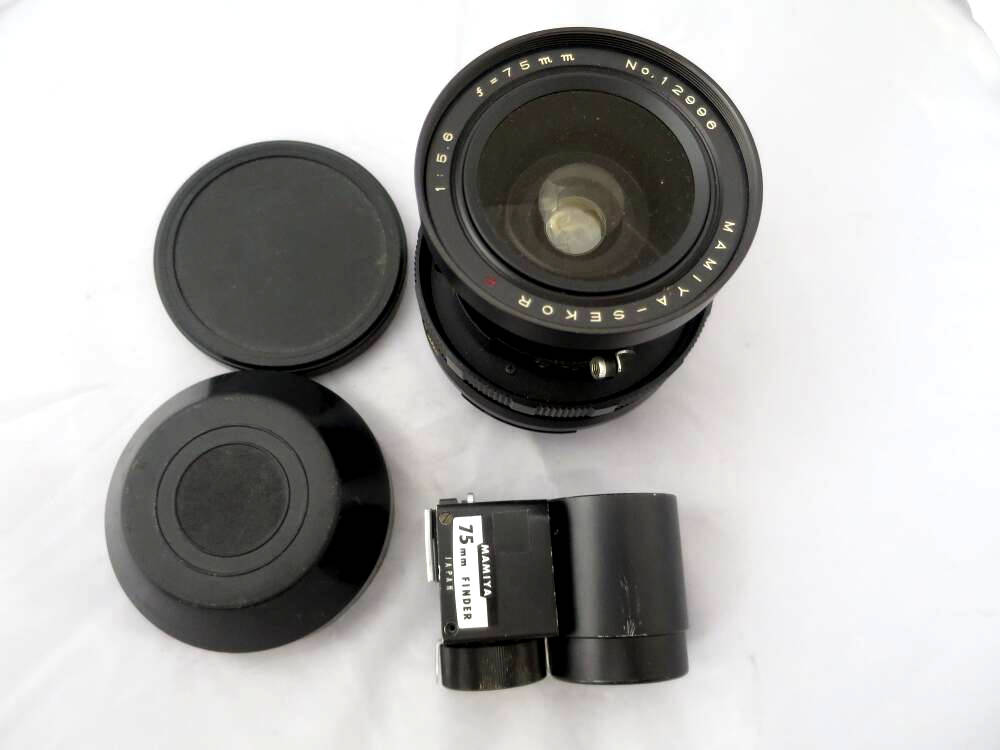

The lens, its caps and the finder.

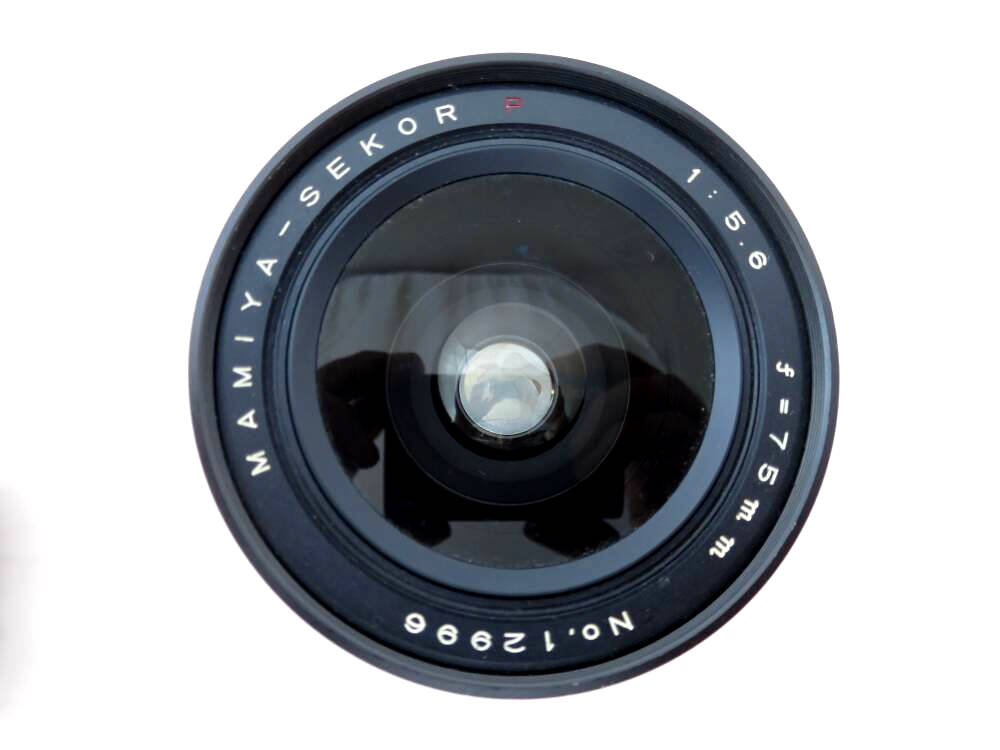

../jpgother/mamiya_uni_75mm_IMG_9472.JPG
From front.

../jpgother/mamiya_uni_75mm_IMG_9276.JPG
This is not a small lens.

../jpgother/mamiya_uni_75mm_IMG_9475.JPG

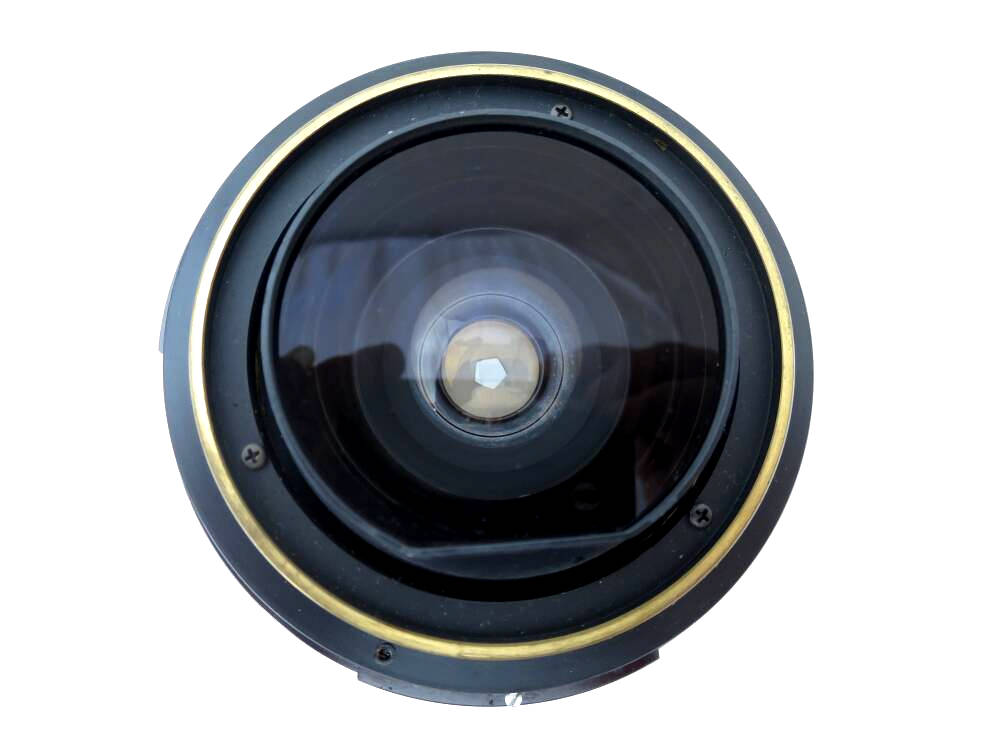

Seen from the back.

../jpgother/mamiya_uni_75mm_IMG_9282.JPG

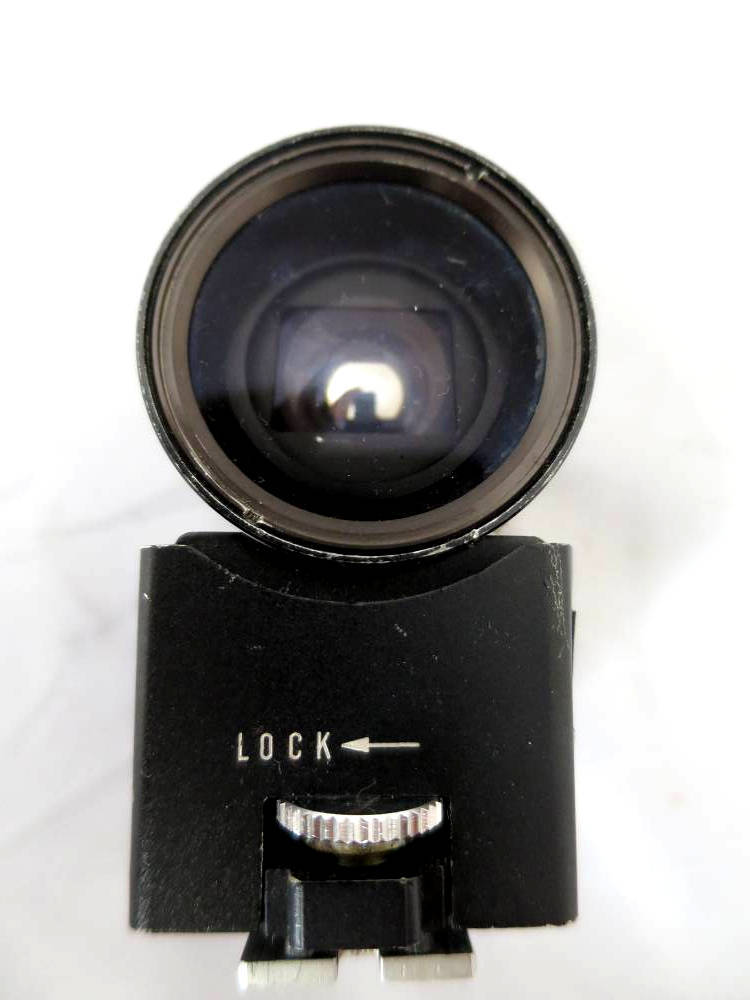

Finder seen from front.

../jpgother/mamiya_uni_75mm_IMG_9283.JPG

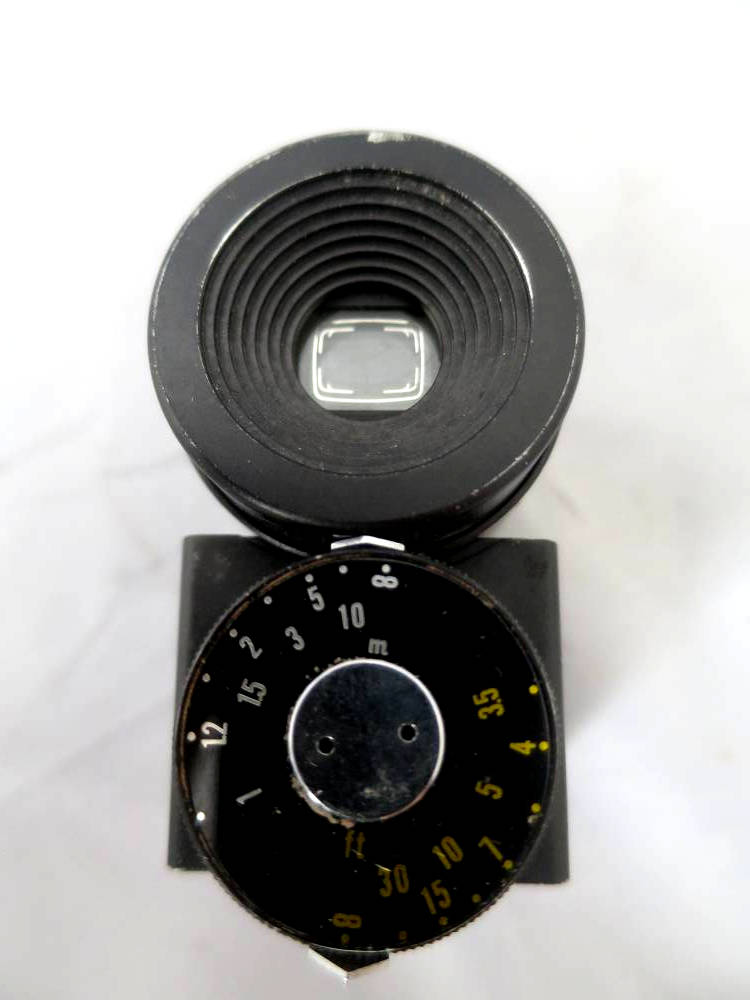

Finder seen from the back. It has bright frame lines for 6x9 and Polaroid format + indications for 6x7.

../jpgother/mamiya_uni_75mm_IMG_9281.JPG
Finder, set to infinity

../jpgother/mamiya_uni_75mm_IMG_9294.JPG
Lens with shade.

../jpgother/mamiya_uni_75mm_IMG_9296.JPG

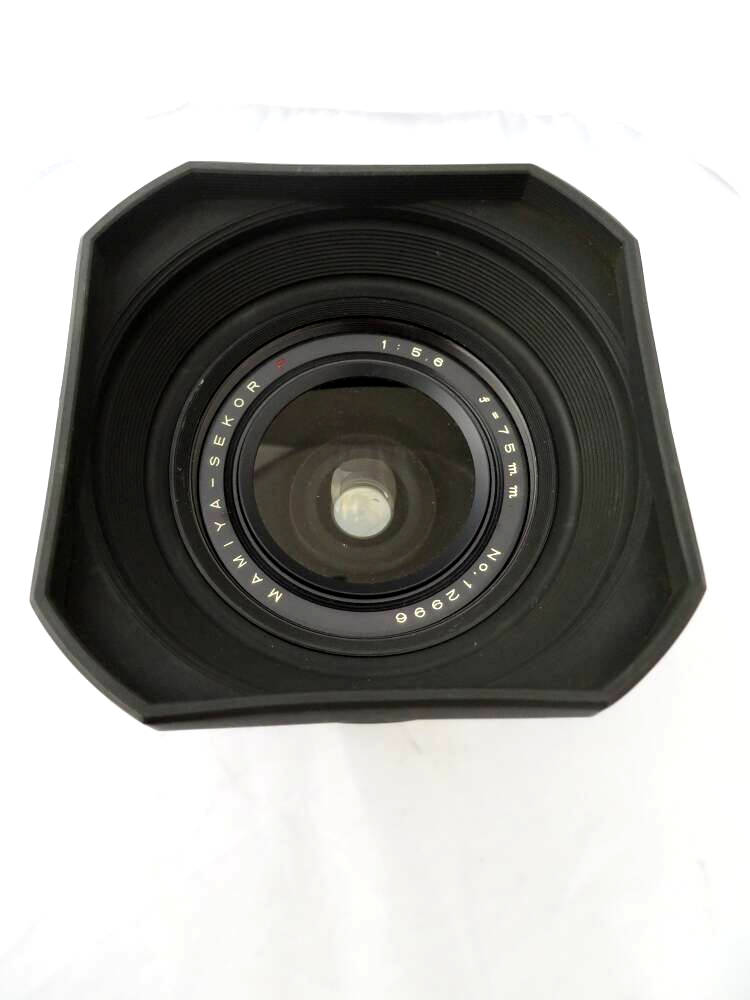

Seen from the front.

../jpgother/mamiya_uni_75mm_IMG_9478.JPG
Shade folded

../jpgother/mamiya_uni_75mm_IMG_9479.JPG

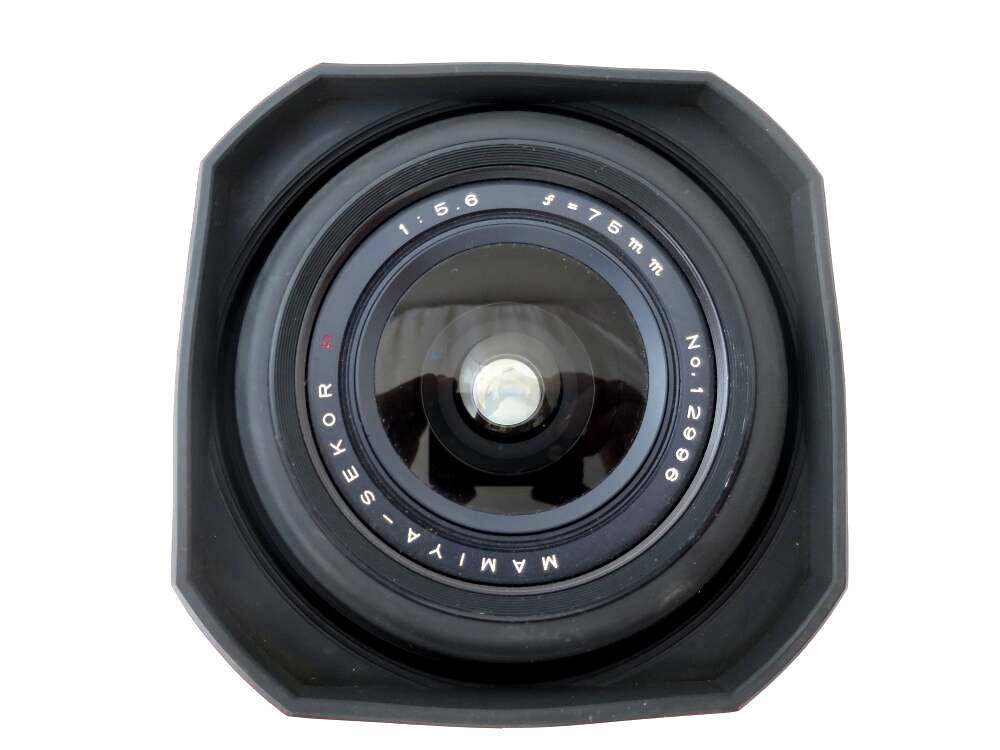

Seen from the front.

This is the wide angle lens for Polaroid format. In Polaroid it's the
equivalent to 27mm in 24x36mm format, in 6x9 it's a moderate wide angle, 32mm equivalent. As all lenses of this system, it's a sharp and contasty lens.

90mm

../jpgother/mamiya_uni_90mm_IMG_9238.JPG

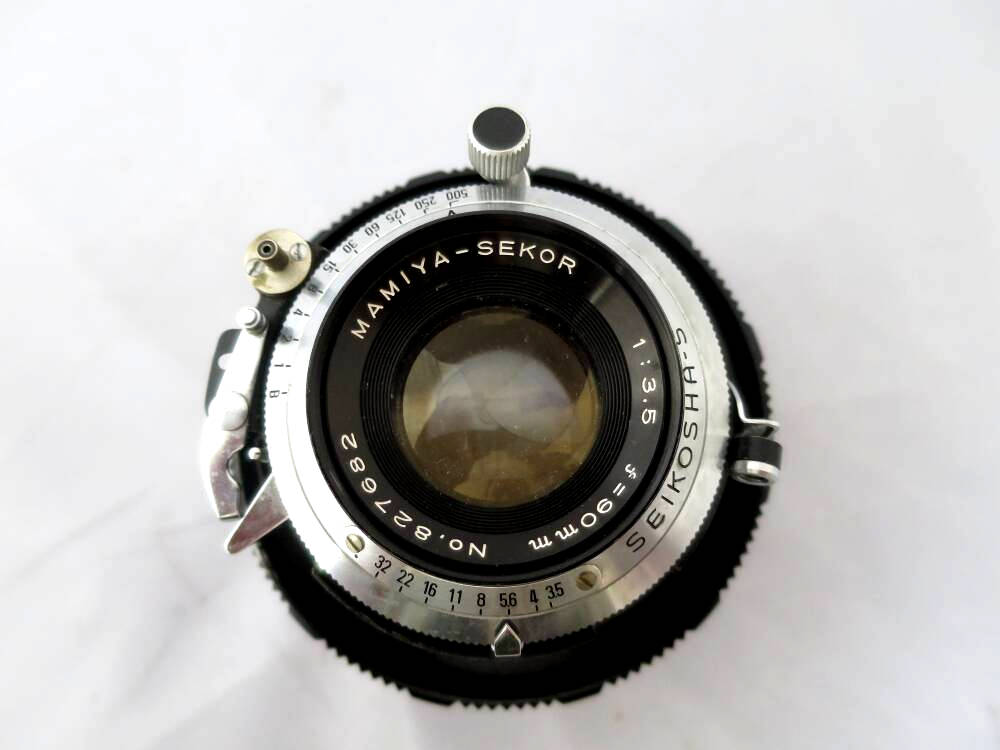

The lens, from front.

../jpgother/mamiya_uni_90mm_IMG_9235.JPG

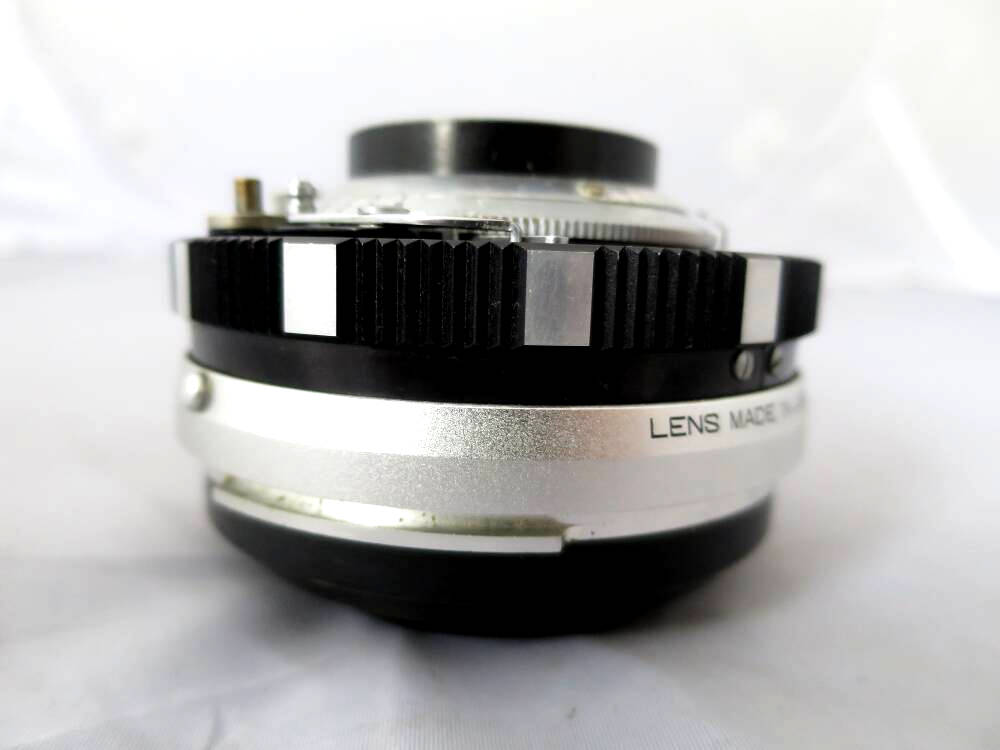

This is a short collapsible lens.

../jpgother/mamiya_uni_90mm_IMG_9236.JPG

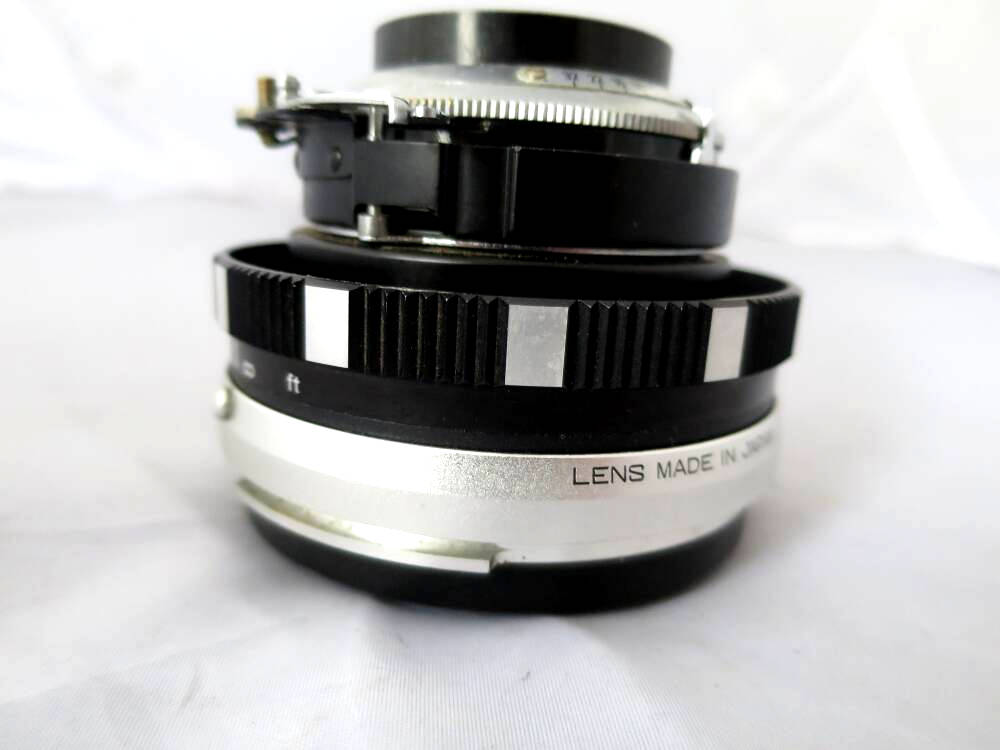

Lens extended.

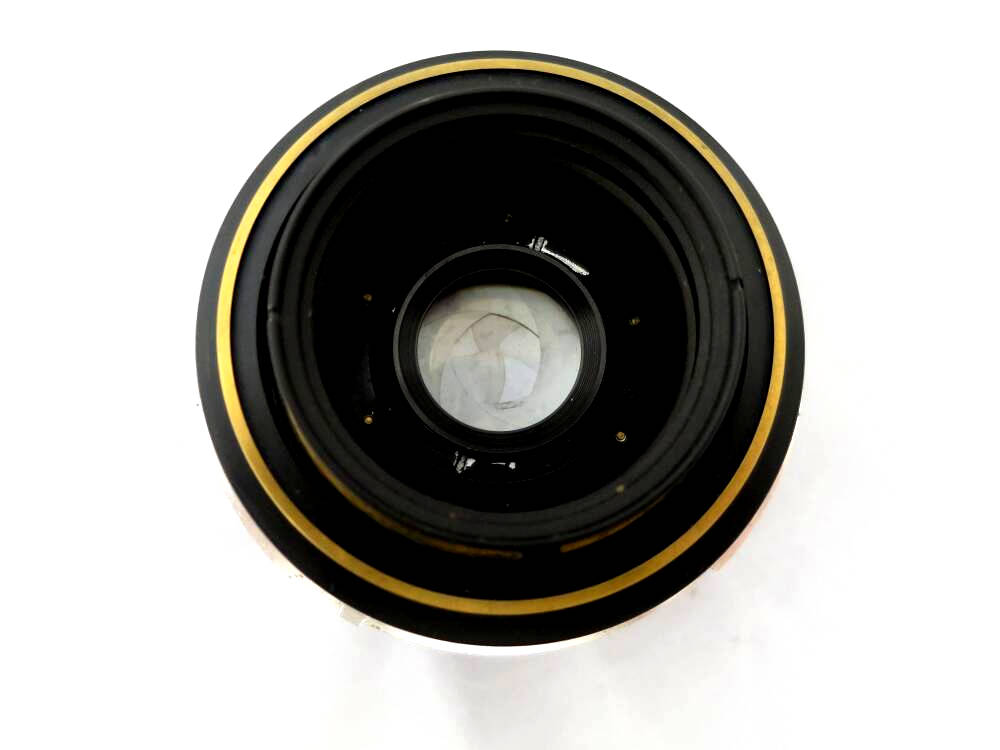

../jpgother/mamiya_uni_90mm_IMG_9239.JPG
Seen from the back.

This was the old standard lens for the Press models. It's collapsible for the use with the bellows extension. A good, sharp and contrasty lens which built the reputation of Mamiya medium format lenses.

100mm

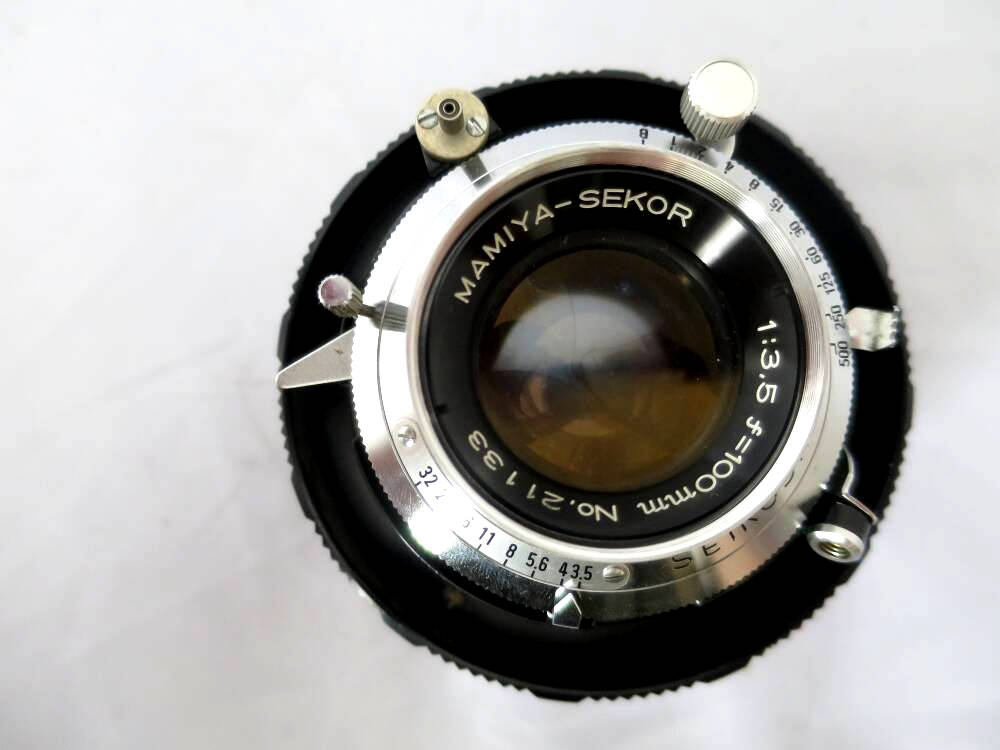

../jpgother/mamiya_uni_100mm_IMG_9185.JPG
The lens, from front.

../jpgother/mamiya_uni_100mm_IMG_9186.JPG

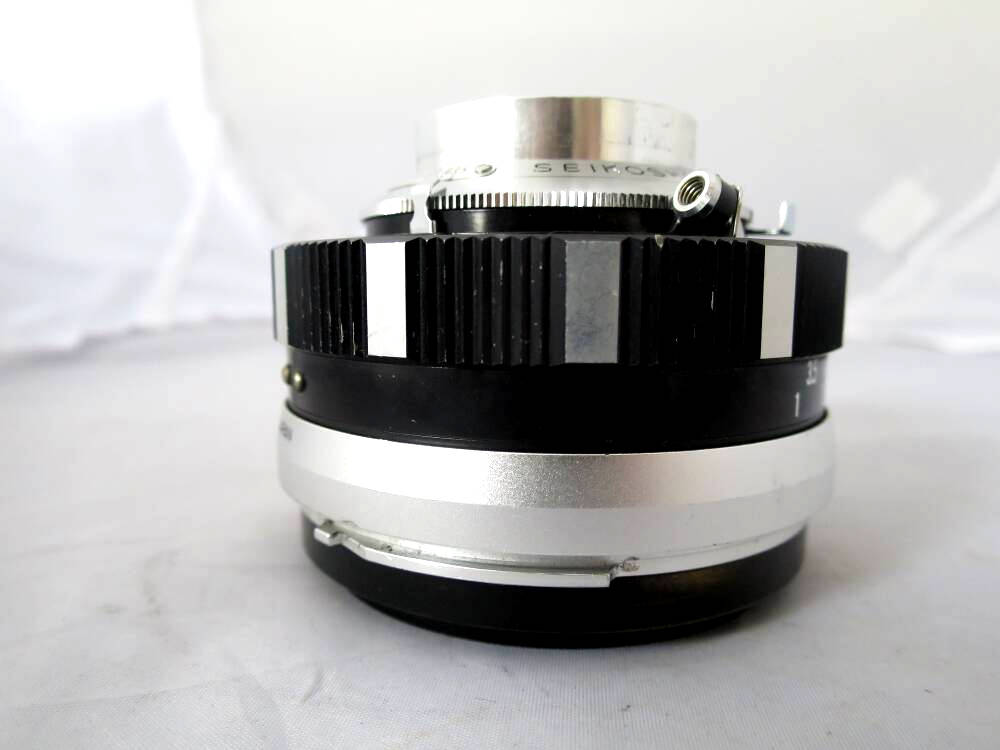

This is a short collapsible lens.

../jpgother/mamiya_uni_100mm_IMG_9189.JPG

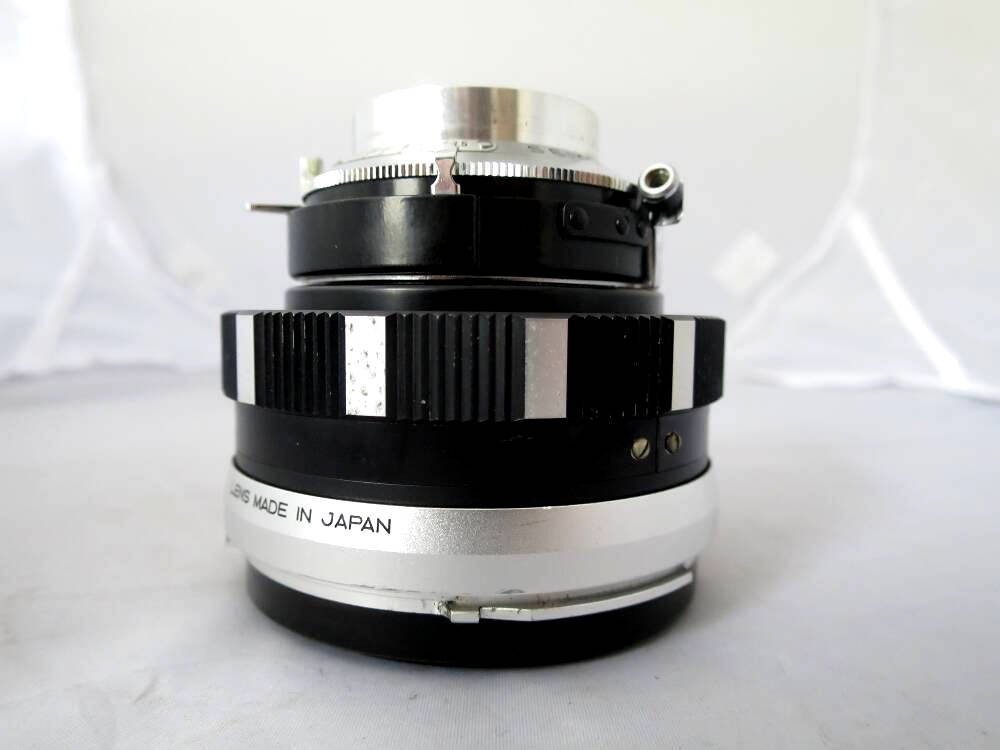

Lens extended.

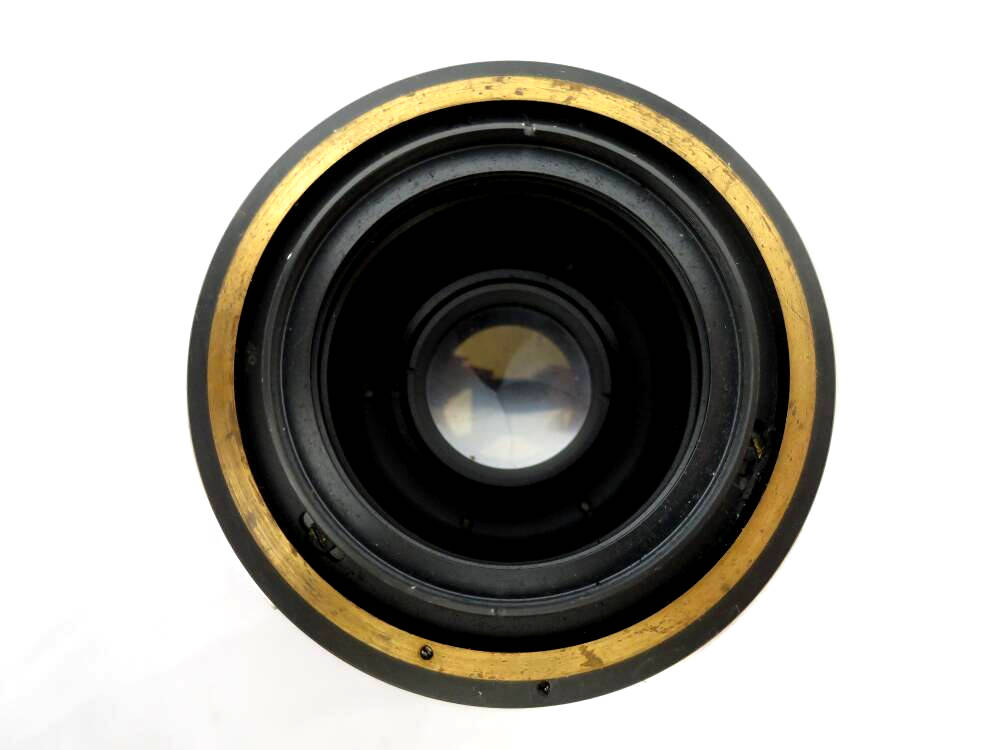

../jpgother/mamiya_uni_100mm_IMG_9188.JPG
Seen from the back.

This was THE standard lens for the Super 23 and Universal models. It's collapsible for the use with the bellows extension on the 23. A good, sharp and contrasty lens which continued the reputation of Mamiya medium format lenses. I own three of these, they all just cover Polaroid format. There are people who claim that it's not always the case. There is a F2.8 version, a nice lens, but it shows vignetting on Polaroid. 100mm is 42mm equivalent on 6x9 and 36mm equvalent on Polaroid.

127mm

../jpgother/mamiya_uni_127mm_IMG_5484.JPG
The lens, grom front.

../jpgother/mamiya_uni_127mm_IMG_5485.JPG

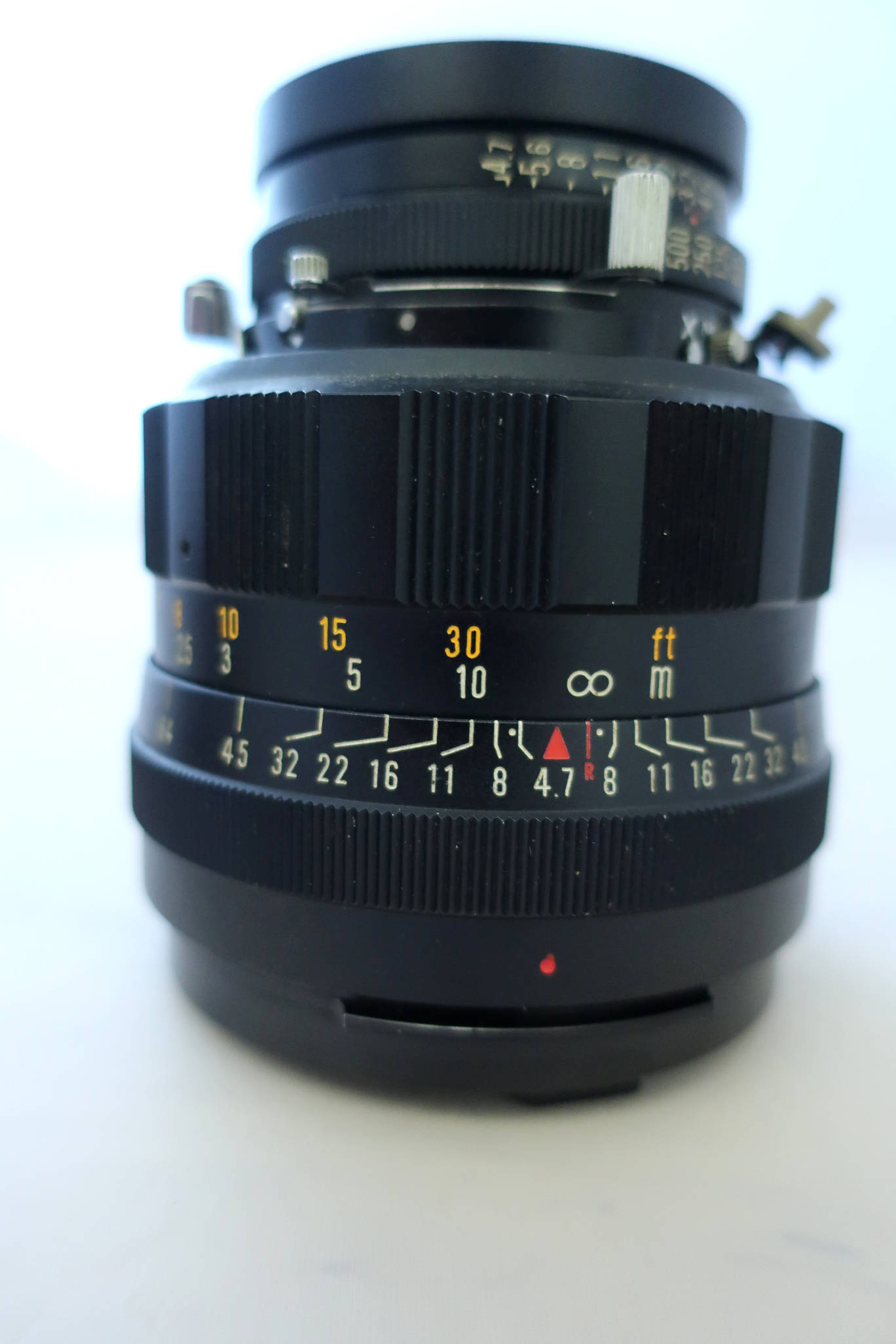

This is a bigger lens.

../jpgother/mamiya_uni_127mm_IMG_5483.JPG
Seen from the back.

This is the new standard lens which covers Polaroid format. For Polaroid it's 46mm 24x36mm equivalent, for 6x9 film it's 54mm. As usual, it's a good quality lens.

150mm

../jpgother/mamiya_uni_150mm_IMG_9249.JPG

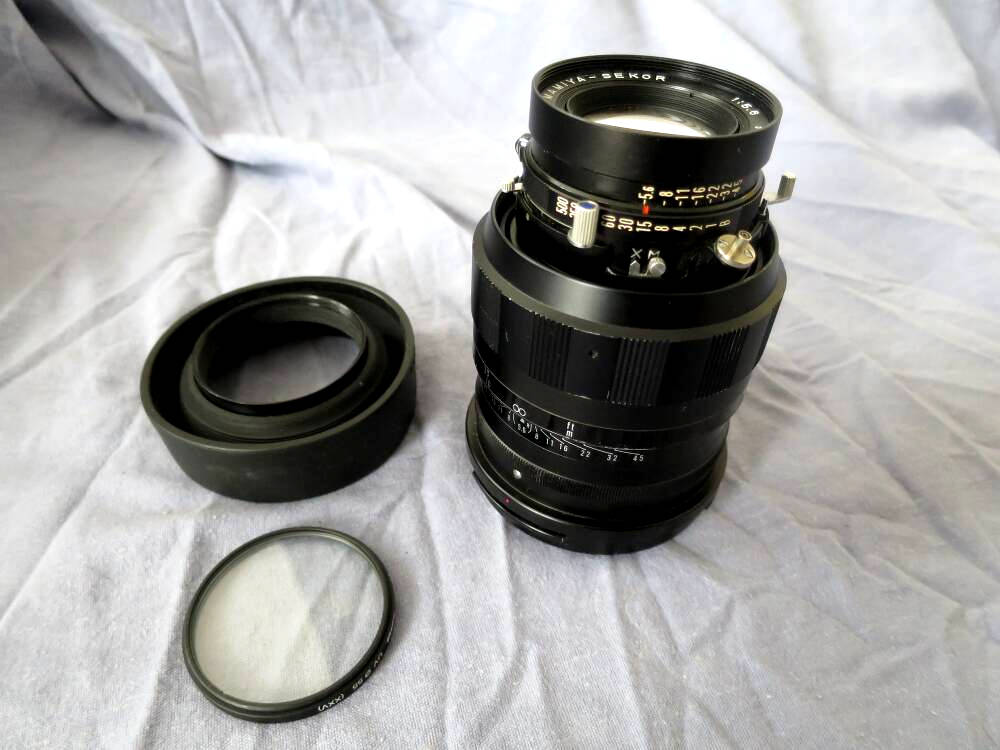

The lens, its hood and a filter.

../jpgother/mamiya_uni_150mm_IMG_9250.JPG

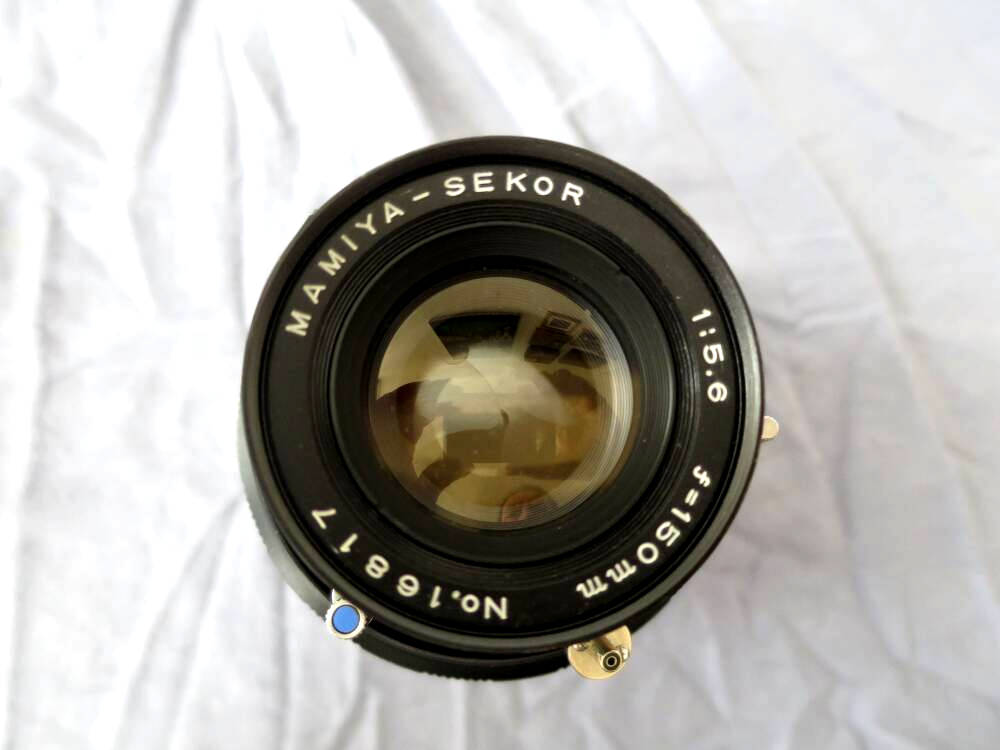

From front.

../jpgother/mamiya_uni_150mm_IMG_9253.JPG

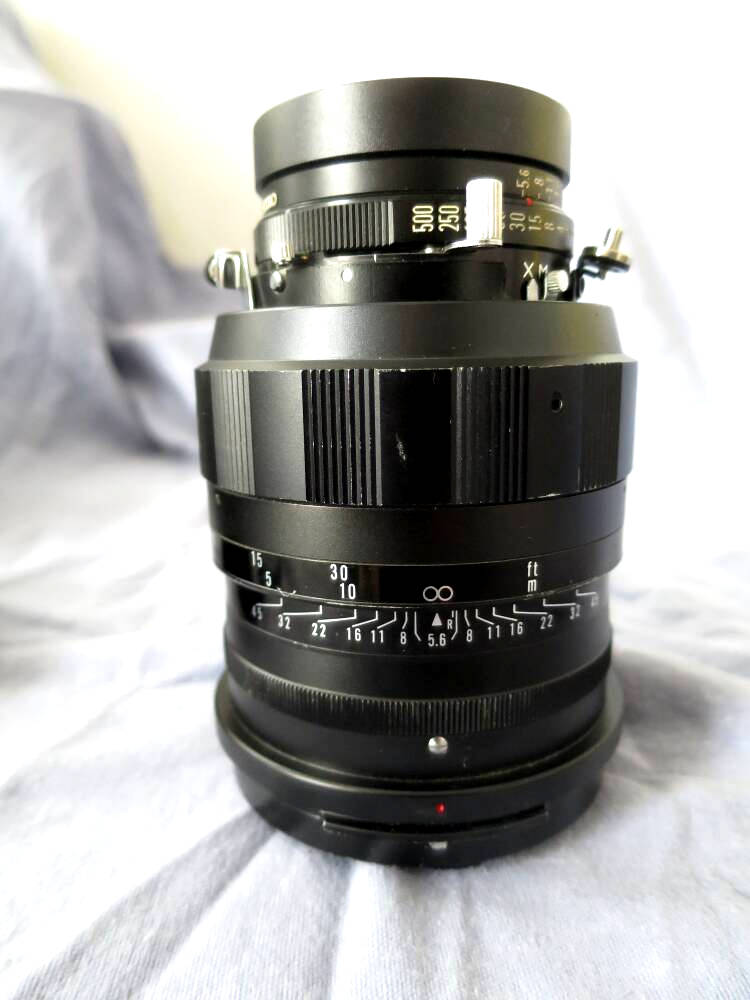

This is a longer lens.

../jpgother/mamiya_uni_150mm_IMG_9251.JPG
Seen from the back.

../jpgother/mamiya_uni_150mm_IMG_9254.JPG

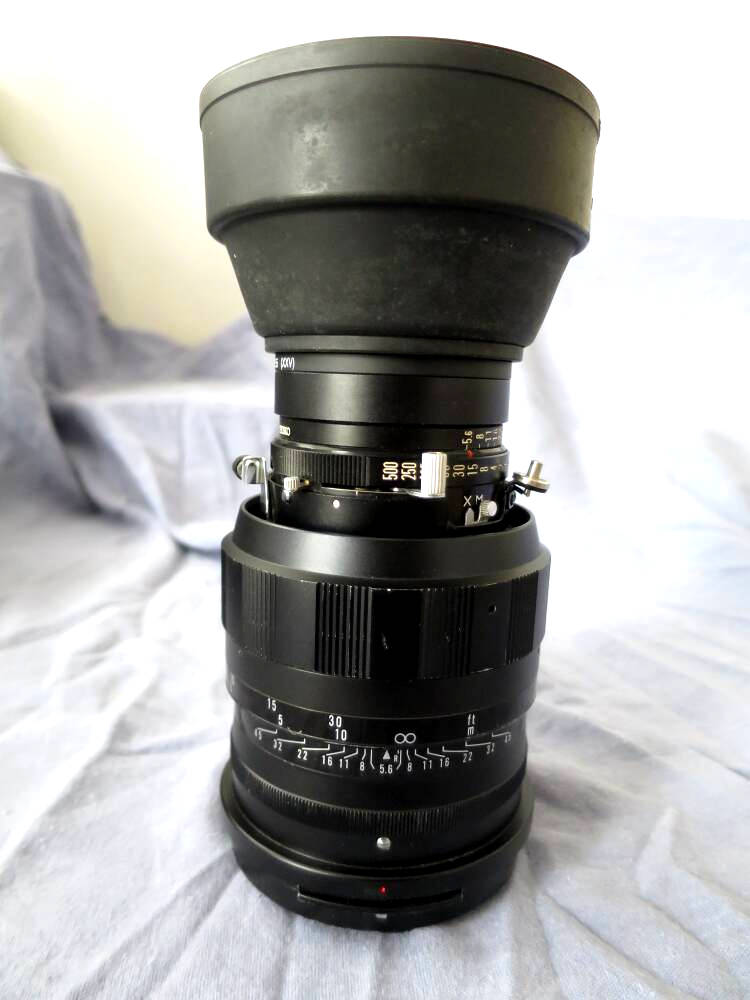

Lens with hood.

This lens construction dates from the beginning of the series, the lens shown is a newer one. It easily covers Polaroid format. In Polaroid it's 54mm equivalent, in 6x9 64mm. Nice and contraty, as all the others.


250mm

../jpgother/mamiya_uni_250mm_IMG_9226.JPG

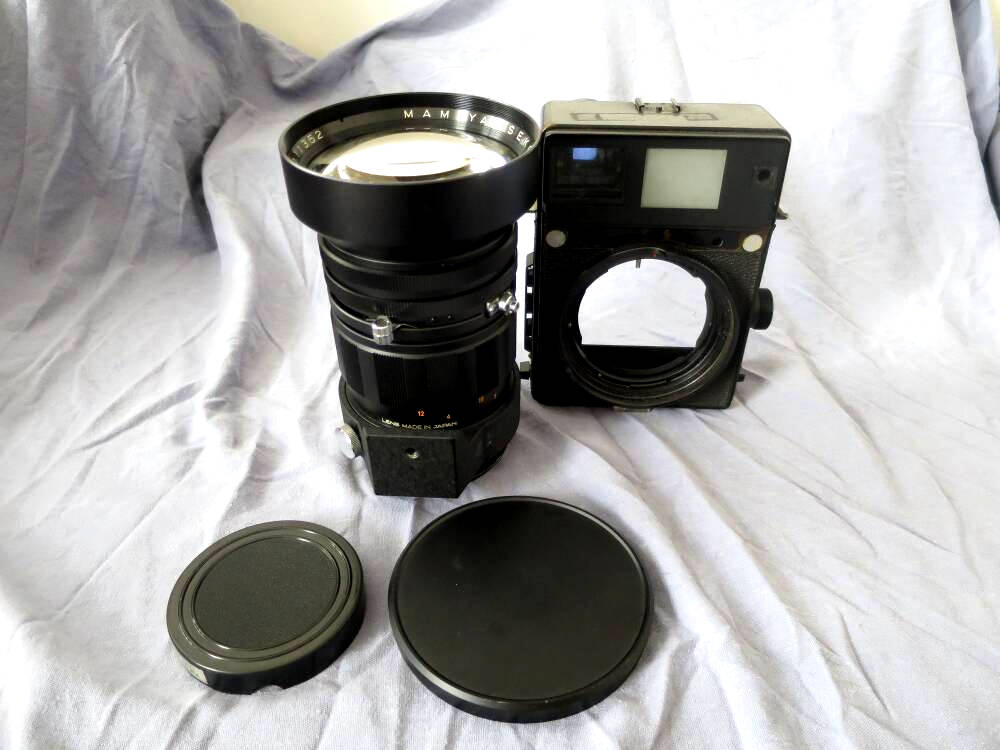

The lens, its caps and a Mamiya body for size comparison.

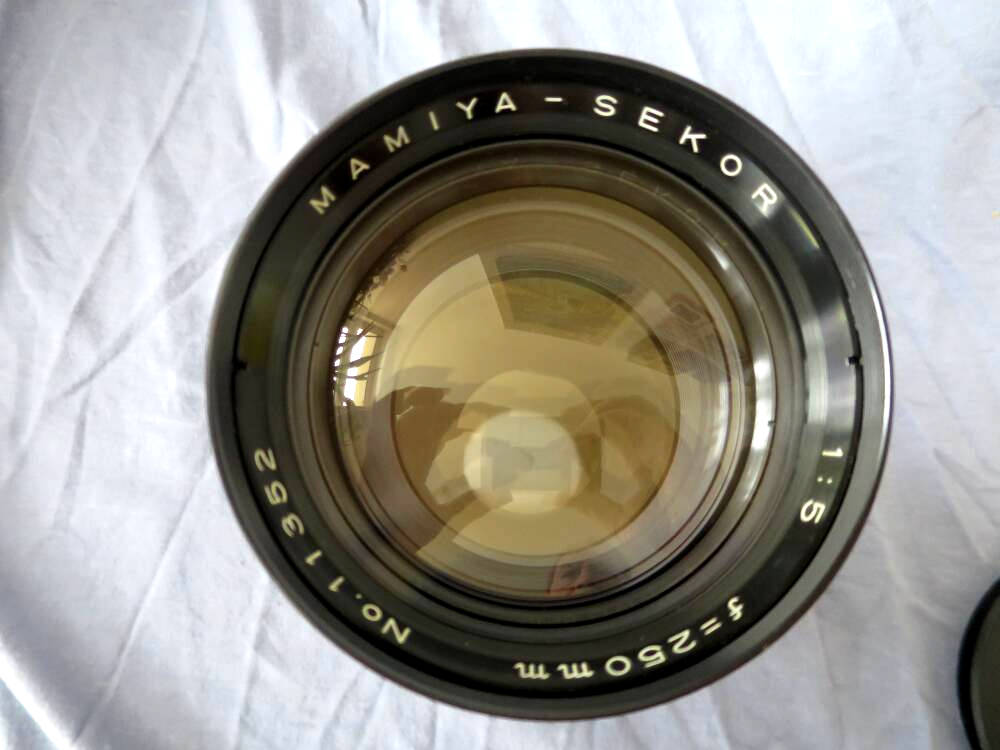

../jpgother/mamiya_uni_250mm_IMG_9219.JPG
From front.

../jpgother/mamiya_uni_250mm_IMG_9221.JPG

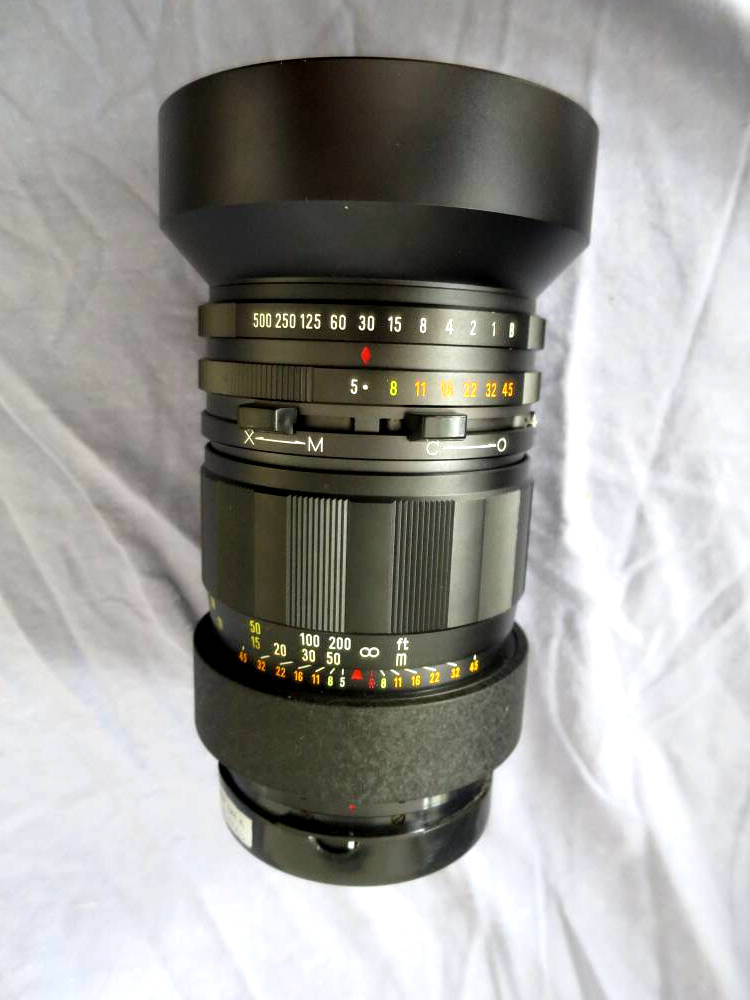

This is a big and massive lens.

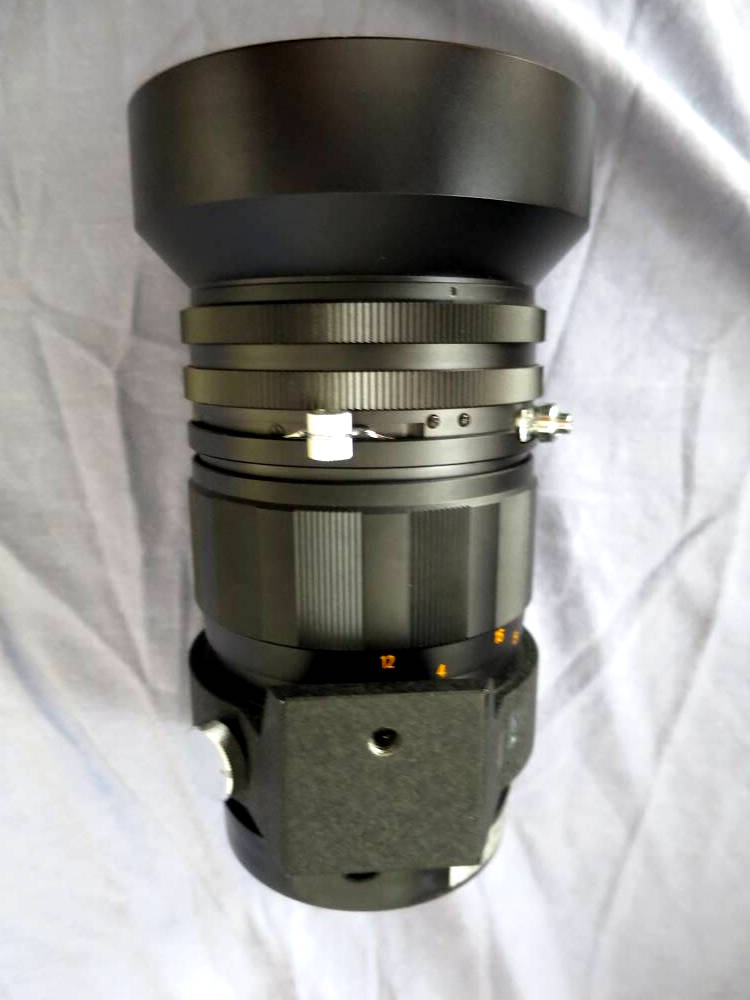

../jpgother/mamiya_uni_250mm_IMG_9222.JPG
As the lens is much heavier than the body, even with a back appached, the tripod socket is on the underside of the lens.

../jpgother/mamiya_uni_250mm_IMG_9223.JPG

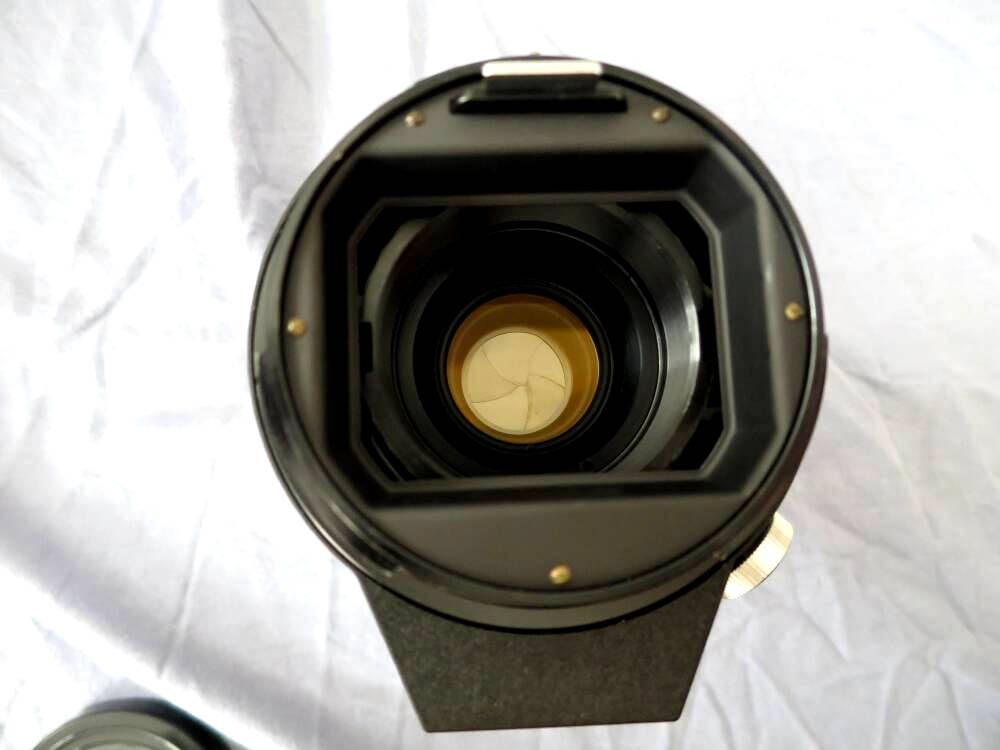

Seen from the back.

For its focal length, this is a luminous lens. But it's big and massive. In 6x9 format it's 107mm equivalent. It weighs more than 1.8kg. There was a F8 version, not coupled to the rangefinder which is not as heavy.


Extension rings

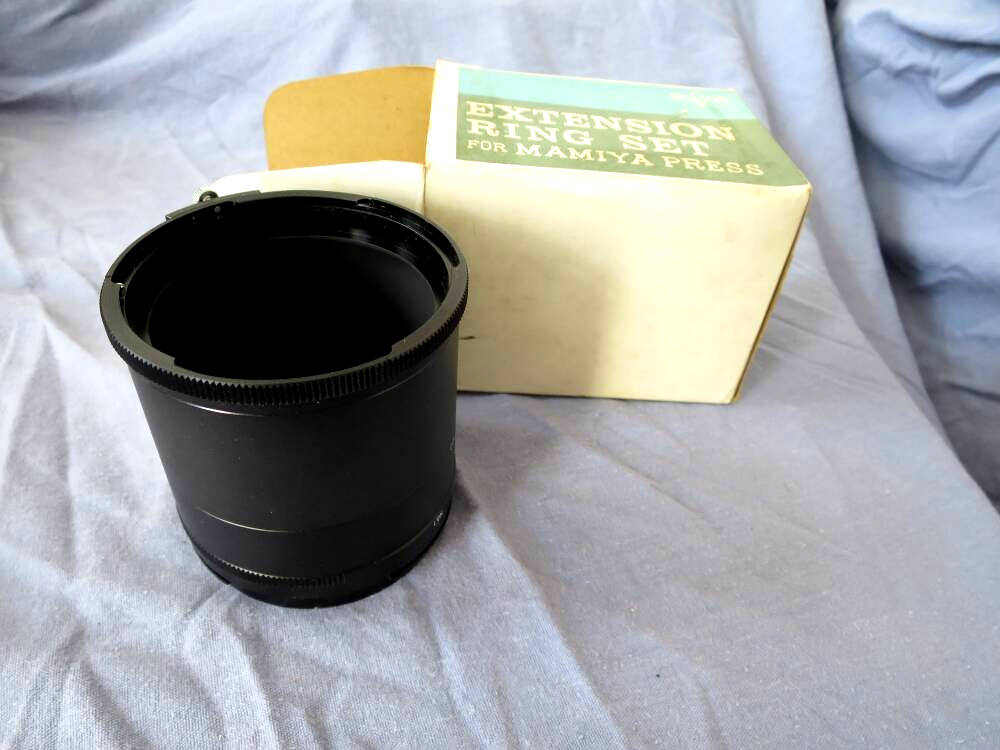

../jpgother/mamiya_extension_rings_IMG_9462.JPG
Extension rings and their original case.

../jpgother/mamiya_extension_rings_IMG_9463.JPG

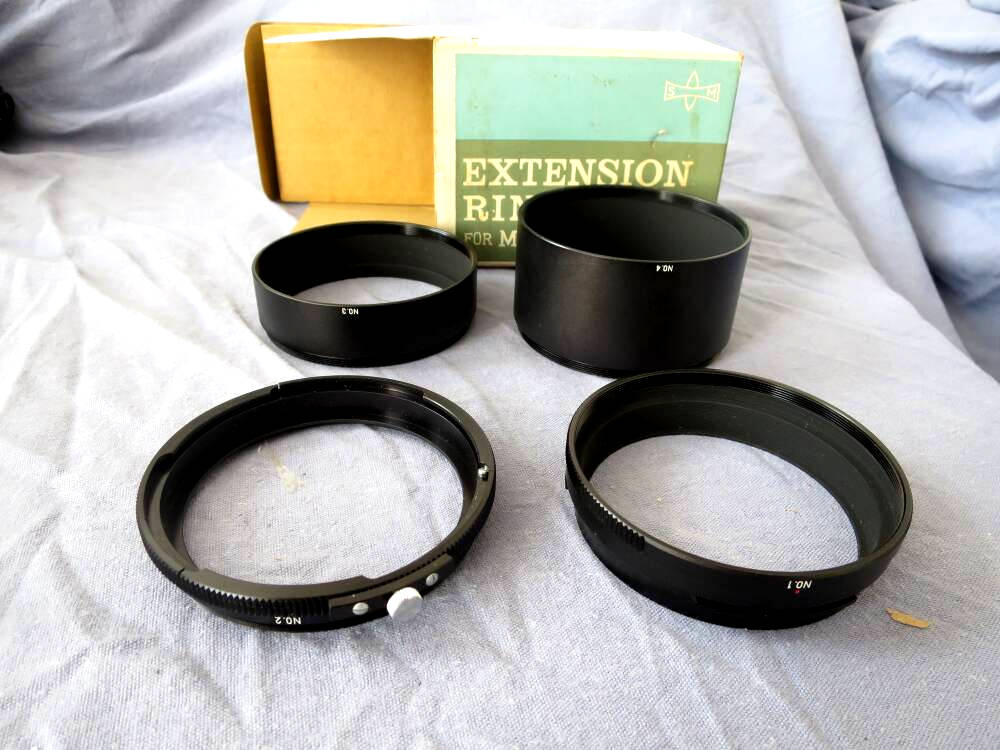

The set contains no. 1 which attaches to the camera,
the no. 2 which holds the lens and the extensions no. 3 and no. 4 to screw in between. There is an extra no. 5, slightly longer than no. 3 which was included in later sets.

../jpgother/mamiya_extension_rings_IMG_9464.JPG

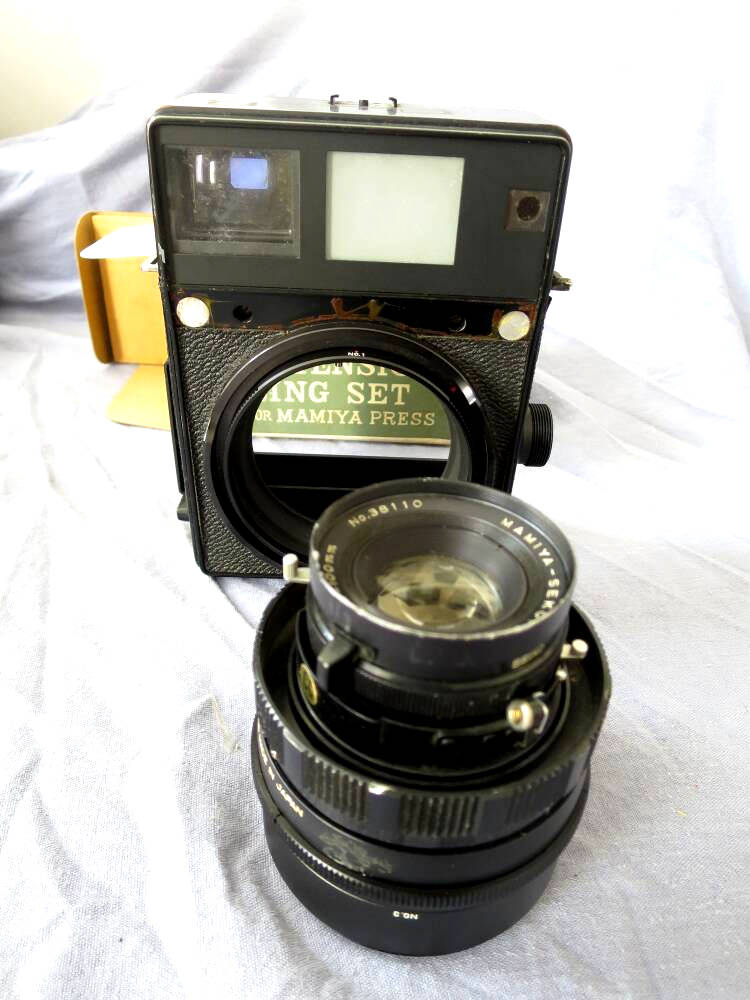

No. 1 attached to the camera, nos. 2 and 3 attached to the lens.

../jpgother/mamiya_extension_rings_IMG_9465.JPG

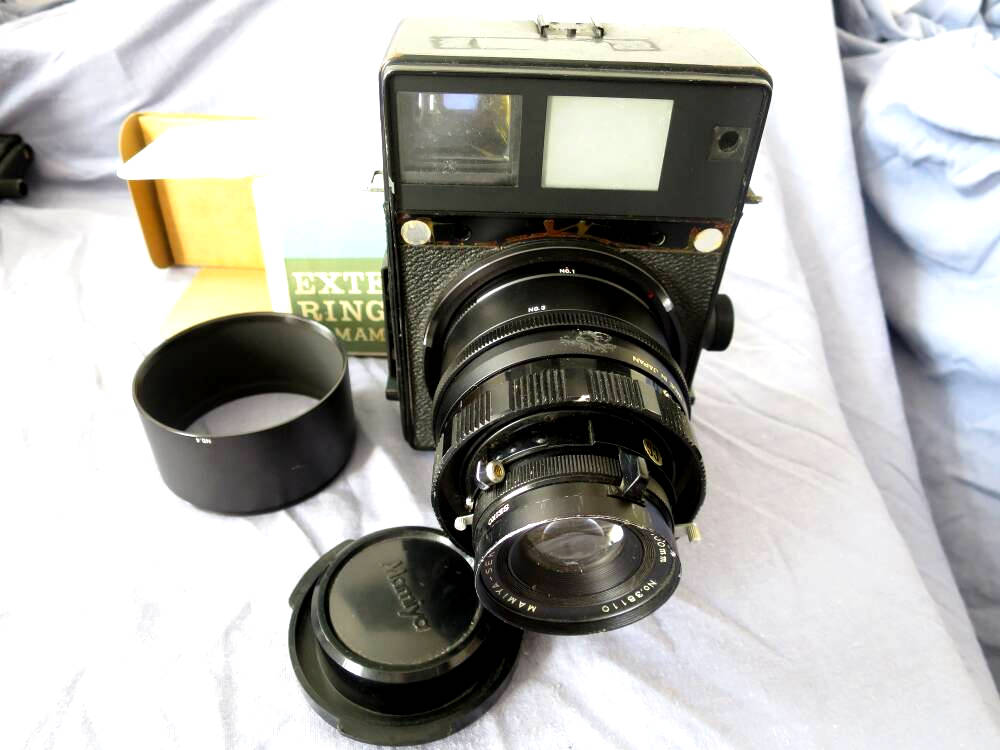

Everything screwed together.

The extensins rings are a nice and easy accessory for macro photography. You will a ground glass to set focus.


Polaroid splitters

There are two different splitters to take passport photographs on Polaroid film. There is the Standard Tetraphoto Attachment, which takes 4 identical small standard passport photos on one sheet of Polaroid or Fuji Pack 100 film. And there is a Duophoto Attachment for 2  bigger photos on one sheet. Both attach to the 127mm lens.

../jpgother/mamiya_duo_tetra_IMG_9380.JPG

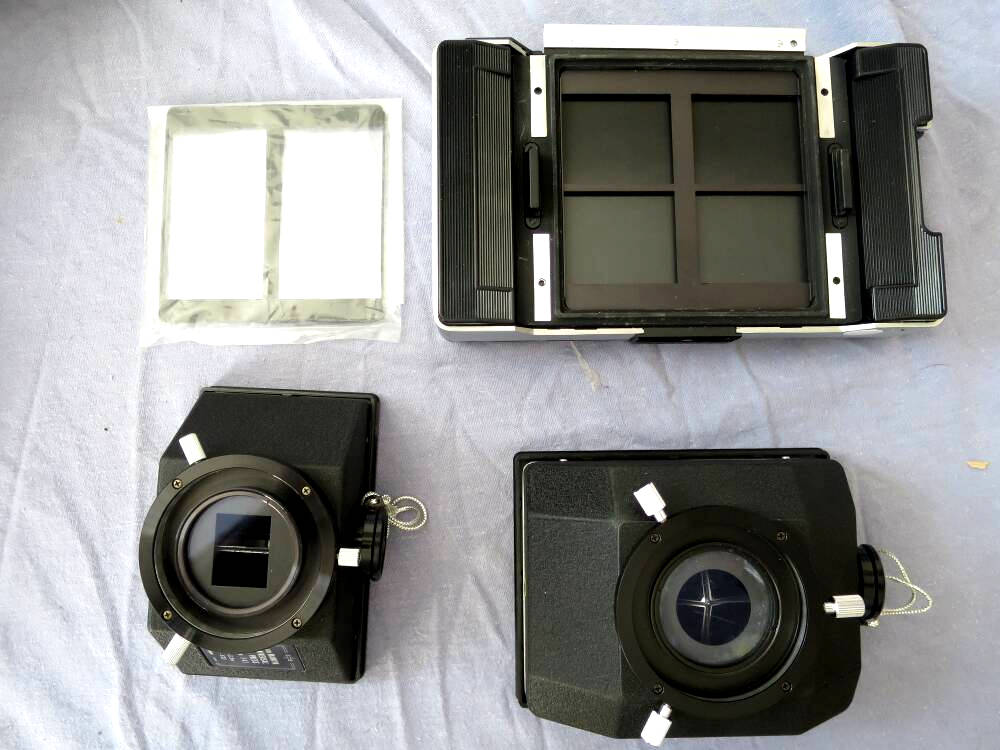

Both splitters, both masks and the special Polaroid back.

../jpgother/mamiya_tetra_adapt_IMG_9384.JPG
Thw Tetraphoto Attachment and its case.

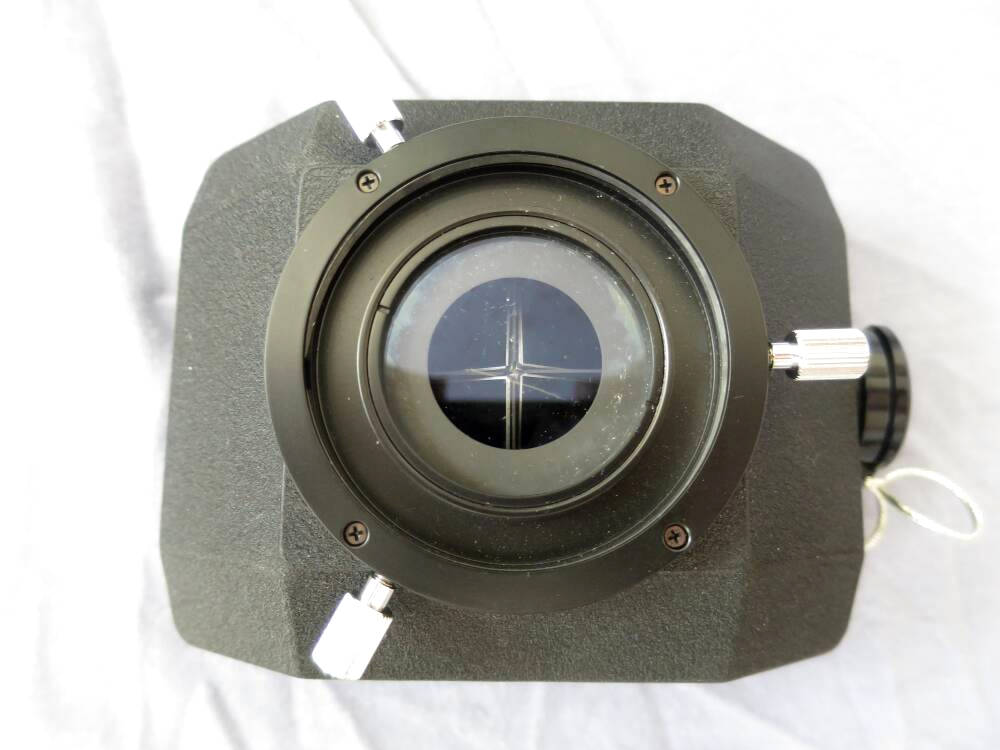

../jpgother/mamiya_tetra_adapt_IMG_9384.JPG
Seen from the mount side.

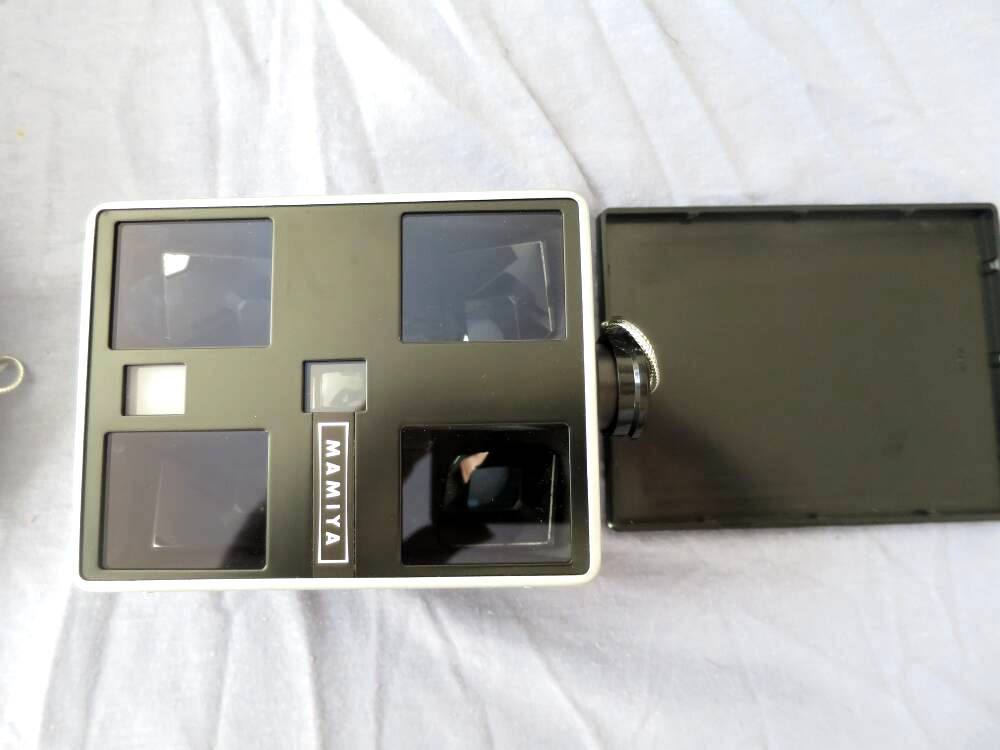

../jpgother/mamiya_tetra_adapt_IMG_9386.JPG
Seen from front, cap open.

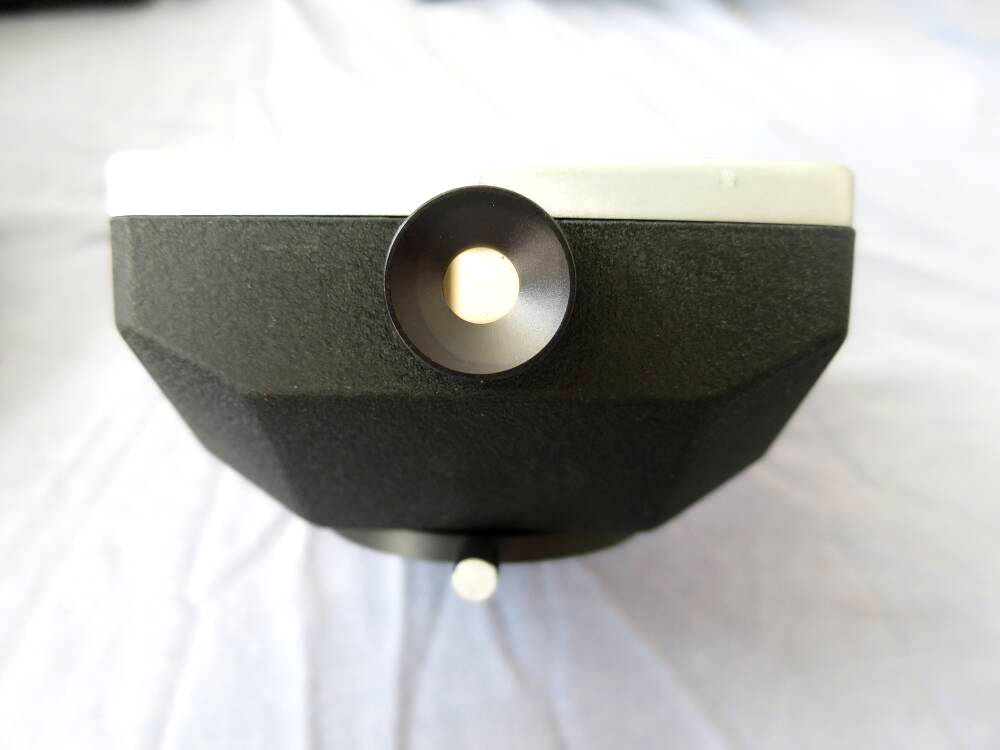

../jpgother/mamiya_tetra_adapt_IMG_9387.JPG
Viewer side.

../jpgother/mamiya_tetra_adapt_IMG_9390.JPG
Mounted. To put this combination on a tripod, you have to take off the grip and put the tripod fixation instead.

Both splitters need a special Polaroid back and a mask.

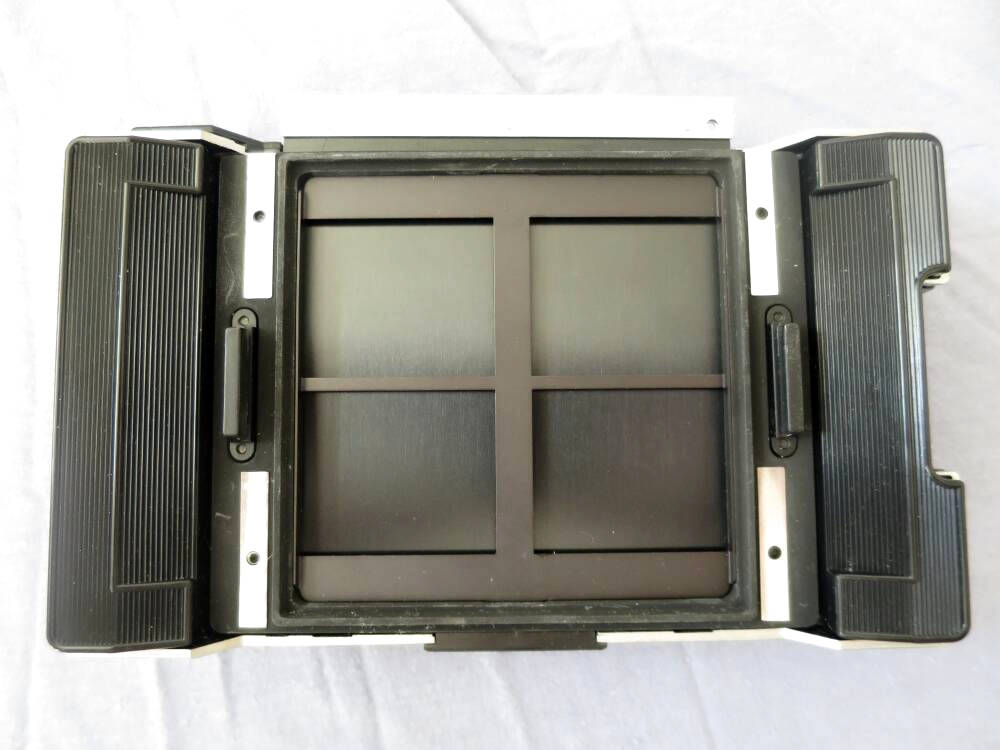

../jpgother/mamiya_tetra_back_IMG_9382.JPG
The Polaroid back with the Tetraphoto mask installed.

../jpgother/mamiya_tetra_back_IMG_9383.JPG

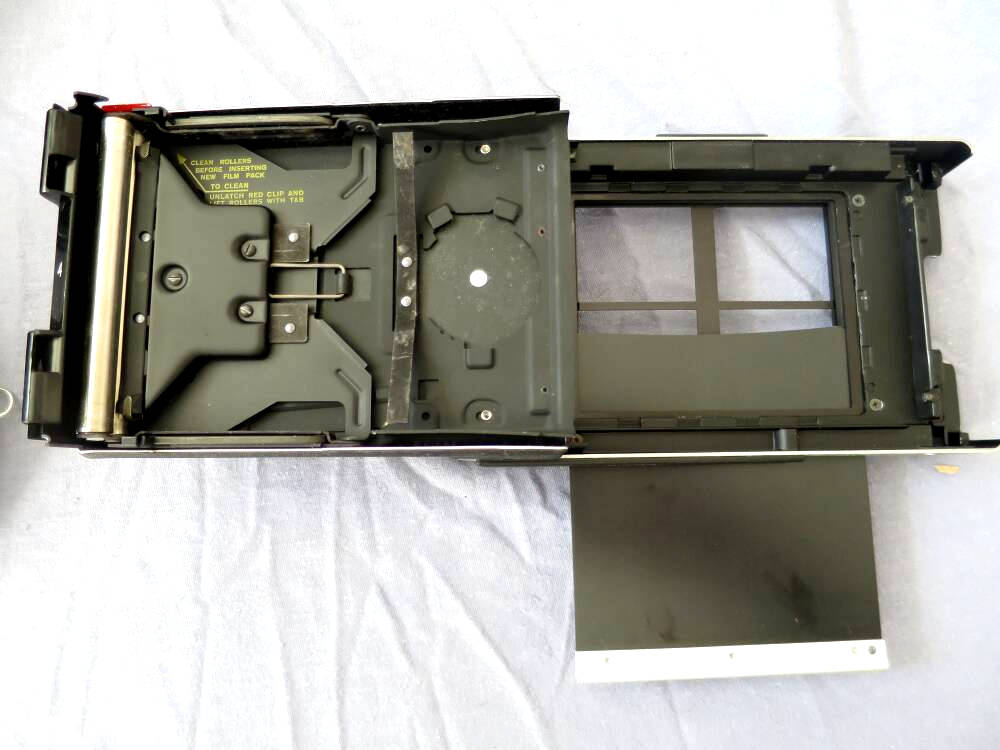

Back open, dark slide half open.

../jpgother/mamiya_duo_adapt_IMG_9393.JPG

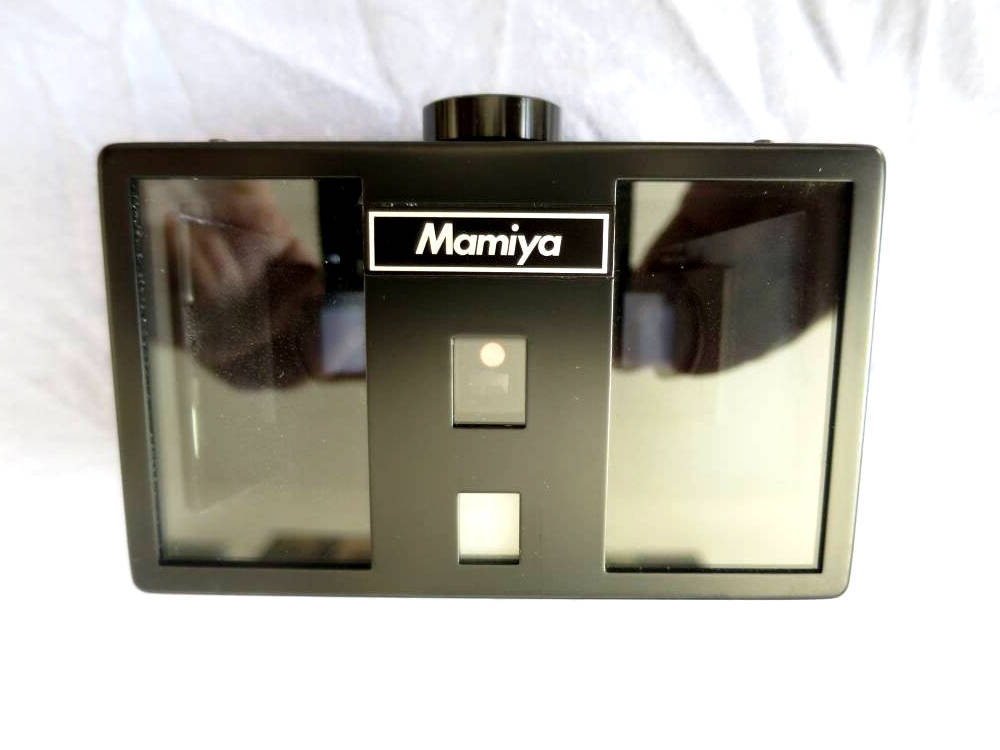

The Duophoto adapter.

../jpgother/mamiya_duo_adapt_IMG_9394.JPG

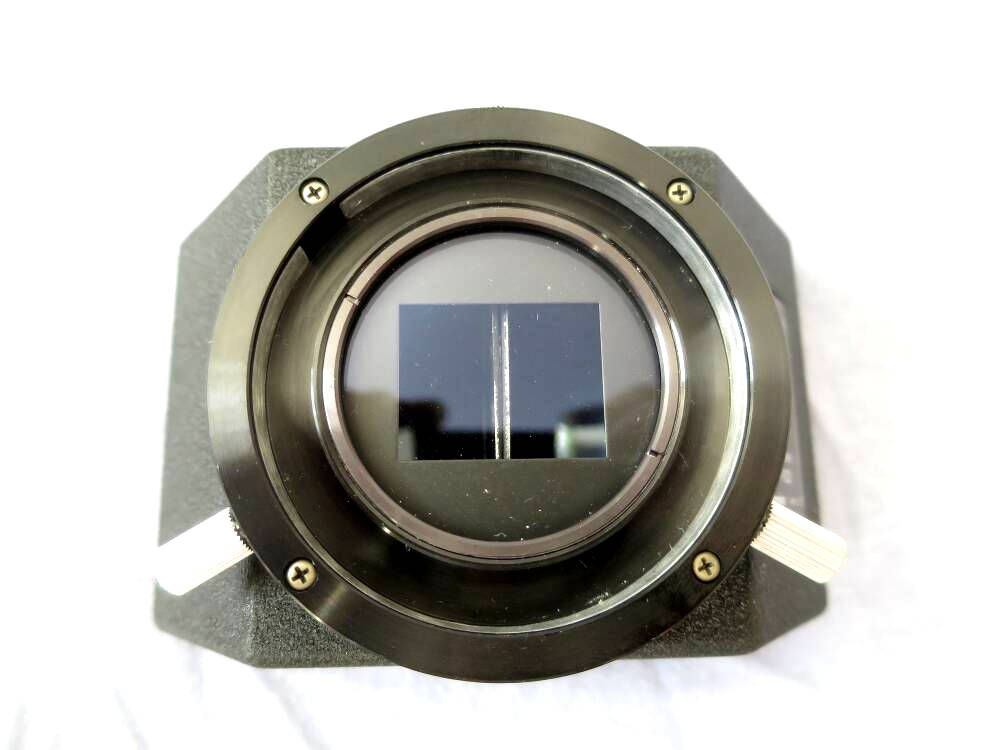

Seen from the mount side.

../jpgother/mamiya_duo_adapt_IMG_9396.JPG

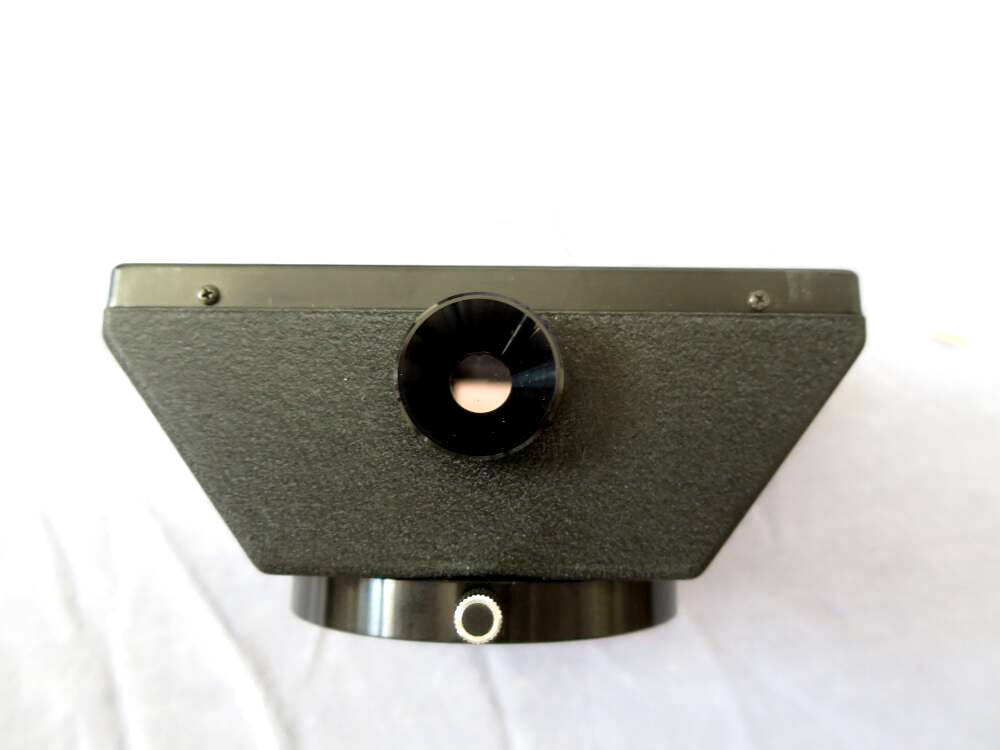

Viewer side.

../jpgother/mamiya_duo_adapt_IMG_9395.JPG

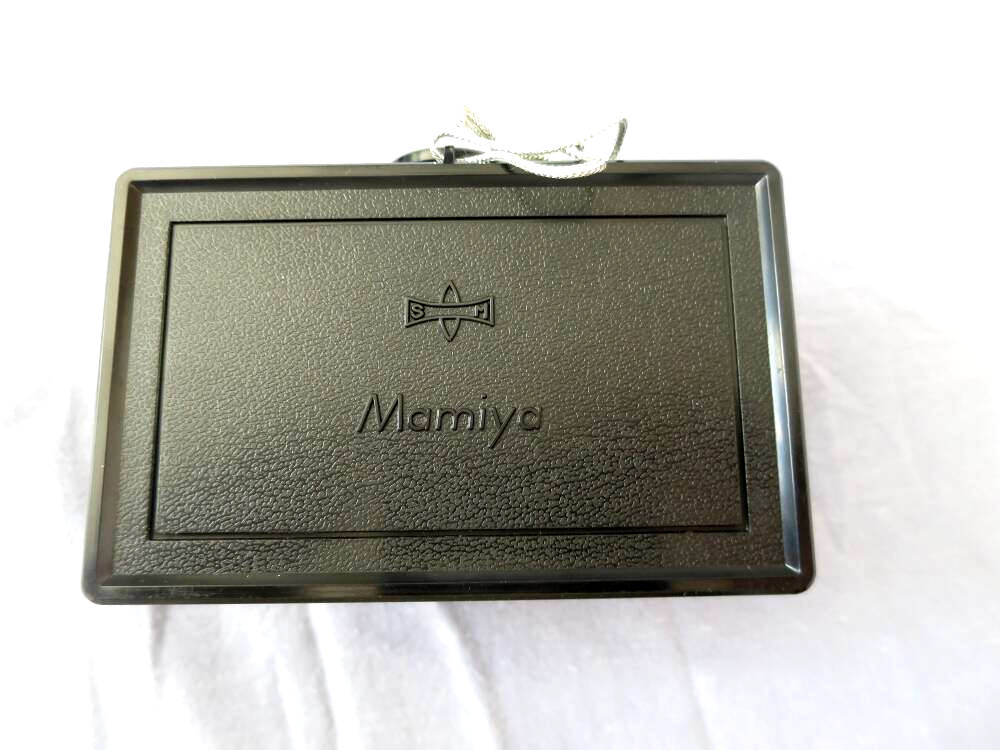

Cap on.

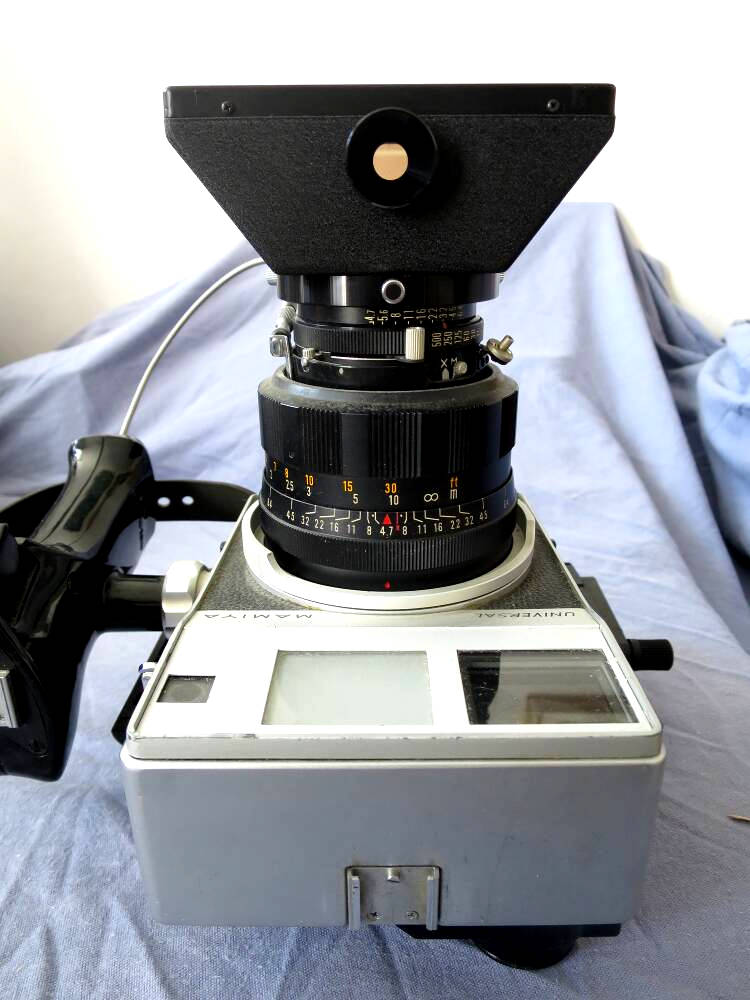

../jpgother/mamiya_duo_adapt_IMG_9391.JPG
Mounted. The camera can be put on a trpod the ordinary way.
